CT199V-DXMDE (1998)

Toyota Caldina

Production May 1998 - Jun 2002
Engine 3CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )3CE..CT199

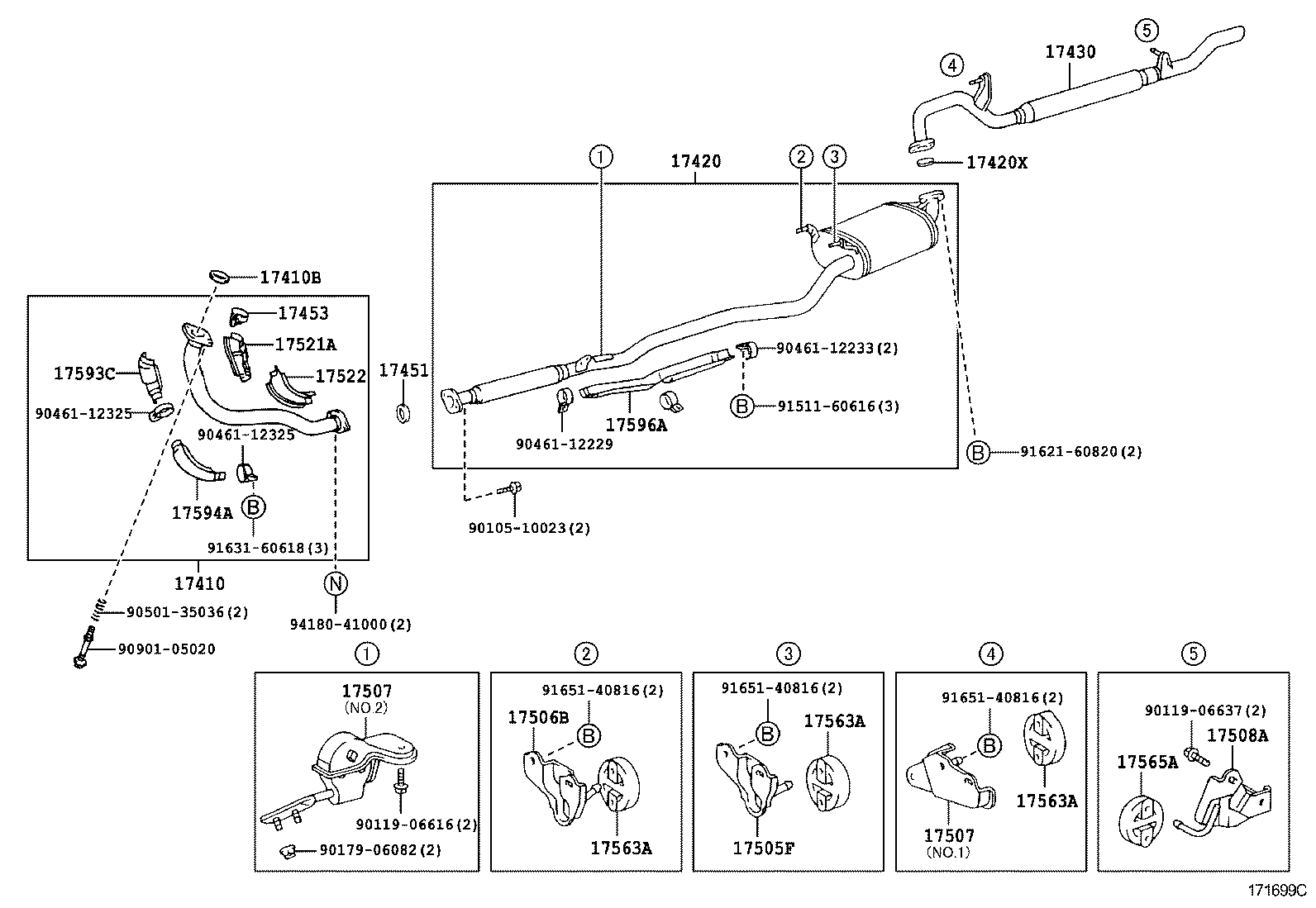

Click highlighted areas on diagram

diagram 17410 17410B 17420 17420X 17430 17451 17453 17505F 17506B 17507 17507 17508A 17521A 17522 17563A 17563A 17563A 17565A 17593C 17594A 17596A 9010510023 9011906616 9011906637 9017906082 9046112229 9046112233 9046112325 9046112325 9050135036 9090105020 9151160616 9162160820 9163160618 9165140816 9165140816 9165140816 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64680

3CE..CT199

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-64190

2C,3CE..CT198,199

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06039

2C,3CE,5EFE,3SFE..CT196,197,198,199,ET196,ST198

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-64800

2C,3CE..CT198,199

 1
17451 - GASKET, EXHAUST PIPE
90917-06048

2C#,3CE..CT190,196,198,199

 1
17505F - SUPPORT SUB-ASSY, EXHAUST PIPE
17505-64060

2C,3CE,3SFE..CT198,199,ST198

 1
17506B - BRACKET SUB-ASSY, EXHAUST PIPE SUPPORT
17506-64020

2C,3CE,3SFE..CT198,199,ST198

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-64050

3CE..CT199

NO.2

 1
17507-11050

3CE..CT19#

NO.1

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-64050

3CE..CT199

NO.2

 1
17507-11050

3CE..CT19#

NO.1

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-64050

2C,3CE,3SFE..CT198,199,ST198

 1
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-64140

3CE..CT199

 1
17522 - PROTECTOR, EXHAUST PIPE, UPPER NO.2
17522-64090

3CE..CT199

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15140

2C,3CE,5EFE,3SFE..CT196,198,199,ET196,ST198

 3
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15140

2C,3CE,5EFE,3SFE..CT196,198,199,ET196,ST198

 3
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15140

2C,3CE,5EFE,3SFE..CT196,198,199,ET196,ST198

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-11160

2C,3CE,3SFE..CT198,199,ST198

 1
17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1
17593-64130

3CE..CT199

 1
17594A - PROTECTOR, EXHAUST PIPE, LOWER NO.2
17594-64040

3CE..CT199

 1
17596A - PROTECTOR, EXHAUST PIPE, LOWER NO.4
17596-64010

2C,3CE..CT198,199

 1
Common parts
90105-10023
90119-06616
90119-06637
90179-06082
90461-12229
90461-12233
90461-12325
90501-35036
90901-05020
91511-60616
91621-60820
91631-60618
91651-40816
94180-41000
