CT199V-DXMDE (1998)

Toyota Caldina

Production May 1998 - Jun 2002
Engine 3CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )3CE..CT199

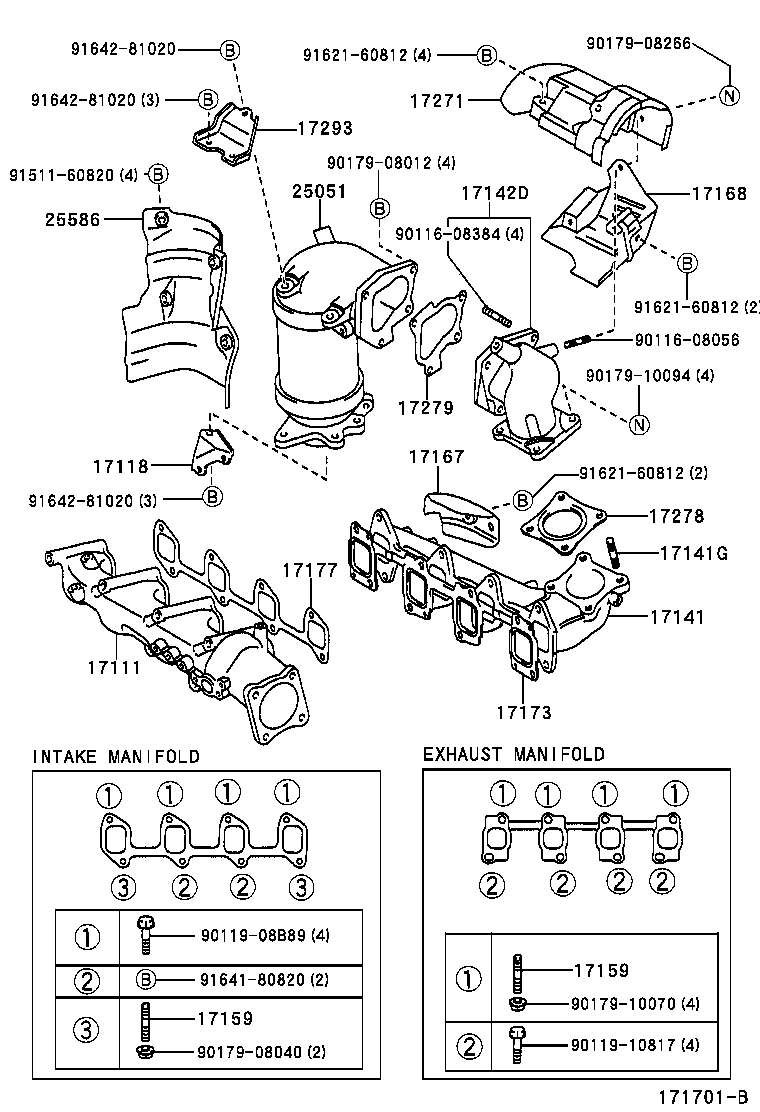

Click highlighted areas on diagram

diagram 17111 17118 17141 17141G 17142D 17159 17159 17167 17168 17173 17177 17271 17278 17279 17293 25051 25586 9011608056 9011608384 9011908B89 9011910817 9017908012 9017908040 9017908266 9017910070 9017910094 9151160820 9162160812 9162160812 9162160812 9164180820 9164281020 9164281020 9164281020
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-64290

3CE..CT19#

 1
17142D - MANIFOLD, EXHAUST, NO.2
17150-64010

3CE..CT199

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60820

2C#,3CE..CT19#

NO.2

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60820

2C#,3CE..CT19#

NO.2

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-64020

2C#,3CE..CT19#

 1
17271 - INSULATOR, TURBO, NO.1
17271-64080

3CE..CT199

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-64031

3CE..CT199

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-64020

3CE..CT199

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-64020

3CE..CT199

 1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-64020

3CE..CT199

 1
Common parts
90116-08056
90116-08384
90119-08B89
90119-10817
90179-08012
90179-08040
90179-08266
90179-10070
90179-10094
91511-60820
91621-60812
91641-80820
91642-81020
