CT198V-DXMNS (1992)
Toyota Caldina

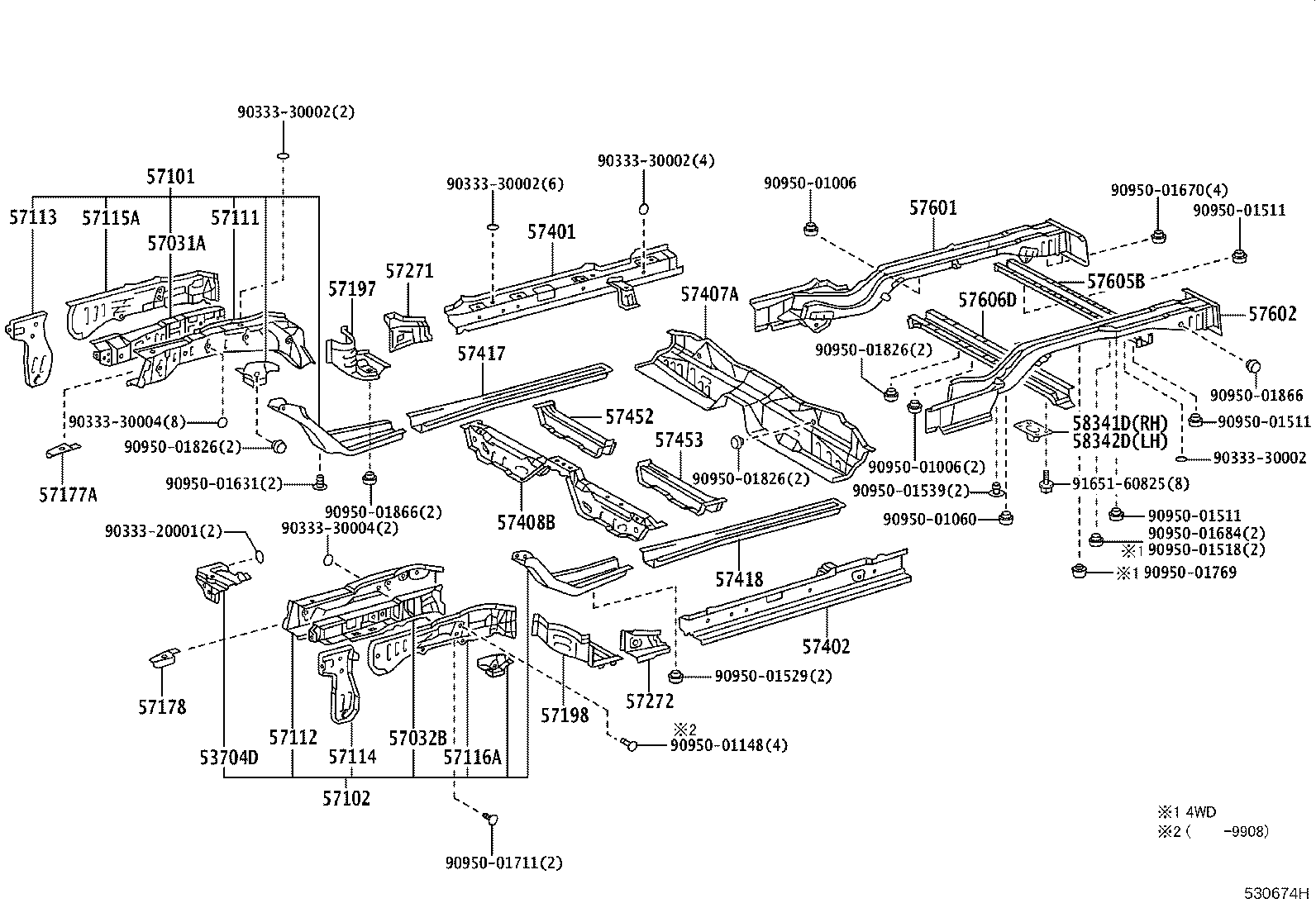

(9211-9601)CT196,198,ET196
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53704D - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-20010 |
CT19#,ET196,ST19# |
1 | ||
| 53771-20090 |
CT19# |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-20915 |
CT19#,ET196,ST19# |
1 | ||
| 57101-20940 |
CT19#,ET196,ST19# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-20923 |
CT19# |
1 | ||
| 57102-20914 |
CT198,ST195 |
1 | ||
| 57102-20937 |
CT19# |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-20220 |
CT19#,ET196,ST19# |
1 | ||
| 57111-20280 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57111-20260 |
CT19#,ET196,ST19# |
1 | ||
| 57111-20250 |
CT19#,ET196,ST198 |
1 | ||
| 57111-20250 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-20240 |
CT19#,ET196,ST19# |
1 | ||
| 57112-20270 |
CT19#,ET196,ST19# |
1 | ||
| 57112-20261 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57112-20260 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-20150 |
CT19#,ET196,ST19# |
1 | ||
| 57113-20151 |
CT19#,ET196,ST19# |
1 | ||
| 57113-20180 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-20121 |
CT19#,ET196,ST19# |
1 | ||
| 57114-20160 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57114-20120 |
CT19#,ET196,ST19# |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-20160 |
CT19#,ET196,ST19# |
1 | ||
| 57115-20150 |
CT19#,ET196,ST19# |
1 | ||
| 57115-20180 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-20181 |
CT19#,ET196,ST19# |
1 | ||
| 57116-20170 |
CT19#,ET196,ST19# |
1 | ||
| 57116-20200 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57177A - PLATE, FRONT SIDE MEMBER, NO.7 RH | ||||
| 57177-20060 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57177-20080 |
CT19#,ET196,ST19# |
1 | ||
| 57178 - PLATE, FRONT SIDE MEMBER, NO.7 LH | ||||
| 57177-20060 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57178-20070 |
CT19#,ET196,ST19# |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-20040 |
CT19#,ET196,ST19# |
1 | ||
| 57197-20070 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-20080 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57198-20050 |
CT19#,ET196,ST19# |
1 | ||
| 57271 - EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH | ||||
| 57271-20041 |
CT19#,ET196,ST19# |
1 | ||
| 57271-20050 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57271-20040 |
CT19#,ET196,ST19# |
1 | ||
| 57272 - EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH | ||||
| 57272-20040 |
CT19#,ET196,ST19# |
1 | ||
| 57272-20041 |
CT19#,ET196,ST19# |
1 | ||
| 57272-20050 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-20280 |
CT19#,ET196,ST19# |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-20310 |
CT19#,ET196,ST19# |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-21030 |
CT198,199,ST198 |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-20080 |
CT19#,ET196,ST19# |
1 | ||
| 57417-20100 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-20070 |
CT19#,ET196,ST19# |
1 | ||
| 57418-20100 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57408-20900 |
CT19#,ET196,ST19# |
1 | ||
| 57408-20900 |
CT19#,ET196,ST19# |
1 | ||
| 57475 - PLATE, FRONT FLOOR CROSSMEMBER | ||||
| 57475-32010 |
CT19#,ET196,ST19# |
2 | ||
| 57475-32010 |
CT19#,ET196,ST19# |
2 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-21040 |
CT198 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-21040 |
CT198 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-13040 |
CT198,199,ST198 |
1 | ||
| 57606D - MEMBER SUB-ASSY, REAR ABSORBER MOUNTING | ||||
| 57606-21040 |
CT198,199,ST198 |
1 | ||
| 58341D - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH | ||||
| 58341-13030 |
CT196,197,198,199,ET196,ST198 |
1 | ||
| 58342D - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH | ||||
| 58342-13030 |
CT196,197,198,199,ET196,ST198 |
1 | ||
| Common parts | ||||
| 90179-06060 | ||||
| 90333-30002 | ||||
| 90333-30004 | ||||
| 90950-01006 | ||||
| 90950-01060 | ||||
| 90950-01148 | ||||
| 90950-01392 | ||||
| 90950-01511 | ||||
| 90950-01518 | ||||
| 90950-01539 | ||||
| 90950-01631 | ||||
| 90950-01670 | ||||
| 90950-01684 | ||||
| 90950-01711 | ||||
| 90950-01769 | ||||
| 90950-01826 | ||||
| 90950-01839 | ||||
| 91651-60825 | ||||

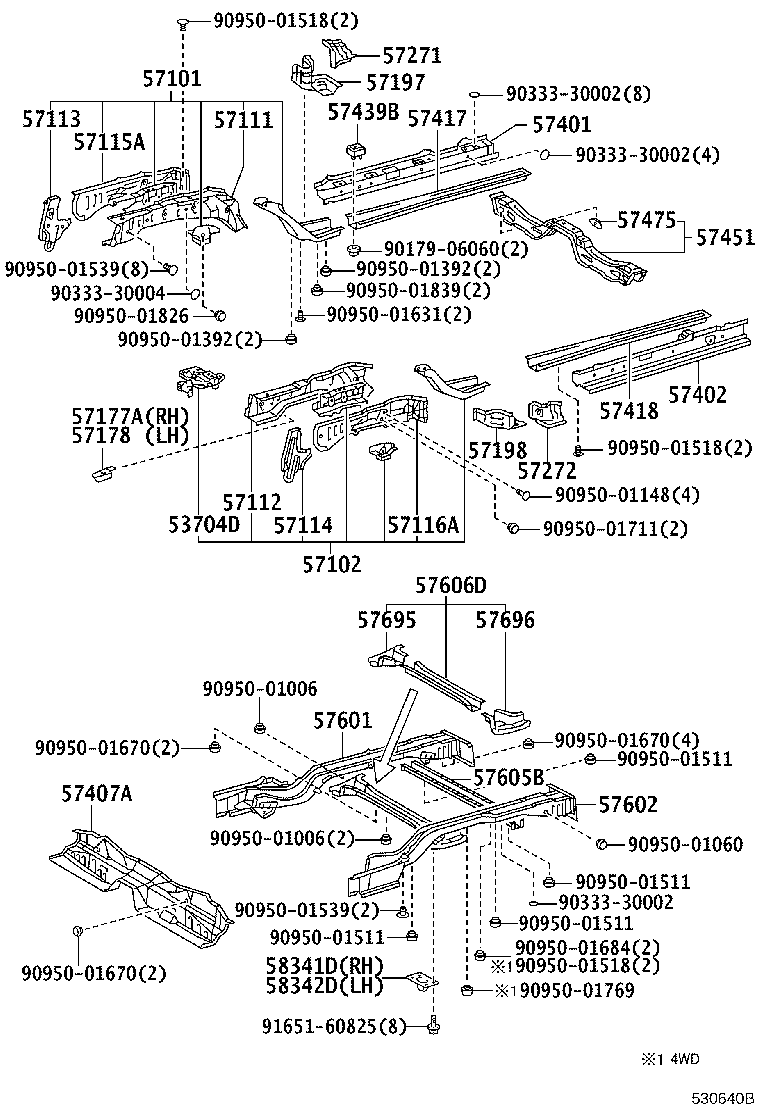

(9601- )CT196,197,198,199,ET196,ST198
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53704D - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-20010 |
CT19#,ET196,ST19# |
1 | ||
| 53771-20090 |
CT19# |
1 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57031-20050 |
CT19#,ET196,ST19# |
1 | ||
| 57031-20051 |
CT19#,ET196,ST19# |
1 | ||
| 57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57032-20030 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57032-20032 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57032-20031 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-20915 |
CT19#,ET196,ST19# |
1 | ||
| 57101-20940 |
CT19#,ET196,ST19# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-20923 |
CT19# |
1 | ||
| 57102-20914 |
CT198,ST195 |
1 | ||
| 57102-20937 |
CT19# |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-20220 |
CT19#,ET196,ST19# |
1 | ||
| 57111-20280 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57111-20260 |
CT19#,ET196,ST19# |
1 | ||
| 57111-20250 |
CT19#,ET196,ST198 |
1 | ||
| 57111-20250 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-20240 |
CT19#,ET196,ST19# |
1 | ||
| 57112-20270 |
CT19#,ET196,ST19# |
1 | ||
| 57112-20261 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57112-20260 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-20150 |
CT19#,ET196,ST19# |
1 | ||
| 57113-20151 |
CT19#,ET196,ST19# |
1 | ||
| 57113-20180 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-20121 |
CT19#,ET196,ST19# |
1 | ||
| 57114-20160 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57114-20120 |
CT19#,ET196,ST19# |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-20160 |
CT19#,ET196,ST19# |
1 | ||
| 57115-20150 |
CT19#,ET196,ST19# |
1 | ||
| 57115-20180 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-20181 |
CT19#,ET196,ST19# |
1 | ||
| 57116-20170 |
CT19#,ET196,ST19# |
1 | ||
| 57116-20200 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57177A - PLATE, FRONT SIDE MEMBER, NO.7 RH | ||||
| 57177-20060 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57177-20080 |
CT19#,ET196,ST19# |
1 | ||
| 57178 - PLATE, FRONT SIDE MEMBER, NO.7 LH | ||||
| 57177-20060 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57178-20070 |
CT19#,ET196,ST19# |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-20040 |
CT19#,ET196,ST19# |
1 | ||
| 57197-20070 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-20080 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57198-20050 |
CT19#,ET196,ST19# |
1 | ||
| 57271 - EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH | ||||
| 57271-20041 |
CT19#,ET196,ST19# |
1 | ||
| 57271-20050 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57271-20040 |
CT19#,ET196,ST19# |
1 | ||
| 57272 - EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH | ||||
| 57272-20040 |
CT19#,ET196,ST19# |
1 | ||
| 57272-20041 |
CT19#,ET196,ST19# |
1 | ||
| 57272-20050 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-20280 |
CT19#,ET196,ST19# |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-20310 |
CT19#,ET196,ST19# |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-21030 |
CT198,199,ST198 |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-20130 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-20080 |
CT19#,ET196,ST19# |
1 | ||
| 57417-20100 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-20070 |
CT19#,ET196,ST19# |
1 | ||
| 57418-20100 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57452 - MEMBER, FRONT FLOOR CROSS, LH | ||||
| 57452-20060 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57453 - MEMBER, FRONT FLOOR CROSS, NO.3 | ||||
| 57453-20090 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 57453-20091 |
CT19#,ET196,ST198 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-21040 |
CT198 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-21040 |
CT198 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-13040 |
CT198,199,ST198 |
1 | ||
| 57606D - MEMBER SUB-ASSY, REAR ABSORBER MOUNTING | ||||
| 57606-21040 |
CT198,199,ST198 |
1 | ||
| 58341D - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH | ||||
| 58341-13030 |
CT196,197,198,199,ET196,ST198 |
1 | ||
| 58342D - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH | ||||
| 58342-13030 |
CT196,197,198,199,ET196,ST198 |
1 | ||
| Common parts | ||||
| 90333-20001 | ||||
| 90333-30002 | ||||
| 90333-30004 | ||||
| 90950-01006 | ||||
| 90950-01060 | ||||
| 90950-01148 | ||||
| 90950-01511 | ||||
| 90950-01518 | ||||
| 90950-01529 | ||||
| 90950-01539 | ||||
| 90950-01631 | ||||
| 90950-01670 | ||||
| 90950-01684 | ||||
| 90950-01711 | ||||
| 90950-01769 | ||||
| 90950-01826 | ||||
| 90950-01866 | ||||
| 91651-60825 | ||||
