CT198V-DXMDS (1992)

Toyota Caldina

Production Nov 1992 - May 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )

Click highlighted areas on diagram

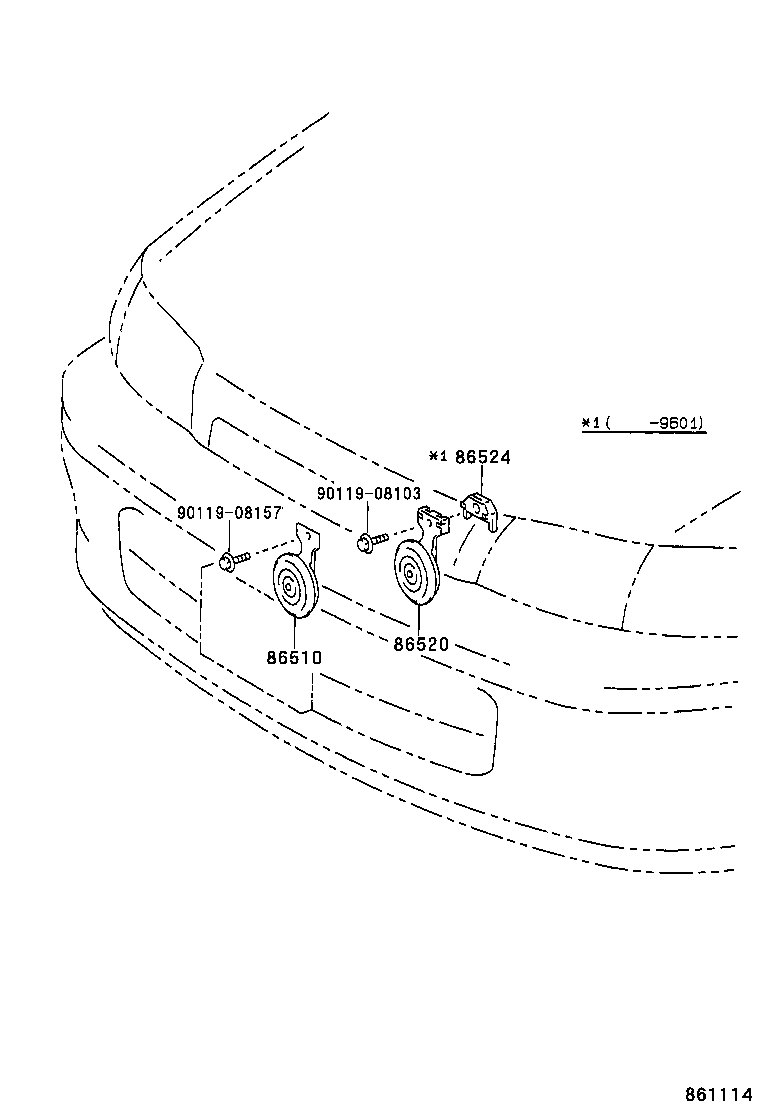

diagram 86510 86520 86524 9011908103 9011908157
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-20210

CT19#,ET196,ST19#

 1
86520 - HORN ASSY, LOW PITCHED
86520-20280

AT191,CT19#,ET196,ST19#

 1
86520-20220

CT19#,ET196,ST19#

 1
86524 - SPACER, HORN
86524-32020

CT19#,ET196,ST19#

 1
Common parts
90119-08103
90119-08157
