CT198V-DXMDS (1992)
Toyota Caldina

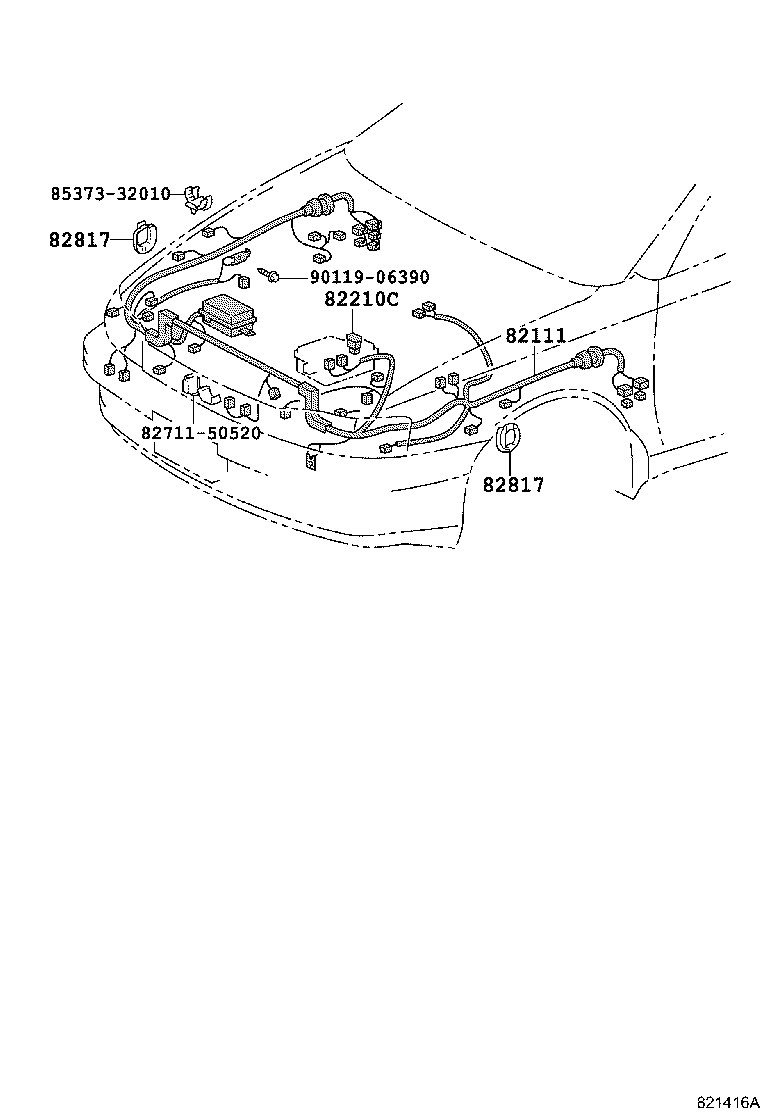

ILLUST NO. 1 OF11(9211-9601)
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-21100 |
CT196,198..U ｱﾘ(ﾌﾛﾝﾄ ｳｲﾝﾄﾞｳ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 82111-21090 |
CT196,198 |
1 | ||
| 82111-21101 |
CT196,198 ｱﾘ(ﾌﾛﾝﾄ ｳｲﾝﾄﾞｳ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 82111-21091 |
CT196,198 |
1 | ||
| 82111-21180 |
CT196,198 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
CT19#,ET196,ST19# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08227 |
CT19#,ET196,ST19# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
AT191,CT19#,ET196,ST19# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08283 |
AT191,CT19#,ET196,ST19# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08203 |
CT19# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08285 |
AT191,CT19#,ET196,ST19# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08202 |
AT191,CT19#,ET196,ST19# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08246 |
CT19#,ET196,ST198 100A,ｵｽ端子,青 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2D040 |
CT19#,ET196,ST19# FENDER RH |
1 | ||
| 82817-2D090 |
CT19#,ET196,ST19# COWL |
1 | ||
| 82817-2D090 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 82817-2D090 |
CT19# COWL |
1 | ||
| 82817-2D090 |
AT191,CT19#,ST19# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2D040 |
CT19#,ET196,ST19# FENDER RH |
1 | ||
| 82817-2D090 |
CT19#,ET196,ST19# COWL |
1 | ||
| 82817-2D090 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 82817-2D090 |
CT19# COWL |
1 | ||
| 82817-2D090 |
AT191,CT19#,ST19# |
1 | ||
| Common parts | ||||
| 82711-50520 | ||||
| 85373-32010 | ||||
| 90119-06390 | ||||

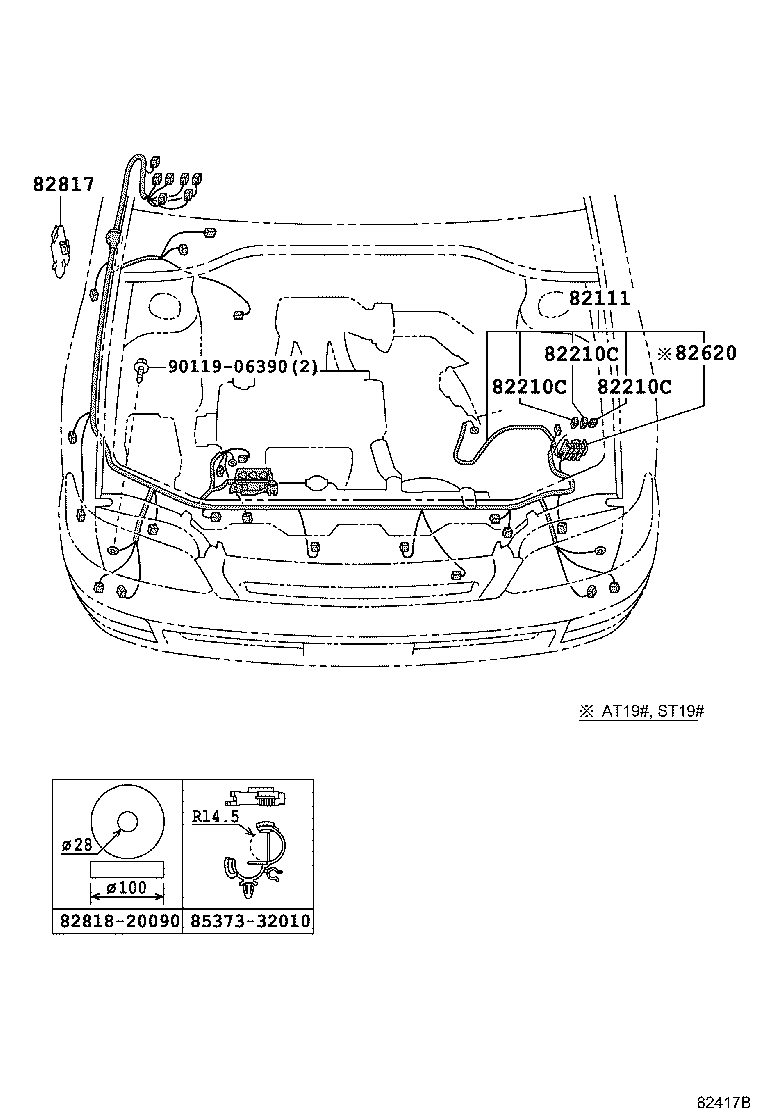

ILLUST NO. 1 OF11(9601- )
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-21100 |
CT196,198..U ｱﾘ(ﾌﾛﾝﾄ ｳｲﾝﾄﾞｳ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 82111-21090 |
CT196,198 |
1 | ||
| 82111-21101 |
CT196,198 ｱﾘ(ﾌﾛﾝﾄ ｳｲﾝﾄﾞｳ ﾃﾞﾌｵﾂｶﾞ) |
1 | ||
| 82111-21091 |
CT196,198 |
1 | ||
| 82111-21180 |
CT196,198 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
CT19#,ET196,ST19# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08227 |
CT19#,ET196,ST19# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
AT191,CT19#,ET196,ST19# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08283 |
AT191,CT19#,ET196,ST19# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08203 |
CT19# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08285 |
AT191,CT19#,ET196,ST19# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08202 |
AT191,CT19#,ET196,ST19# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08246 |
CT19#,ET196,ST198 100A,ｵｽ端子,青 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
CT19#,ET196,ST19# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08227 |
CT19#,ET196,ST19# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
AT191,CT19#,ET196,ST19# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08283 |
AT191,CT19#,ET196,ST19# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08203 |
CT19# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08285 |
AT191,CT19#,ET196,ST19# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08202 |
AT191,CT19#,ET196,ST19# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08246 |
CT19#,ET196,ST198 100A,ｵｽ端子,青 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
CT19#,ET196,ST19# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08227 |
CT19#,ET196,ST19# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
AT191,CT19#,ET196,ST19# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08283 |
AT191,CT19#,ET196,ST19# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08203 |
CT19# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08285 |
AT191,CT19#,ET196,ST19# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08202 |
AT191,CT19#,ET196,ST19# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08246 |
CT19#,ET196,ST198 100A,ｵｽ端子,青 |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-20160 |
CT19#,ET196,ST19# |
1 | ||
| 82620-20170 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2D040 |
CT19#,ET196,ST19# FENDER RH |
1 | ||
| 82817-2D090 |
CT19#,ET196,ST19# COWL |
1 | ||
| 82817-2D090 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 82817-2D090 |
CT19# COWL |
1 | ||
| 82817-2D090 |
AT191,CT19#,ST19# |
1 | ||
| Common parts | ||||
| 82818-20090 | ||||
| 85373-32010 | ||||
| 90119-06390 | ||||
ILLUST NO. 2 OF11(9211-9805)CT19#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-21060 |
CT198 |
1 | ||
| 82121-21061 |
CT198 |
1 | ||
| 82121-21150 |
CT198 |
1 | ||
| 82121-21151 |
CT198 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-20130 |
CT19# |
1 | ||
| 82124-20170 |
CT19# |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
CT19#,ET196,ST19# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08227 |
CT19#,ET196,ST19# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
AT191,CT19#,ET196,ST19# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08283 |
AT191,CT19#,ET196,ST19# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08203 |
CT19# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08285 |
AT191,CT19#,ET196,ST19# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08202 |
AT191,CT19#,ET196,ST19# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08246 |
CT19#,ET196,ST198 100A,ｵｽ端子,青 |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-20160 |
CT19#,ET196,ST19# |
1 | ||
| 82620-20170 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
CT19#,ST19# |
1 | ||
| 82823-22050 |
CT19#,ST19# |
1 | ||
| Common parts | ||||
| 90119-06691 | ||||
| Linked diagrams | ||||
| 8401 | ||||

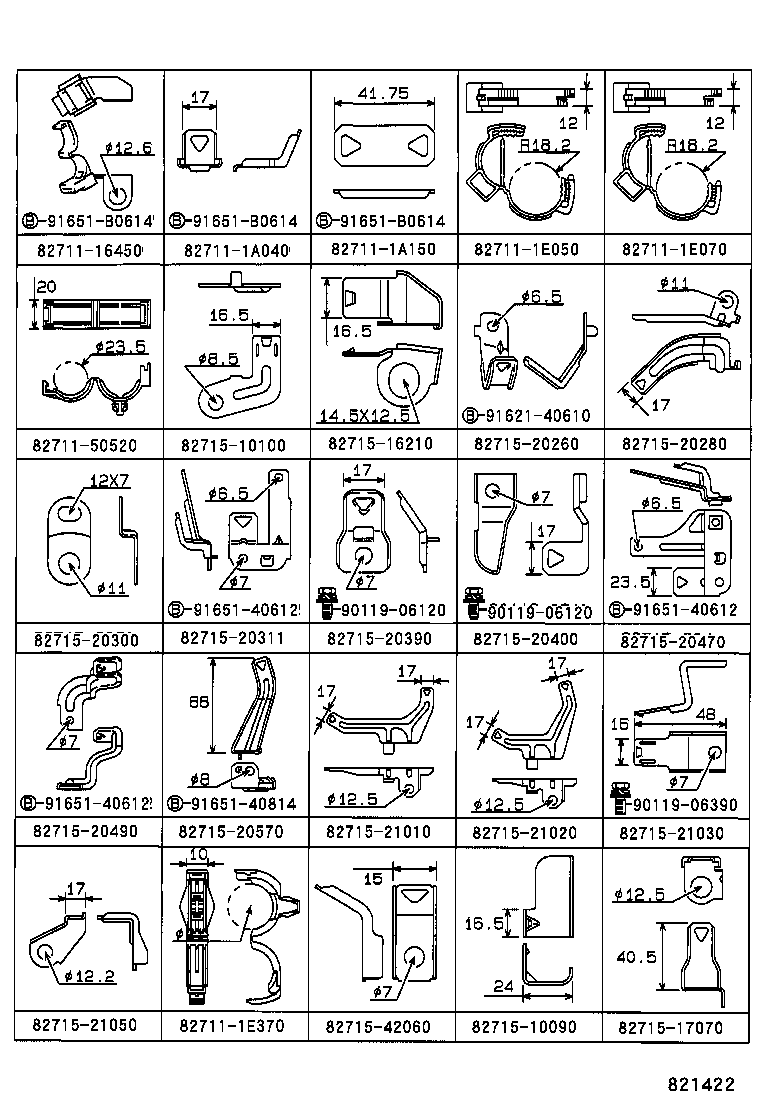

ILLUST NO. 3 OF11(9211- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-16450 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1E050 | ||||
| 82711-1E070 | ||||
| 82711-1E370 | ||||
| 82711-50520 | ||||
| 82715-10090 | ||||
| 82715-10100 | ||||
| 82715-16210 | ||||
| 82715-17070 | ||||
| 82715-20260 | ||||
| 82715-20280 | ||||
| 82715-20300 | ||||
| 82715-20311 | ||||
| 82715-20390 | ||||
| 82715-20400 | ||||
| 82715-20470 | ||||
| 82715-20490 | ||||
| 82715-20570 | ||||
| 82715-21010 | ||||
| 82715-21020 | ||||
| 82715-21030 | ||||
| 82715-21050 | ||||
| 82715-42060 | ||||
| 90119-06120 | ||||
| 90119-06390 | ||||
| 91621-40610 | ||||
| 91651-40612 | ||||
| 91651-40814 | ||||
| 91651-B0614 | ||||
ILLUST NO. 3 OF11(9601- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 78185-20080 | ||||
| 82711-1E350 | ||||
| 82715-10190 | ||||
| 82715-20430 | ||||
| 82715-20770 | ||||
| 82715-20790 | ||||
| 82715-20800 | ||||
| 82715-20810 | ||||
| 82715-20830 | ||||
| 82715-20840 | ||||
| 82715-20850 | ||||
| 82715-20870 | ||||
| 82715-20880 | ||||
| 82715-33140 | ||||
| 82715-34330 | ||||
| 90179-06143 | ||||
| 91611-60816 | ||||
| 91621-60612 | ||||
| 91651-60614 | ||||
| 91651-B0614 | ||||
ILLUST NO. 4 OF11(9211- )
ﾊﾞﾂﾃﾘｹ-ﾌﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-20310 |
ST195,198 |
1 | ||
| 82123-20211 |
CT19# |
1 | ||
| 82123-20280 |
CT19# |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-20310 |
ST195,198 |
1 | ||
| 82123-20211 |
CT19# |
1 | ||
| 82123-20280 |
CT19# |
1 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| 90179-08146 | ||||
| Linked diagrams | ||||
| 8201 | ||||

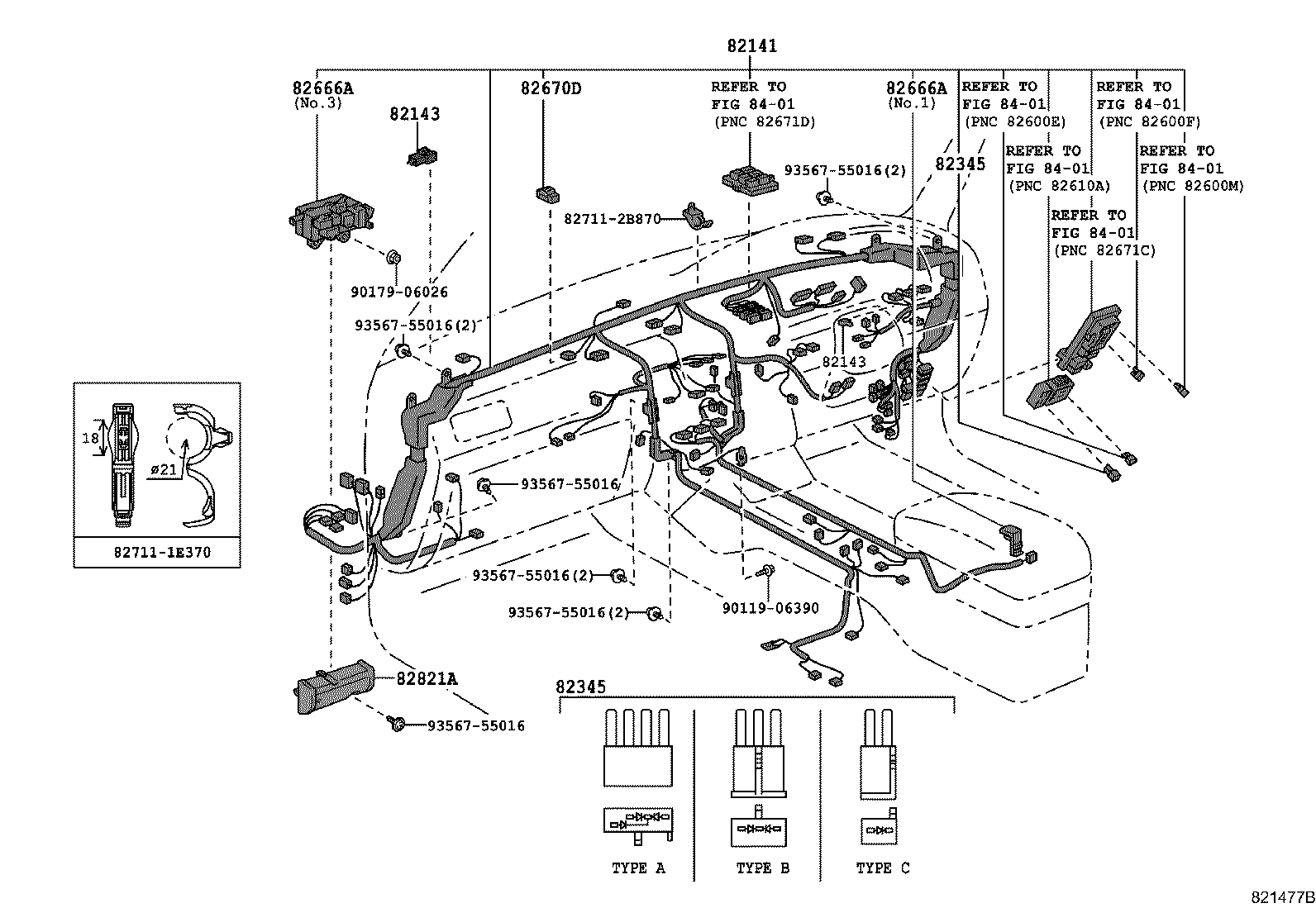

ILLUST NO. 5 OF11(9601- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-21010 |
ET196..UL;ET196..3FC..U;CT196,198..U,UL |
1 | ||
| 82141-21011 |
ET196..UL;ET196..3FC..U;CT196,198..U,UL |
1 | ||
| 82141-21230 |
CT196,198,ET196..U |
1 | ||
| 82141-21320 |
CT19#,ET196..U ｱﾘ(*80,ﾄﾞﾗｲﾊﾞ- & ﾊﾟﾂｾﾝｼﾞﾔ-) |
1 | ||
| Common parts | ||||
| 82711-1E370 | ||||

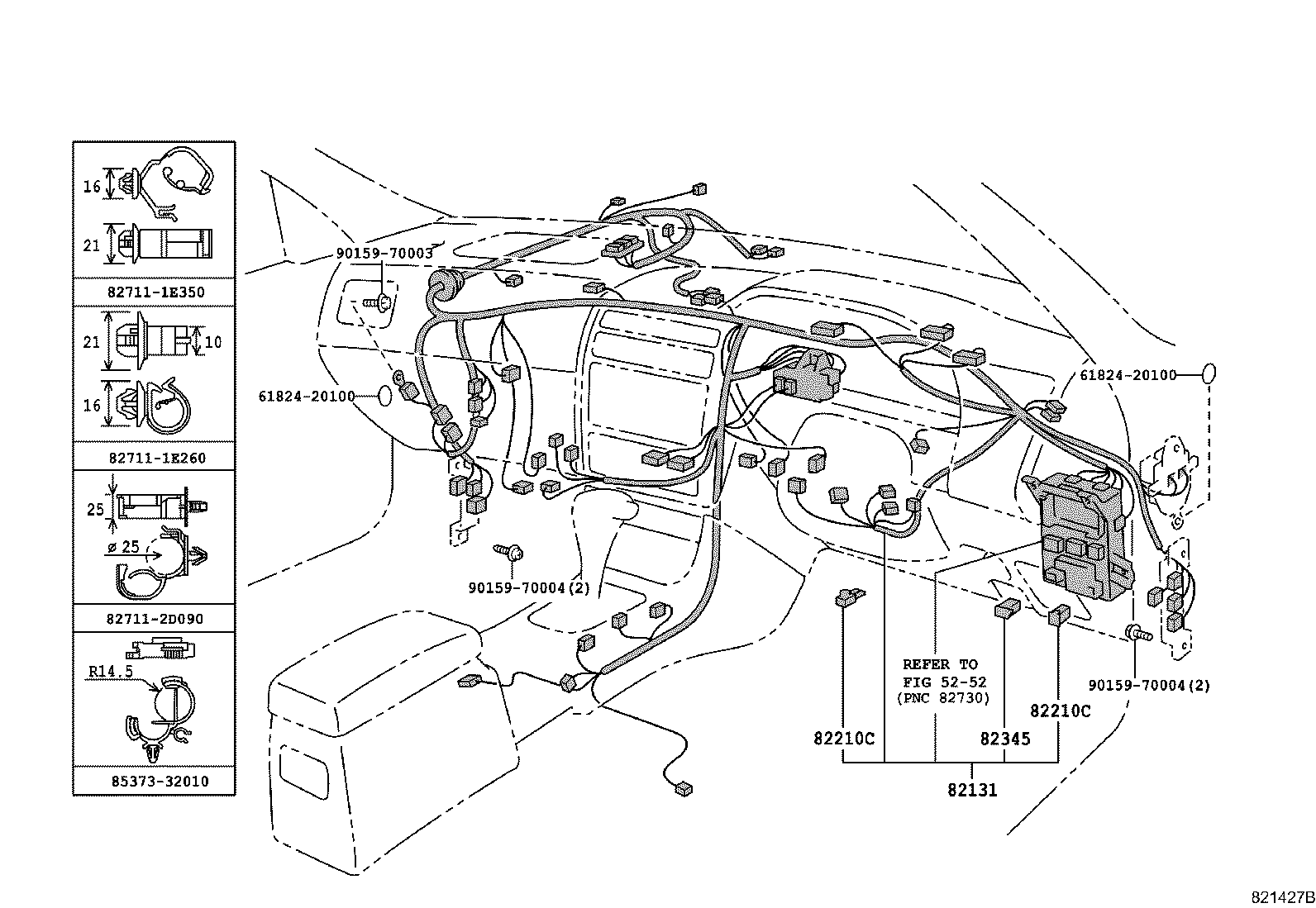

ILLUST NO. 6 OF11(9601- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-21471 |
CT198 |
1 | ||
| 82131-21290 |
CT198 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
CT19#,ET196,ST19# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08227 |
CT19#,ET196,ST19# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
AT191,CT19#,ET196,ST19# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08283 |
AT191,CT19#,ET196,ST19# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08203 |
CT19# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08285 |
AT191,CT19#,ET196,ST19# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08202 |
AT191,CT19#,ET196,ST19# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08246 |
CT19#,ET196,ST198 100A,ｵｽ端子,青 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
CT19#,ET196,ST19# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08227 |
CT19#,ET196,ST19# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08246 |
AT191,CT19#,ET196,ST19# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08283 |
AT191,CT19#,ET196,ST19# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08203 |
CT19# 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08285 |
AT191,CT19#,ET196,ST19# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08202 |
AT191,CT19#,ET196,ST19# 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08246 |
CT19#,ET196,ST198 100A,ｵｽ端子,青 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
CT19#,ET196,ST19# |
1 | ||
| Common parts | ||||
| 61824-20100 | ||||
| 82711-1E260 | ||||
| 82711-1E350 | ||||
| 82711-2D090 | ||||
| 85373-32010 | ||||
| 90159-70003 | ||||
| 90159-70004 | ||||
| Linked diagrams | ||||
| 5252 | ||||
ILLUST NO. 9 OF11(9211-9708) ; (9708- )ET196
ｹ-ﾌﾞﾙﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-24420 | ||||
| 90119-06390 | ||||

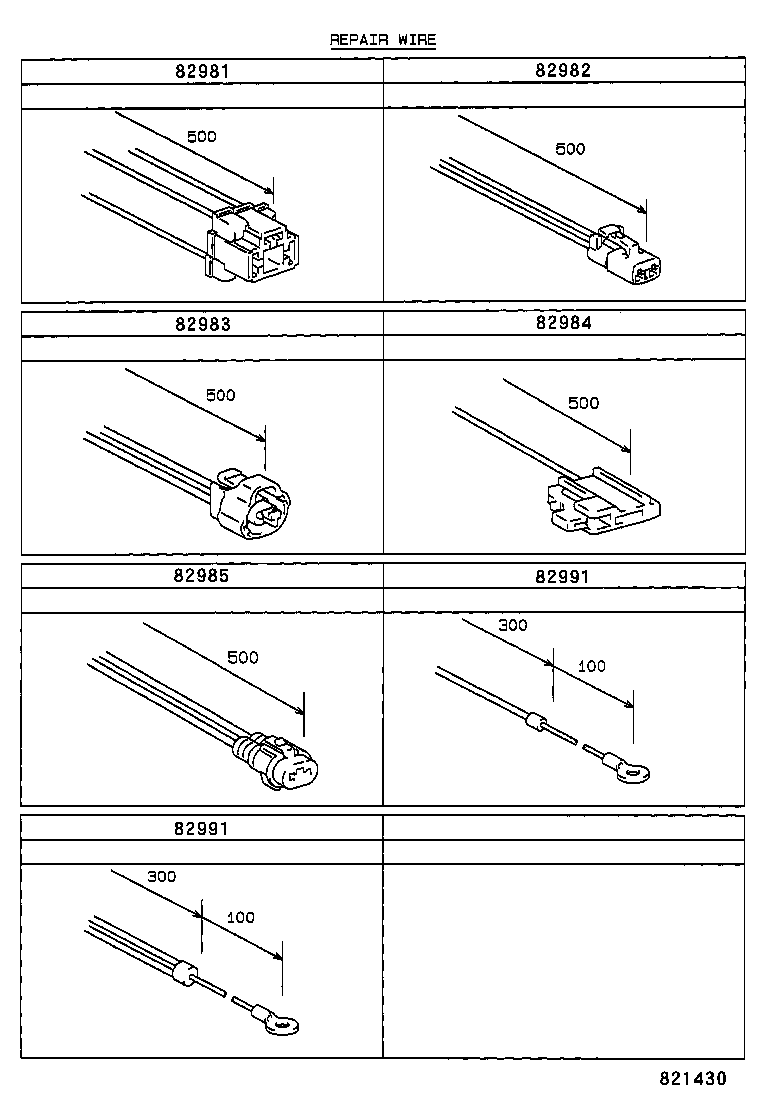

ILLUST NO.10 OF11(9211- )
ﾘﾍﾟｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-20050 |
CT19#,ET196,ST19# |
1 | ||
| 82981-20050 |
CT19#,ET196,ST19# |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-20110 |
CT19#,ET196,ST19# |
1 | ||
| 82982-20110 |
CT19#,ET196,ST19# |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-20050 |
CT19#,ET196,ST19# |
1 | ||
| 82983-20050 |
CT19#,ET196,ST19# |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
CT19#,ET196,ST19# |
1 | ||
| 82984-20010 |
CT19#,ET196,ST19# |
1 | ||
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-20030 |
CT19#,ET196,ST19# |
1 | ||
| 82985-20030 |
CT19#,ET196,ST19# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20110 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 82991-20100 |
CT19#,ET196,ST19# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20110 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 82991-20100 |
CT19#,ET196,ST19# |
1 | ||
ILLUST NO. 5 OF11(9211-9601)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-21010 |
ET196..UL;ET196..3FC..U;CT196,198..U,UL |
1 | ||
| 82141-21011 |
ET196..UL;ET196..3FC..U;CT196,198..U,UL |
1 | ||
| 82141-21230 |
CT196,198,ET196..U |
1 | ||
| 82141-21320 |
CT19#,ET196..U ｱﾘ(*80,ﾄﾞﾗｲﾊﾞ- & ﾊﾟﾂｾﾝｼﾞﾔ-) |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
CT19#,ET196,ST19# |
1 | ||
| 82345 - DIODE | ||||
| 82345-32010 |
CT19#,ET196,ST19# |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-20040 |
CT19#,ET196,ST19# NO.3 |
1 | ||
| 82666-20070 |
CT19#,ET196,ST19# NO.1 |
1 | ||
| 82666-20070 |
CT19#,ET196,ST19# NO.1 |
1 | ||
| 82666-20040 |
CT19#,ET196,ST19# NO.3 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-20040 |
CT19#,ET196,ST19# NO.3 |
1 | ||
| 82666-20070 |
CT19#,ET196,ST19# NO.1 |
1 | ||
| 82666-20070 |
CT19#,ET196,ST19# NO.1 |
1 | ||
| 82666-20040 |
CT19#,ET196,ST19# NO.3 |
1 | ||
| 82670D - BLOCK ASSY, JUNCTION,NO.2 | ||||
| 82670-20890 |
CT19#,ET196,ST19# |
1 | ||
| 82670-20890 |
CT19#,ET196,ST19# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-20230 |
CT19#,ET196,ST19# |
1 | ||
| 82821-20230 |
CT196,198,ET196,ST19#..TZ,U,UL |
1 | ||
| 82821-20230 |
CT19#,ET196,ST19# |
1 | ||
| 82821-20230 |
ST195..4FC..TZ;CT196,198,ET196,ST190,191..TZ,U,UL |
1 | ||
| 82821-20230 |
CT196,198,ET196 |
1 | ||
| Common parts | ||||
| 82711-1E370 | ||||
| 82711-2B870 | ||||
| 90119-06390 | ||||
| 90179-06026 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

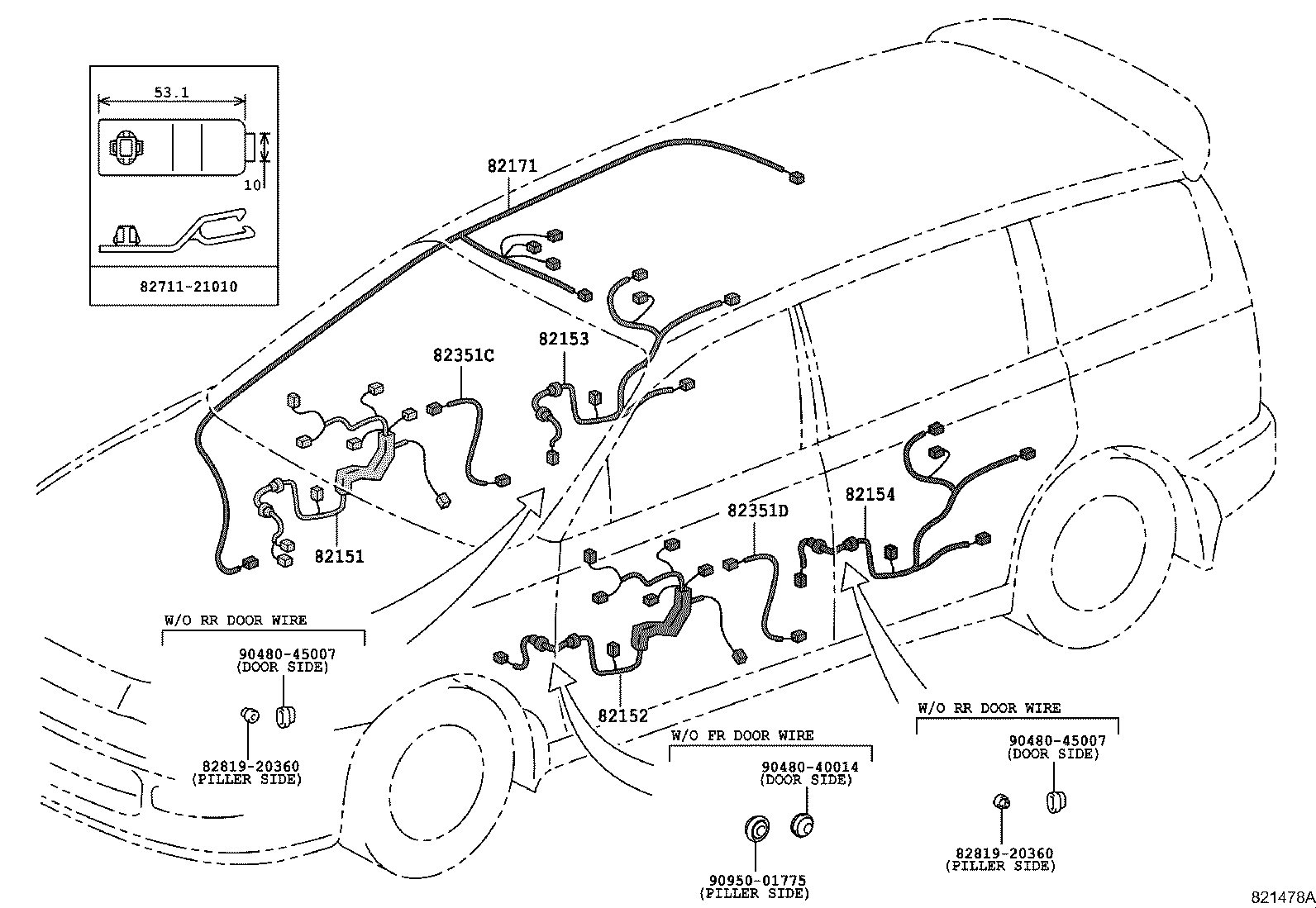

ILLUST NO. 7 OF11(9211- )
ﾄﾞｱ,ﾙ-ﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-2D520 |
CT196,198,ET196..U |
1 | ||
| 82151-21050 |
CT196,197,198,199,ET196,ST198..U |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-20640 |
CT19#,ET196,ST190..FZ,U,UL,UX |
1 | ||
| 82171-21100 |
AT191,CT19#,ET196,ST198..FZ,U,UL,UX |
1 | ||
| Common parts | ||||
| 82711-21010 | ||||
| 82819-20360 | ||||
| 90480-40014 | ||||
| 90480-45007 | ||||
| 90950-01775 | ||||

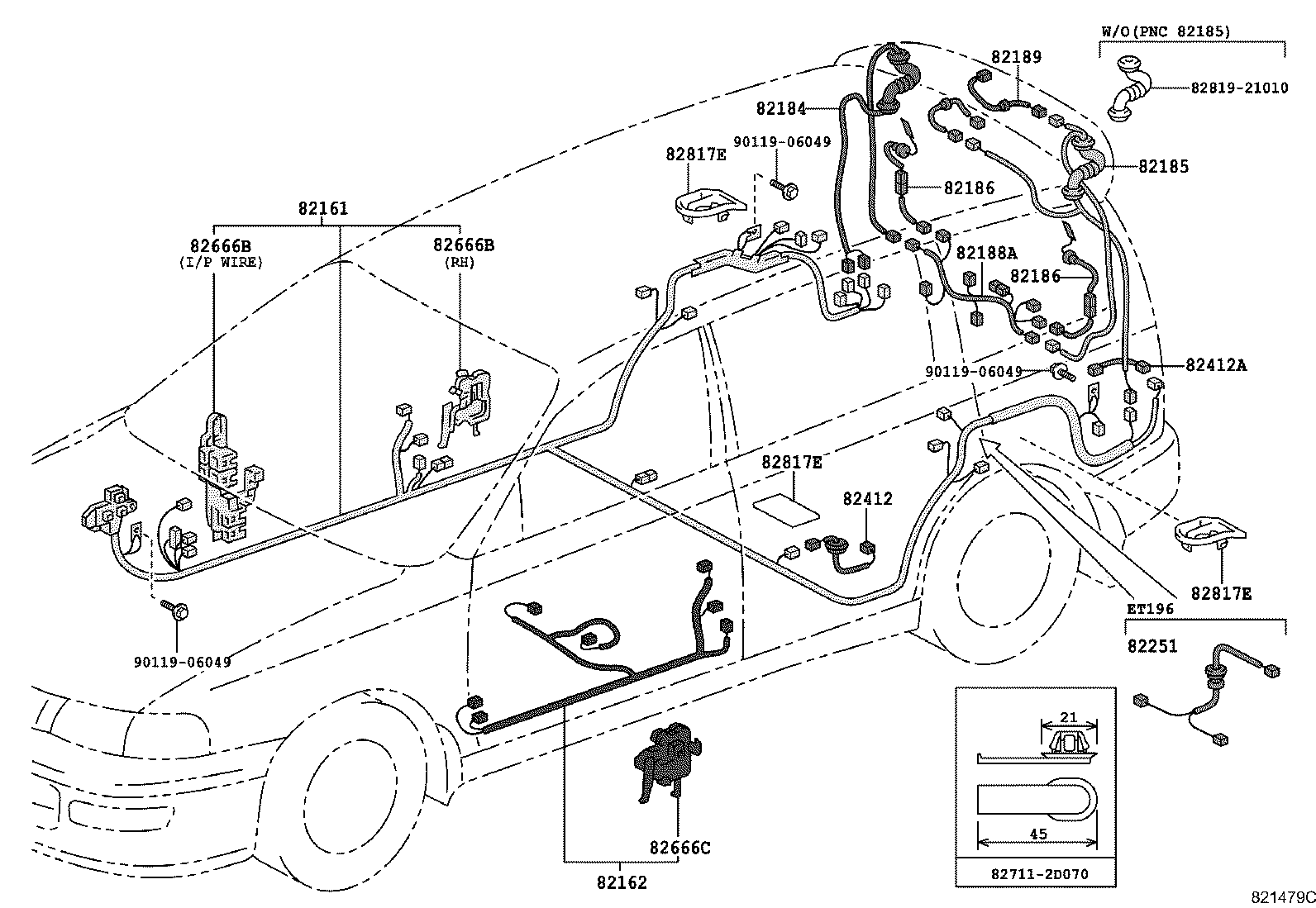

ILLUST NO. 8 OF11(9211- )
ﾌﾛｱ,ﾗﾂｹ-ｼﾞﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-21020 |
CT198 |
1 | ||
| 82161-21200 |
CT198 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-21030 |
CT198;CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX |
1 | ||
| 82184-21050 |
ST198..U;AT191,CT19#,ET196,ST191,195 ｱﾘ(ｶﾝｹﾂﾘﾔﾜｲﾊﾟ) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-21050 |
CT198;CT196,ET196..UL,UX |
1 | ||
| 82185-21060 |
CT196,198,ET196 ｱﾘ(ﾊｲ ﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) |
1 | ||
| 82185-21090 |
CT198,199;CT196,197,ET196,ST198..UL,UX |
1 | ||
| 82185-21080 |
AT191,CT19#,ET196,ST191,195 ｱﾘ(ﾊｲ ﾏｳﾝﾄ ｽﾄﾂﾌﾟ ﾗﾝﾌﾟ) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-21010 |
CT19#,ET196,ST19# |
2 | ||
| 82186-21020 |
AT191,CT19#,ET196,ST19# |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-21010 |
CT19#,ET196,ST19# |
2 | ||
| 82186-21020 |
AT191,CT19#,ET196,ST19# |
2 | ||
| 82188A - WIRE, BACK DOOR, NO.3 | ||||
| 82188-21020 |
CT198;CT196,ET196..UL,UX |
1 | ||
| 82188-21070 |
CT198,199;CT197..UL;CT197..5F..UX;CT196,ET196,ST198..UL,UX |
1 | ||
| 82189 - WIRE, BACK DOOR, NO.4 | ||||
| 82189-21010 |
CT19#,ET196,ST19# |
1 | ||
| 82189-21010 |
AT191,CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-21010 |
CT198,199 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-20090 |
CT19#,ET196,ST19# I/P WIRE |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-20090 |
CT19#,ET196,ST19# I/P WIRE |
1 | ||
| Common parts | ||||
| 82711-2D070 | ||||
| 82819-21010 | ||||
| 90119-06049 | ||||

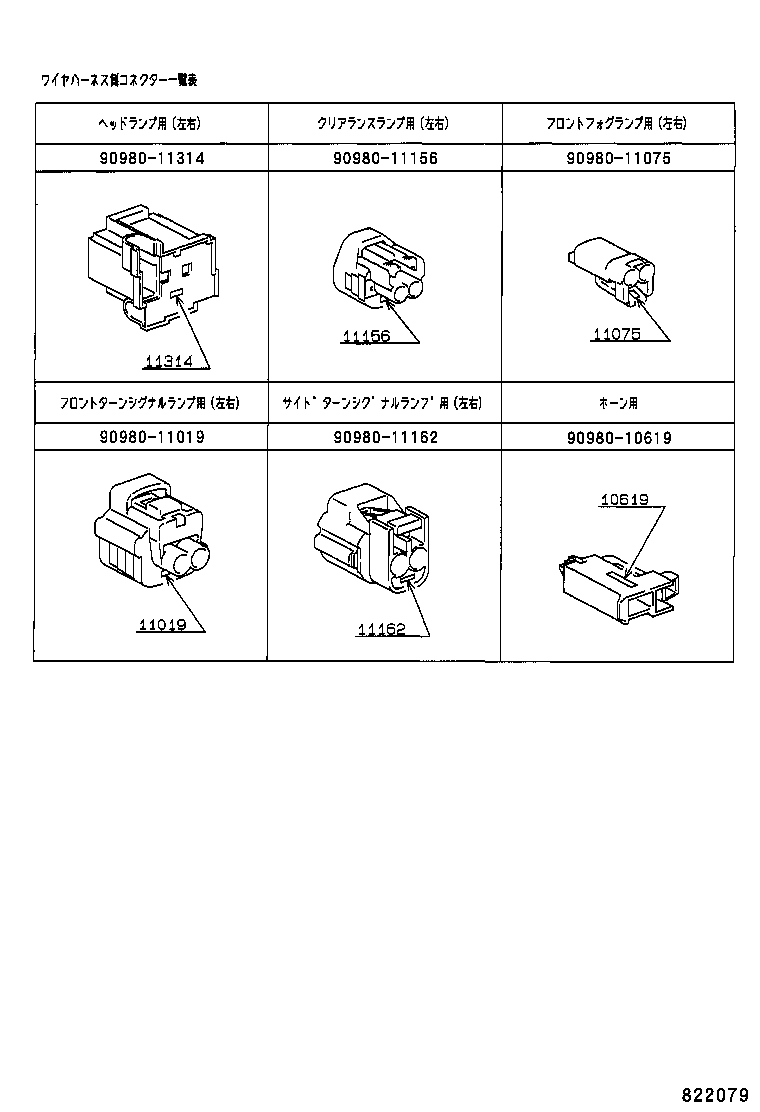

ILLUST NO.11 OF11(9211- )
ｺﾈｸﾀ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-11019 | ||||
| 90980-11075 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11314 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
