CT198V-DXMDS (1992)

Toyota Caldina

Production Nov 1992 - May 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )CT196,197,198,199,ET196,ST198

Click highlighted areas on diagram

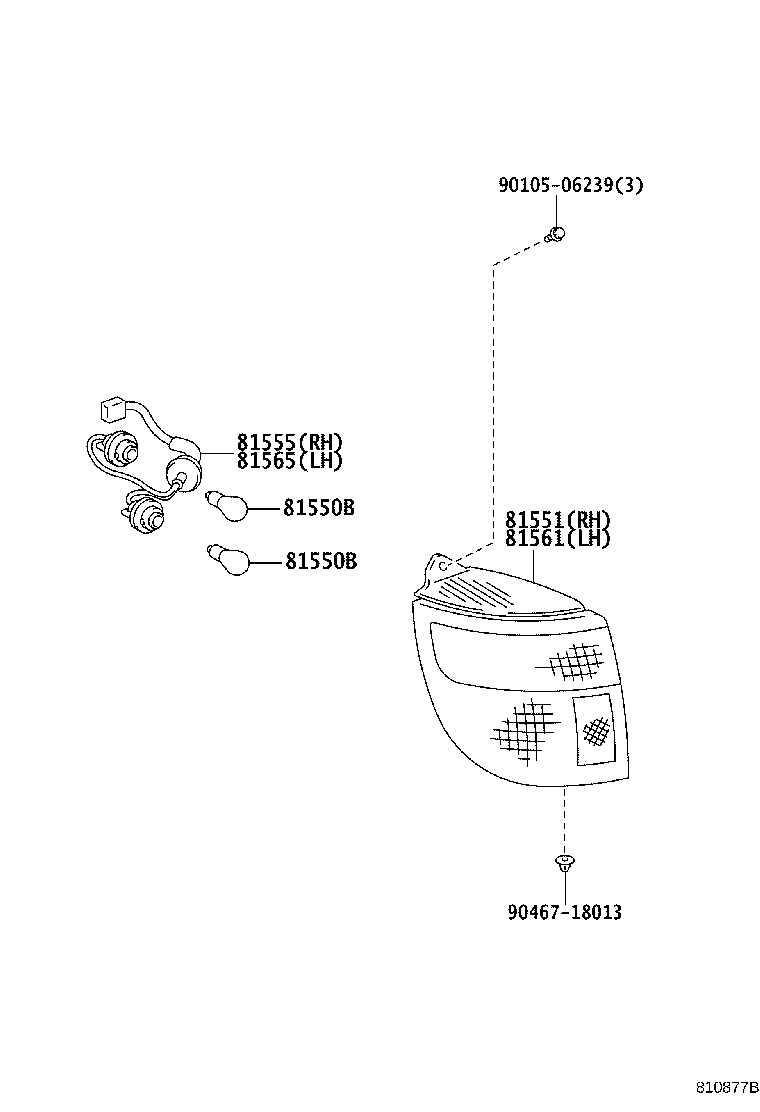

diagram 81550B 81550B 81551 81555 81561 81565 9010506239 9046718013
Part # Description Qty Price
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

CT19#,ET196,ST19#

12V 21/5W

 2
99132-11210

CT196,197,198,199,ET196,ST198

12V 21W

 2
99132-21210

CT196,197,198,199,ET196,ST198

12V 21/5W

 2
99132-11210

CT19#,ET196,ST19#

12V 21W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

CT19#,ET196,ST19#

12V 21/5W

 2
99132-11210

CT196,197,198,199,ET196,ST198

12V 21W

 2
99132-21210

CT196,197,198,199,ET196,ST198

12V 21/5W

 2
99132-11210

CT19#,ET196,ST19#

12V 21W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-21140

CT196,197,198,199,ET196,ST198

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-21140

CT196,197,198,199,ET196,ST198

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-21140

CT196,197,198,199,ET196,ST198

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-21140

CT196,197,198,199,ET196,ST198

 1
Common parts
90105-06239
90467-18013
