CT197V-DXPNE (1998)

Toyota Caldina

Production May 1998 - Jun 2002
Engine 3CE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )CT19#

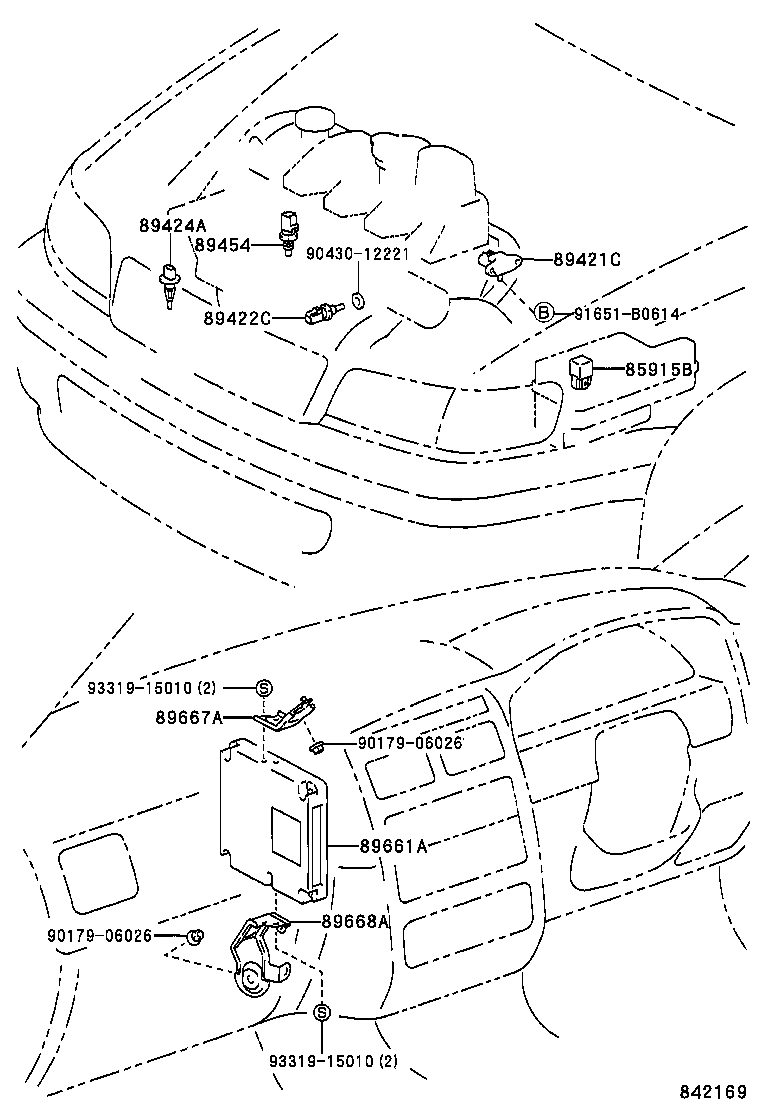

Click highlighted areas on diagram

diagram 85915B 89421C 89422C 89424A 89454 89661A 89667A 89668A 9017906026 9017906026 9043012221 91651B0614 9331915010 9331915010
Part # Description Qty Price
85915B - RELAY, MAIN (FOR DIESEL TURBO)
90987-02012

CT19#

 1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89420-20260

CT19#

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-35010

CT19#

 1
89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89424-12010

CT19#

 1
89454 - SENSOR, FUEL TEMPERATURE
89454-60010

CT19#

 1
89661A - COMPUTER, ENGINE CONTROL
89661-21360

CT197..4FC

DENSO

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-20380

CT19#

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-20340

CT19#

 1
Common parts
90179-06026
90430-12221
91651-B0614
93319-15010
