CT197V-DXMNE (1998)

Toyota Caldina

Production May 1998 - Jun 2002
Engine 3CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

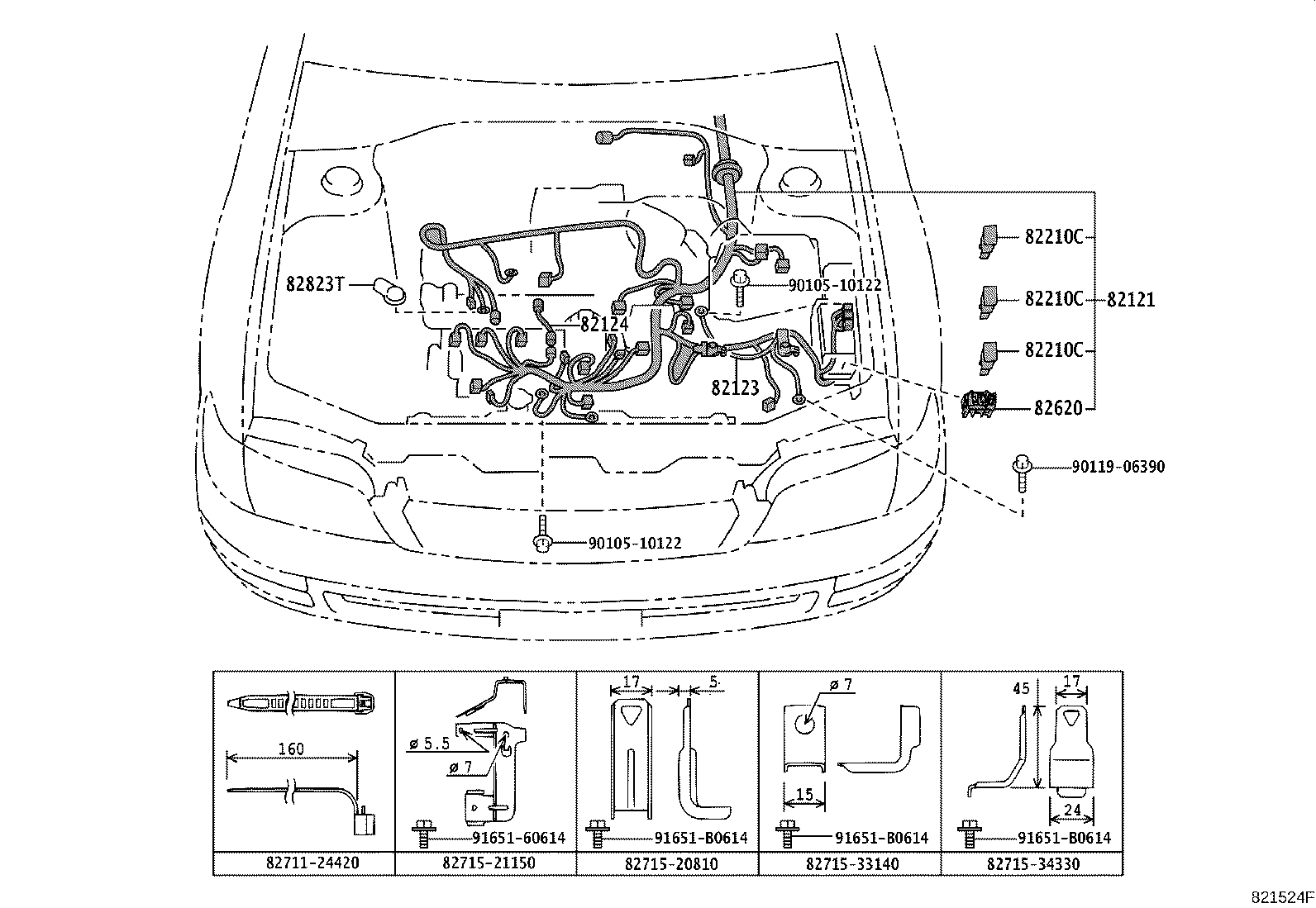

ILLUST NO. 2 OF11(9805- )CT19#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

diagram 82121 82123 82124 82210C 82210C 82210C 82620 8271124420 8271520810 8271521150 8271533140 8271534330 82823T 9010510122 9010510122 9011906390 9165160614 91651B0614 91651B0614 91651B0614
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-21300

CT197..5F

 1
82121-21301

CT197..5F

 1
82123 - WIRE, ENGINE, NO.3
82123-20211

CT19#

 1
82124 - WIRE, ENGINE, NO.4
82124-20130

CT19#

 1
82124-21020

CT19#

 1
82210C - FUSIBLE LINK
90982-08189

CT19#,ET196,ST19#

40A,ﾒｽ端子,緑

 1
90982-08227

CT19#,ET196,ST19#

50A,ﾒｽ端子,赤

 1
90982-08246

AT191,CT19#,ET196,ST19#

100A,ｵｽ端子,青

 1
90982-08203

CT19#

80A,ｵｽ端子,黒

 1
90982-08283

CT197..4FC;CT197..5F..(U,UL)

30A,ﾒｽ端子,桃

 1
90982-08284

CT197,ET196

40A,ﾒｽ端子,緑

 1
82210C - FUSIBLE LINK
90982-08189

CT19#,ET196,ST19#

40A,ﾒｽ端子,緑

 1
90982-08227

CT19#,ET196,ST19#

50A,ﾒｽ端子,赤

 1
90982-08246

AT191,CT19#,ET196,ST19#

100A,ｵｽ端子,青

 1
90982-08203

CT19#

80A,ｵｽ端子,黒

 1
90982-08283

CT197..4FC;CT197..5F..(U,UL)

30A,ﾒｽ端子,桃

 1
90982-08284

CT197,ET196

40A,ﾒｽ端子,緑

 1
82210C - FUSIBLE LINK
90982-08189

CT19#,ET196,ST19#

40A,ﾒｽ端子,緑

 1
90982-08227

CT19#,ET196,ST19#

50A,ﾒｽ端子,赤

 1
90982-08246

AT191,CT19#,ET196,ST19#

100A,ｵｽ端子,青

 1
90982-08203

CT19#

80A,ｵｽ端子,黒

 1
90982-08283

CT197..4FC;CT197..5F..(U,UL)

30A,ﾒｽ端子,桃

 1
90982-08284

CT197,ET196

40A,ﾒｽ端子,緑

 1
82620 - BLOCK ASSY, FUSIBLE LINK
82620-20160

CT19#,ET196,ST19#

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

CT19#,ST19#

 1
Common parts
82711-24420
82715-20810
82715-21150
82715-33140
82715-34330
90105-10122
90119-06390
91651-60614
91651-B0614
