CT197V-DXMNE (1998)

Toyota Caldina

Production May 1998 - Jun 2002
Engine 3CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )CT19#..5F

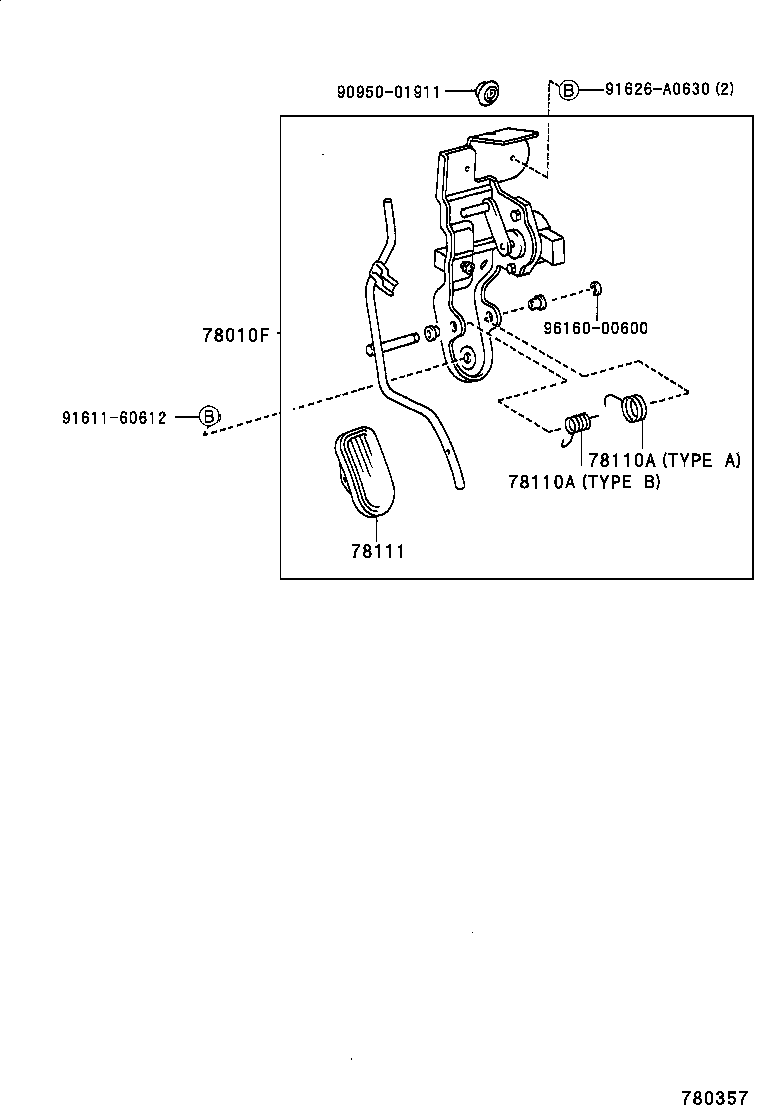

Click highlighted areas on diagram

diagram 78010F 78110A 78110A 78111 9095001911 9161160612 91626A0630 9616000600
Part # Description Qty Price
78010F - PEDAL ASSY, ACCELERATOR
78010-20080

CT19#..5F

 1
78010-20081

CT19#..5F

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03141

CT19#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90959-03141

CT19#..5F

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90508-26054

CT19#,ST190,195..5F

 1
90959-03213

CT19#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90959-03140

CT19#..5F

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03141

CT19#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90959-03141

CT19#..5F

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90508-26054

CT19#,ST190,195..5F

 1
90959-03213

CT19#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90959-03140

CT19#..5F

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
78111 - PEDAL, ACCELERATOR
78111-20050

CT19#..5F

 1
Common parts
90950-01911
91611-60612
91626-A0630
96160-00600
