CT197V-DXMNE (1998)
Toyota Caldina
Production
May 1998
-
Jun 2002
Engine
3CE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )CT197,ET196

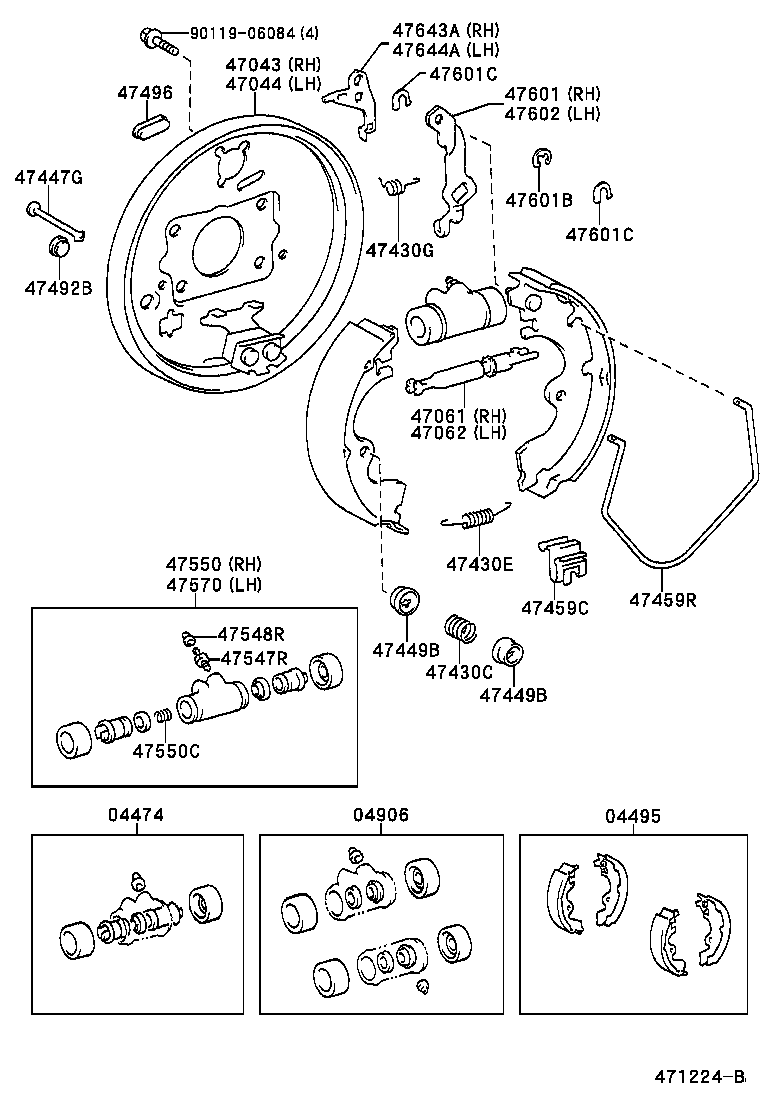

Click highlighted areas on diagram
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-63020 |
CT19#,ET196,ST198 |
2 | ||
| 04474-10032 |
CT19#,ET196,ST190 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-12221 |
CT197,ET196 ｱﾘ(ABS) |
1 | ||
| 04497-12120 |
CT190,196,197,ET196,ST190..DSL,EFI ﾘﾋﾞﾙﾄ |
1 | ||
| 04495-12220 |
CT190,196,197,ET196,ST190..DSL,EFI ﾏｰｸ NBK LN512 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-10021 |
CT19#,ET196,ST190 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-13020 |
CT197,ET196 ｱﾘ(ABS) |
1 | ||
| 47043-12070 |
CT196,197,ET196 |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-12070 |
CT196,197,ET196 |
1 | ||
| 47044-13020 |
CT197,ET196 ｱﾘ(ABS) |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-16030 |
CT197,ET196 ｱﾘ(ABS) |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47062-16030 |
CT197,ET196 ｱﾘ(ABS) |
1 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20010 |
CT197,ET196 ｱﾘ(ABS) |
4 | ||
| 47459C - CLIP(FOR SHOE RETURN SPRING) | ||||
| 90468-05063 |
CT197,ET196 |
2 | ||
| 47459R - SPRING, SHOE RETURN(FOR REAR BRAKE) | ||||
| 47459-12010 |
CT197,ET196 |
2 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-32010 |
CT19#,ET196,ST190 |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
CT19#,ET196,ST190 |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-20010 |
CT19#,ET196,ST190 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
CT19#,ET196,ST190 |
2 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-07006 |
CT19#,ET196,ST190 |
2 | ||
| 90029-60014 |
CT19#,ET196,ST198 |
2 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
CT19#,ET196,ST190 厚さ=1.2 |
4 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-06013 |
CT19#,ET196,ST190 厚さ=1.2 |
4 | ||
| Common parts | ||||
| 90119-06084 | ||||
