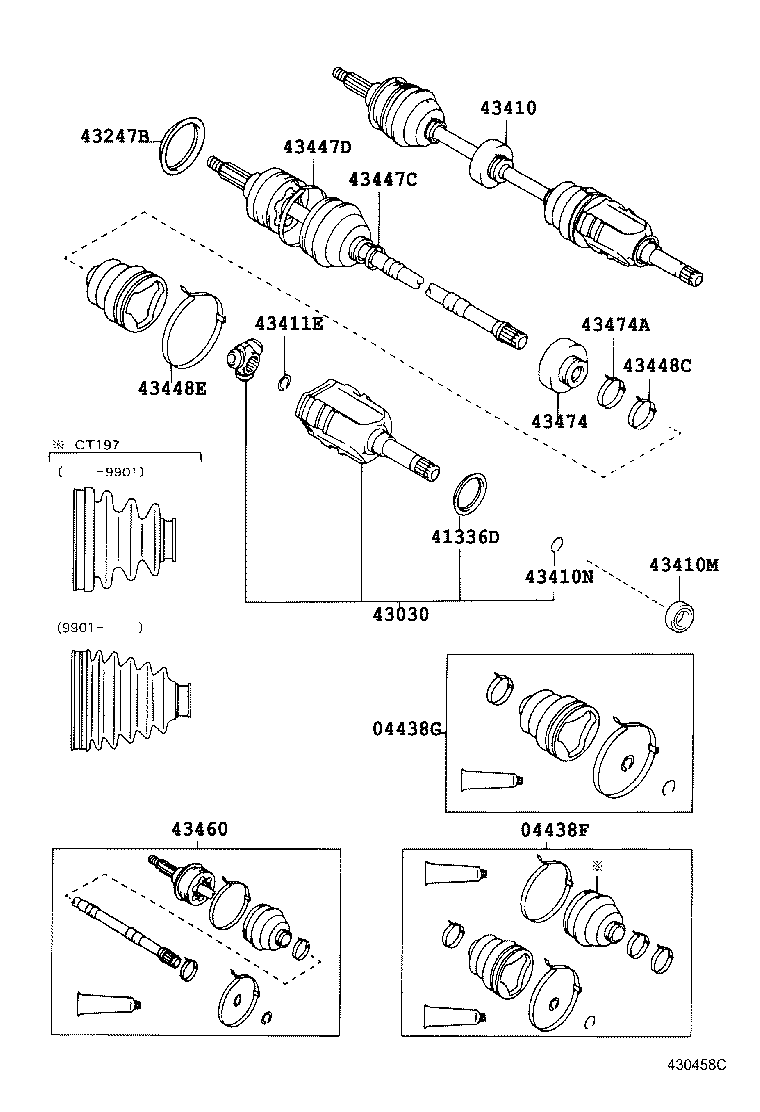

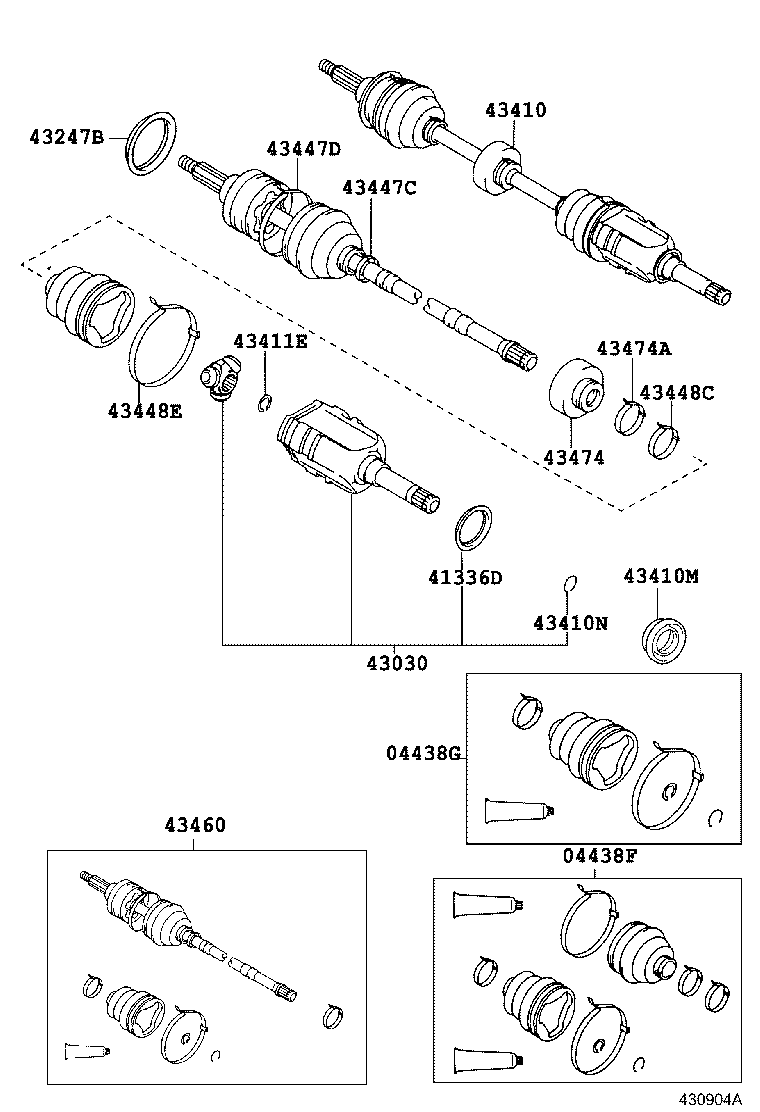

CT197V-DXMNE (1998)
Toyota Caldina
(9211-0104)AT191,CT190,196,197,ET196 ; (0104-)ET196
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-12481 |
CT197 |
1 | ||
| 04438-20132 |
CT197 ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-12470 |
CT197 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-32010 |
CT190,196,197 |
1 | ||
| 41336-12060 |
CT197 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-20020 |
CT190,196,197 |
1 | ||
| 43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 | ||||
| 43247-33010 |
CT19#,ET196,ST19# |
1 | ||
| 43247-12010 |
CT19#,ET196,ST198 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-12351 |
CT197 ｱﾘ(ABS) |
1 | ||
| 43410-12352 |
CT197 ｱﾘ(ABS) |
1 | ||
| 43410-12352 |
CT197 |
1 | ||
| 43410-12353 |
CT197 |
1 | ||
| 43410-20343 |
CT197 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-35049 |
CT197..5F |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90521-27005 |
CT190,196,197 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-22005 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12150 |
CT19#,ST198 内径=29.6 |
1 | ||
| 42345-20100 |
CT19#,ST198 内径=31.1 |
1 | ||
| 42345-14010 |
CT19#,ST19# |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12140 |
CT19#,ST198 内径=92.0 |
1 | ||
| 90949-01076 |
CT19#,ST19# 内径=92.2 |
1 | ||
| 42345-20120 |
CT19#,ST198 内径=90.6 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-16010 |
CT19#,ET196,ST19# |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01076 |
CT19#,ET196,ST19# |
1 | ||
| 90949-01076 |
CT197 内径=92.2 |
1 | ||
| 42345-12160 |
CT19#,ET196,ST198 |
1 | ||
| 90949-01946 |
CT197 内径=91.9 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-19657 |
CT197 ｱﾘ(ABS) |
1 | ||
| 43460-19658 |
CT197 ｱﾘ(ABS) |
1 | ||
| 43460-29150 |
CT197 |
1 | ||
| 43460-19659 |
CT197 |
1 | ||
| 43460-19658 |
CT197 |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12020 |
CT190,196,197 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 90949-01947 |
CT197 内径=35.45 |
1 | ||
| 42345-14010 |
CT197 内径=35.75 |
1 | ||
(9211-0104)
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-12660 |
CT197 |
1 | ||
| 04438-20132 |
CT197 ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-12470 |
CT197 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-12060 |
CT197 |
1 | ||
| 41336-32020 |
CT190,196,197,ST190,191 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-20010 |
CT190,196,197,ST190,191 |
1 | ||
| 43040-32040 |
CT197 |
1 | ||
| 43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2 | ||||
| 43247-33010 |
CT19#,ET196,ST19# |
1 | ||
| 43247-12010 |
CT19#,ET196,ST198 |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-22005 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-20302 |
CT197 ｱﾘ(ABS) |
1 | ||
| 43420-20293 |
CT197 |
1 | ||
| 43420-20303 |
CT197 |
1 | ||
| 43420-20303 |
CT197 ｱﾘ(ABS) |
1 | ||
| 43420-20304 |
CT197 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-27005 |
CT190,196,197,ST190,191 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-35048 |
CT197..5F |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-14010 |
CT19#,ST19# |
1 | ||
| 42345-20100 |
CT19#,ST198 内径=31.1 |
1 | ||
| 42345-12150 |
CT19#,ST198 内径=29.6 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 90949-01076 |
CT19#,ST19# 内径=92.2 |
1 | ||
| 42345-20120 |
CT19#,ST198 内径=90.6 |
1 | ||
| 42345-12140 |
CT19#,ST198 内径=92.0 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-16010 |
CT19#,ET196,ST19# |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01076 |
CT197 内径=92.2 |
1 | ||
| 42345-12160 |
CT19#,ET196,ST198 |
1 | ||
| 90949-01946 |
CT197 内径=91.9 |
1 | ||
| 90949-01076 |
CT19#,ET196,ST19# |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-29250 |
CT197 ｱﾘ(ABS) |
1 | ||
| 43470-29230 |
CT197 |
1 | ||
| 43470-29251 |
CT197 |
1 | ||
| 43470-29249 |
CT197 ｱﾘ(ABS) |
1 | ||
| 43470-29250 |
CT197 |
1 | ||
(0104- )CT197
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-12481 |
CT197 |
1 | ||
| 04438-20132 |
CT197 ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-12470 |
CT197 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-32010 |
CT190,196,197 |
1 | ||
| 41336-12060 |
CT197 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-20020 |
CT190,196,197 |
1 | ||
| 43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 | ||||
| 43247-33010 |
CT19#,ET196,ST19# |
1 | ||
| 43247-12010 |
CT19#,ET196,ST198 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-12351 |
CT197 ｱﾘ(ABS) |
1 | ||
| 43410-12352 |
CT197 ｱﾘ(ABS) |
1 | ||
| 43410-12352 |
CT197 |
1 | ||
| 43410-12353 |
CT197 |
1 | ||
| 43410-20343 |
CT197 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-35049 |
CT197..5F |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90521-27005 |
CT190,196,197 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-22005 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12150 |
CT19#,ST198 内径=29.6 |
1 | ||
| 42345-20100 |
CT19#,ST198 内径=31.1 |
1 | ||
| 42345-14010 |
CT19#,ST19# |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-12140 |
CT19#,ST198 内径=92.0 |
1 | ||
| 90949-01076 |
CT19#,ST19# 内径=92.2 |
1 | ||
| 42345-20120 |
CT19#,ST198 内径=90.6 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-16010 |
CT19#,ET196,ST19# |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01076 |
CT19#,ET196,ST19# |
1 | ||
| 90949-01076 |
CT197 内径=92.2 |
1 | ||
| 42345-12160 |
CT19#,ET196,ST198 |
1 | ||
| 90949-01946 |
CT197 内径=91.9 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-19657 |
CT197 ｱﾘ(ABS) |
1 | ||
| 43460-19658 |
CT197 ｱﾘ(ABS) |
1 | ||
| 43460-29150 |
CT197 |
1 | ||
| 43460-19659 |
CT197 |
1 | ||
| 43460-19658 |
CT197 |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12020 |
CT190,196,197 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 90949-01947 |
CT197 内径=35.45 |
1 | ||
| 42345-14010 |
CT197 内径=35.75 |
1 | ||
(0104- )
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-12660 |
CT197 |
1 | ||
| 04438-20132 |
CT197 ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-12470 |
CT197 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-12060 |
CT197 |
1 | ||
| 41336-32020 |
CT190,196,197,ST190,191 |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-20010 |
CT190,196,197,ST190,191 |
1 | ||
| 43040-32040 |
CT197 |
1 | ||
| 43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2 | ||||
| 43247-33010 |
CT19#,ET196,ST19# |
1 | ||
| 43247-12010 |
CT19#,ET196,ST198 |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-22005 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-20302 |
CT197 ｱﾘ(ABS) |
1 | ||
| 43420-20293 |
CT197 |
1 | ||
| 43420-20303 |
CT197 |
1 | ||
| 43420-20303 |
CT197 ｱﾘ(ABS) |
1 | ||
| 43420-20304 |
CT197 |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-27005 |
CT190,196,197,ST190,191 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-35048 |
CT197..5F |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-14010 |
CT19#,ST19# |
1 | ||
| 42345-20100 |
CT19#,ST198 内径=31.1 |
1 | ||
| 42345-12150 |
CT19#,ST198 内径=29.6 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 90949-01076 |
CT19#,ST19# 内径=92.2 |
1 | ||
| 42345-20120 |
CT19#,ST198 内径=90.6 |
1 | ||
| 42345-12140 |
CT19#,ST198 内径=92.0 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-16010 |
CT19#,ET196,ST19# |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01076 |
CT197 内径=92.2 |
1 | ||
| 42345-12160 |
CT19#,ET196,ST198 |
1 | ||
| 90949-01946 |
CT197 内径=91.9 |
1 | ||
| 90949-01076 |
CT19#,ET196,ST19# |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-29250 |
CT197 ｱﾘ(ABS) |
1 | ||
| 43470-29230 |
CT197 |
1 | ||
| 43470-29251 |
CT197 |
1 | ||
| 43470-29249 |
CT197 ｱﾘ(ABS) |
1 | ||
| 43470-29250 |
CT197 |
1 | ||
