CT197V-DXMNE (1998)

Toyota Caldina

Production May 1998 - Jun 2002
Engine 3CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )3CE

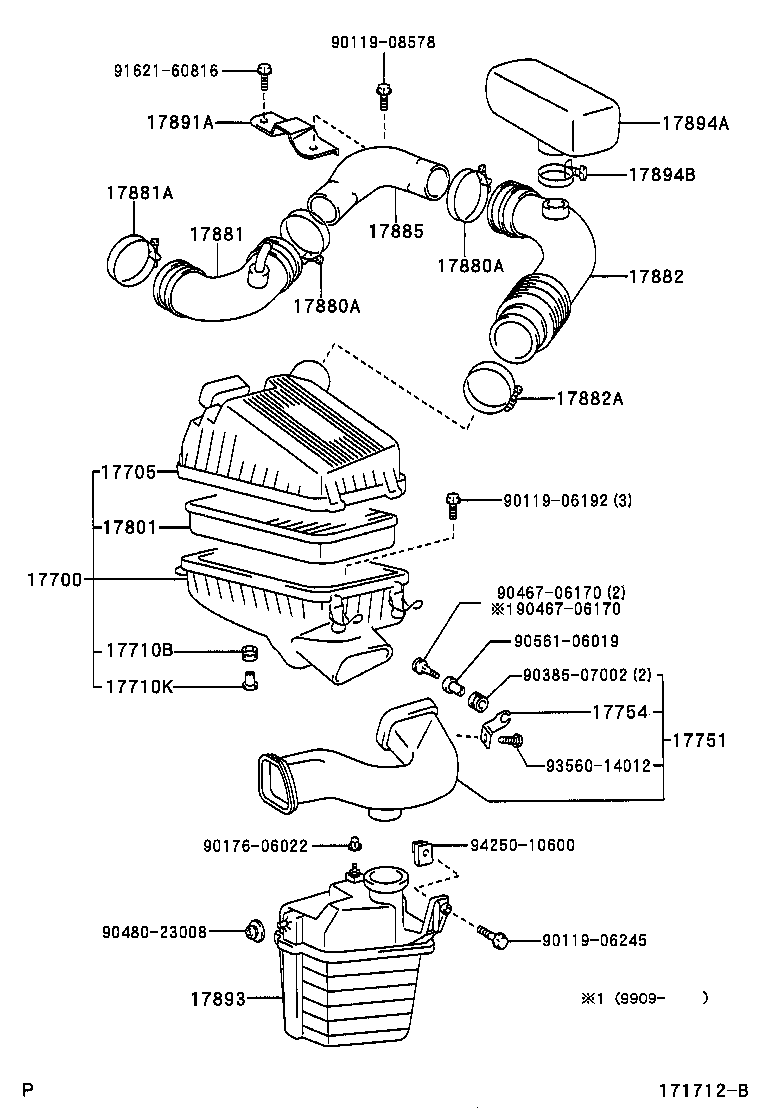

Click highlighted areas on diagram

diagram 17700 17705 17710B 17710K 17751 17754 17801 17880A 17880A 17881 17881A 17882 17882A 17885 17891A 17893 17894A 17894B 9011906192 9011906245 9011908578 9017606022 9038507002 9046706170 9046706170 9048023008 9056106019 9162160816 9356014012 9425010600
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-64430

3CE..CT19#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-64300

3CE..CT19#

 1
17710B - GROMMET
90480-20027

2C#,3CE..CT19#

 3
17710K - COLLAR(FOR AIR CLEANER)
90387-11066

2C#,3CE..CT19#

 3
17751 - INLET, AIR CLEANER, NO.1
17751-64070

3CE..CT19#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-64070

2C,3CE..CT19#

 1
17880A - CLAMP, HOSE
96111-10630

3CE..CT19#

 2
17880A - CLAMP, HOSE
96111-10630

3CE..CT19#

 2
17881 - HOSE, AIR CLEANER, NO.1
17881-64360

3CE..CT19#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650

3CE..CT19#

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-64120

3CE..CT19#

 1
17885 - PIPE, AIR CLEANER
17885-64010

3CE..CT19#

 1
17891A - CLAMP, AIR CLEANER HOSE
17891-64020

3CE..CT19#

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-64080

3CE..CT19#

 1
17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
96111-10330

3CE..CT19#

 1
Common parts
90119-06192
90119-06245
90119-08578
90176-06022
90385-07002
90467-06170
90480-23008
90561-06019
91621-60816
93560-14012
94250-10600
