CT197V-DXMNE (1998)
Toyota Caldina
Production
May 1998
-
Jun 2002
Engine
3CE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )3CE..CT197

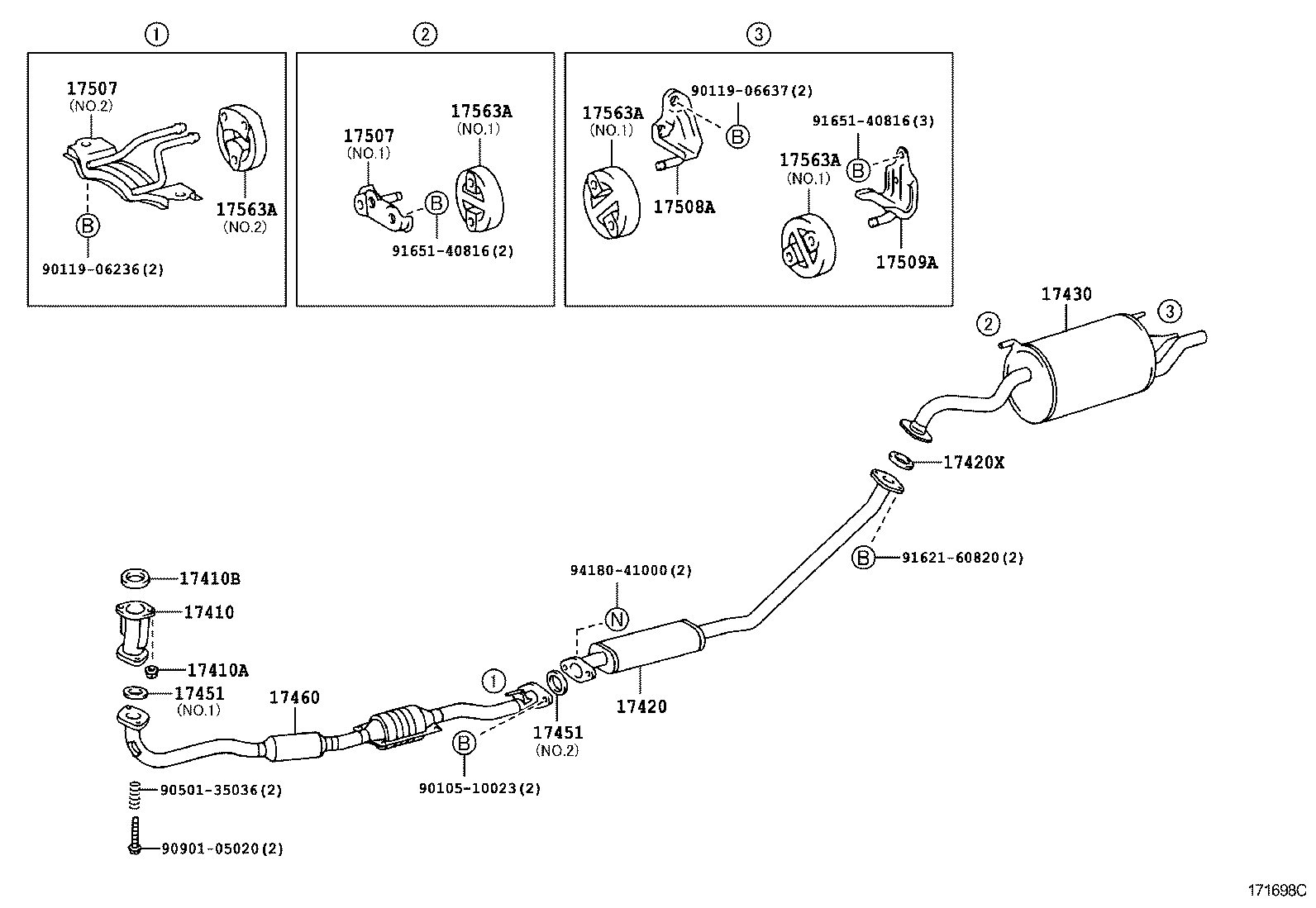

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-64850 |
3CE..CT197 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-64350 |
3CE..CT197 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06039 |
2C,3CE,5EFE,3SFE..CT196,197,198,199,ET196,ST198 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-6A380 |
3CE..CT197 |
1 | ||
| 17460 - CONVERTER ASSY, CATALYTIC W/PIPE | ||||
| 17460-64030 |
3CE..CT197 |
1 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17507-11050 |
3CE..CT19# NO.1 |
1 | ||
| 17507-64080 |
3CE..CT197 NO.2 |
1 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17507-11050 |
3CE..CT19# NO.1 |
1 | ||
| 17507-64080 |
3CE..CT197 NO.2 |
1 | ||
| 17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT | ||||
| 17508-11070 |
2C,3CE,5EFE..CT196,197,ET196 |
1 | ||
| 17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT | ||||
| 17509-11070 |
2C,3CE,5EFE..CT196,197,ET196 |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-64180 |
3CE..CT197 NO.2 |
1 | ||
| 17565-15140 |
3CE..CT197 NO.1 |
3 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-64180 |
3CE..CT197 NO.2 |
1 | ||
| 17565-15140 |
3CE..CT197 NO.1 |
3 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-64180 |
3CE..CT197 NO.2 |
1 | ||
| 17565-15140 |
3CE..CT197 NO.1 |
3 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-64180 |
3CE..CT197 NO.2 |
1 | ||
| 17565-15140 |
3CE..CT197 NO.1 |
3 | ||
| Common parts | ||||
| 90105-10023 | ||||
| 90119-06236 | ||||
| 90119-06637 | ||||
| 90501-35036 | ||||
| 90901-05020 | ||||
| 91621-60820 | ||||
| 91651-40816 | ||||
| 94180-41000 | ||||
