CT197V-DXMDE (1998)

Toyota Caldina

Production May 1998 - Jun 2002
Engine 3CE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

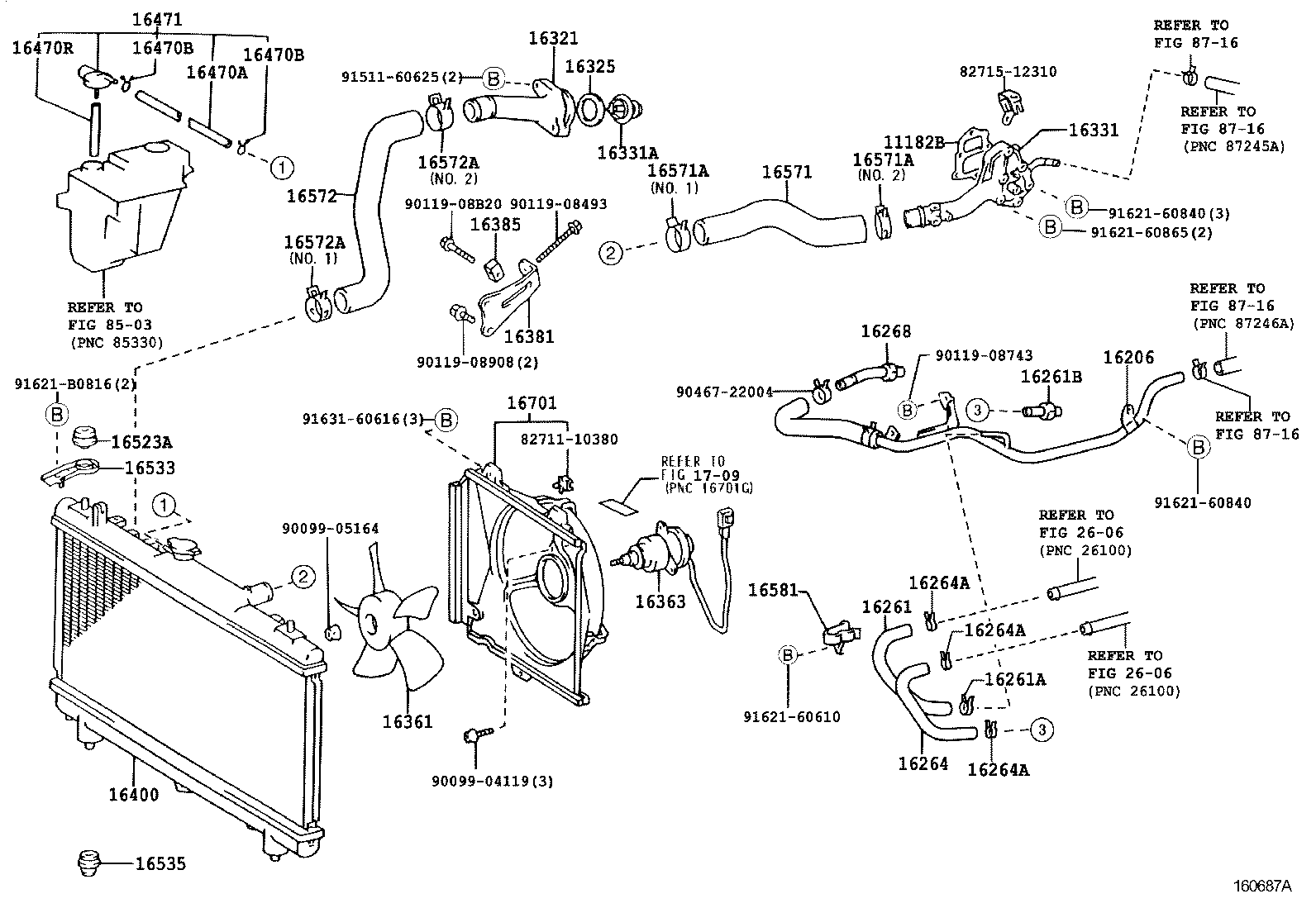

ILLUST NO. 1 OF 2(9805- )3CE

Click highlighted areas on diagram

diagram 11182B 16206 16261 16261A 16261B 16264 16264A 16264A 16264A 16268 16321 16325 16331 16331A 16361 16363 16381 16385 16400 16470A 16470B 16470B 16470R 16471 16523A 16533 16535 16571 16571A 16571A 16572 16572A 16572A 16581 16701 1709 2606 2606 8271110380 8271512310 8503 8716 8716 8716 8716 9009904119 9009905164 9011908493 9011908743 9011908908 9011908B20 9046722004 9151160625 9162160610 9162160840 9162160840 9162160865 91621B0816 9163160616
Part # Description Qty Price
16206 - PIPE SUB-ASSY, WATER BY-PASS
16206-64070

3CE..CT19#

 1
16261 - HOSE, WATER BY-PASS
16261-64140

3CE..CT19#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-15022

3CE..CT19#

 1
16261B - UNION(FOR WATER BY-PASS HOSE)
90404-53059

3CE..CT19#

 1
16264 - HOSE, WATER BY-PASS, NO.2
16264-64160

3CE..CT19#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13128

3CE..CT19#

 3
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13128

3CE..CT19#

 3
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-13128

3CE..CT19#

 3
16268 - PIPE, WATER BY-PASS, NO.1
16268-64100

3CE..CT19#

 1
16321 - INLET, WATER
16321-64020

2C#,3CE..CT19#

 1
16331 - OUTLET, WATER
16331-64150

3CE..CT19#

 1
16331A - THERMOSTAT
90916-03046

2C#,3CE..CT19#

*WAX 82−95

 1
16361 - FAN
16361-64060

3CE..CT19#

 1
16363 - MOTOR, COOLING FAN
16363-64140

3CE..CT19#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-64180

3CE..CT19#

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-64011

2C#,3CE..CT19#

 1
16400 - RADIATOR ASSY
16400-64861

3CE..CT197..5F

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2C#,3CE..CT19#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2C#,3CE..CT19#

 2
16571 - HOSE, RADIATOR, INLET
16571-64310

3CE..CT19#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37005

3CE..CT19#

NO.2

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37005

3CE..CT19#

NO.2

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37005

3CE..CT19#

NO.2

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-37005

3CE..CT19#

NO.2

 1
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-64010

3CE..CT19#

 1
16701 - SHROUD SUB-ASSY, FAN
16711-64450

3CE..CT19#

 1
Common parts
82711-10380
82715-12310
90099-04119
90099-05164
90119-08493
90119-08743
90119-08908
90119-08B20
90467-22004
91511-60625
91621-60610
91621-60840
91621-60865
91621-B0816
91631-60616
Linked diagrams
1709
2606
8503
8716
