CT196V-DXPNS (1992)
Toyota Caldina
Production
Nov 1992
-
May 1998
Engine
2C
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

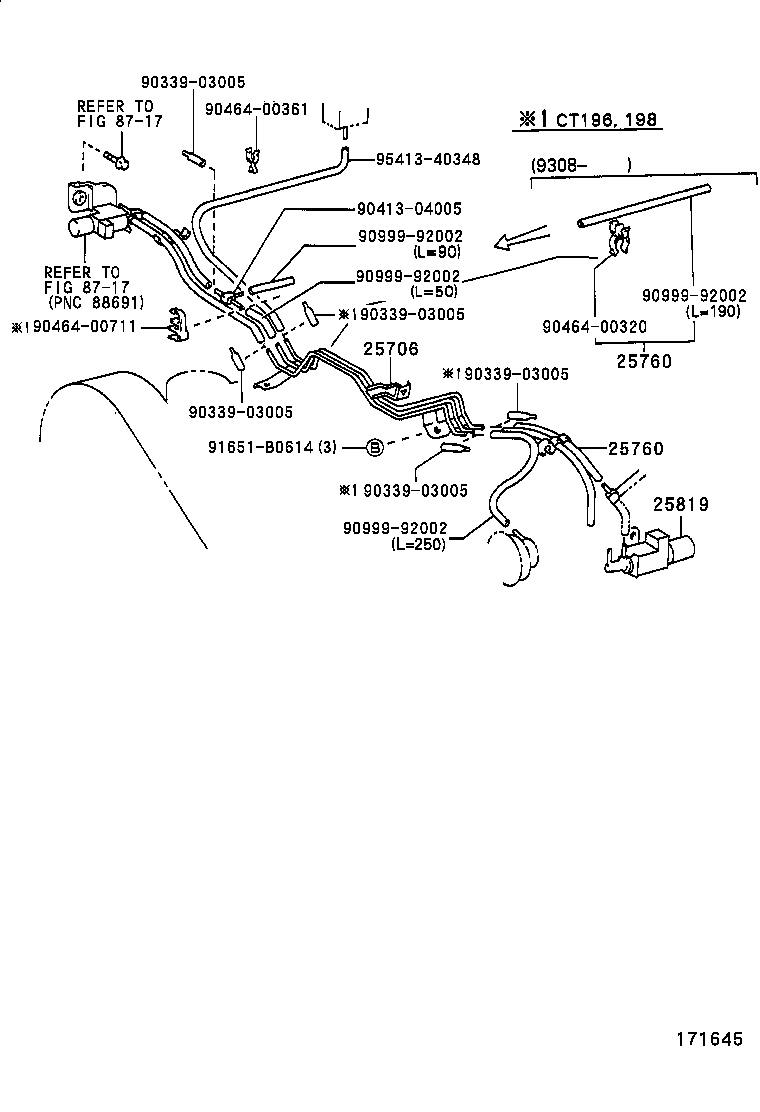

(9211-9601)2C
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-64070 |
2C..CT19# |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-64130 |
2C..CT196,198;2C..CT190..4FC 3 WAY X VACUUM PUMP |
1 | ||
| 25760-64060 |
2C..CT196..4FC ｱﾘ(EGR) |
1 | ||
| 25760-64130 |
2C..CT19# 3 WAY X VACUUM PUMP |
1 | ||
| 25760 - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-64130 |
2C..CT196,198;2C..CT190..4FC 3 WAY X VACUUM PUMP |
1 | ||
| 25760-64060 |
2C..CT196..4FC ｱﾘ(EGR) |
1 | ||
| 25760-64130 |
2C..CT19# 3 WAY X VACUUM PUMP |
1 | ||
| 25819 - VALVE ASSY, VACUUM REGULATING | ||||
| 25819-64030 |
2C..CT190;2C..CT196..4FC |
1 | ||
| 25819-64030 |
2C..CT190,196..4FC |
1 | ||
| 25819-64070 |
2CT..CT190;2C..CT196..4FC |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90464-00320 | ||||
| 90464-00361 | ||||
| 90464-00711 | ||||
| 90999-92002 | ||||
| 91651-B0614 | ||||
| 95413-40348 | ||||
| Linked diagrams | ||||
| 8717 | ||||

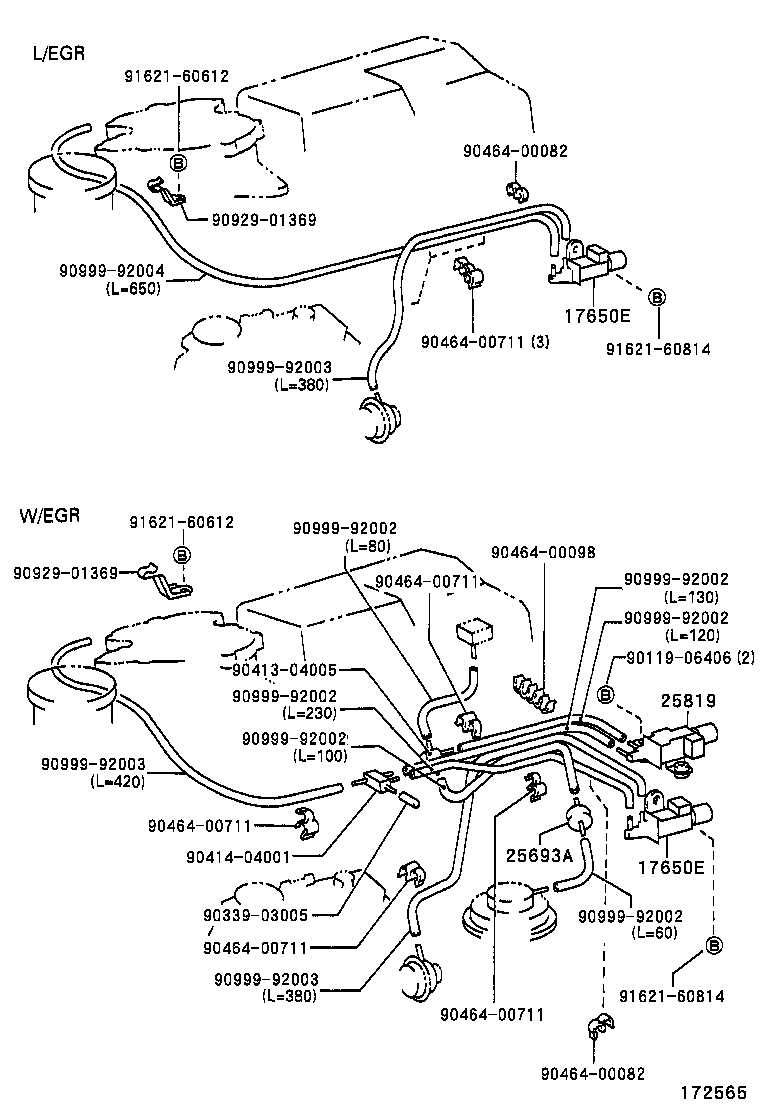

(9601-9805)2C
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 25860-64150 |
2C..CT196,198..U,UL ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 25860-64150 |
2C..CT196,198..U,UL ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 25693A - DAMPER, EGR VACUUM MODULATOR | ||||
| 25693-64010 |
2CT..CT190;2C..CT196..4FC |
1 | ||
| 25819 - VALVE ASSY, VACUUM REGULATING | ||||
| 25819-64030 |
2C..CT190;2C..CT196..4FC |
1 | ||
| 25819-64030 |
2C..CT190,196..4FC |
1 | ||
| 25819-64070 |
2CT..CT190;2C..CT196..4FC |
1 | ||
| Common parts | ||||
| 90119-06406 | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90464-00082 | ||||
| 90464-00098 | ||||
| 90464-00711 | ||||
| 90929-01369 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 91621-60612 | ||||
| 91621-60814 | ||||
