CT196V-DXPMS (1992)

Toyota Caldina

Production Nov 1992 - May 1998
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )

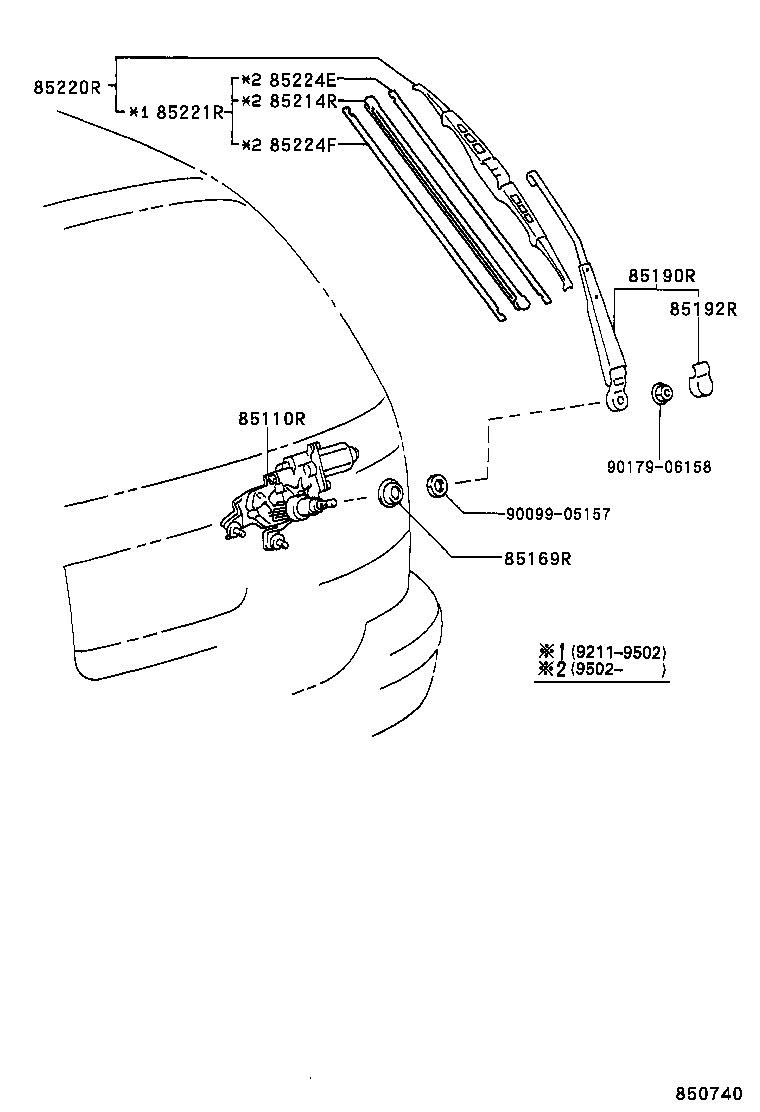

Click highlighted areas on diagram

diagram 85110R 85169R 85190R 85192R 85214R 85220R 85221R 85224E 85224F 9009905157 9017906158
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-21020

AT191,CT19#,ET196,ST19#

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85134-21020

AT191,CT19#,ET196,ST19#

 1
85190R - ARM ASSY, REAR WIPER
85241-21020

AT191,CT19#,ET196,ST19#

 1
85192R - COVER, REAR WIPER ARM
85192-13060

AT191,CT19#,ET196,ST19#

 1
85220R - BLADE ASSY, REAR WIPER
85242-21010

AT191,CT19#,ET196,ST19#

 1
85291-60060

CT196,197,198,199,ET196,ST198

ｳｲﾝﾀ- ﾌﾞﾚ-ﾄﾞ

 1
85221R - BLADE, REAR WIPER
85243-36010

CT19#,ET196,ST19#

 1
Common parts
90099-05157
90179-06158
