CT196V-DXPDS (1992)
Toyota Caldina
(9211-9601)

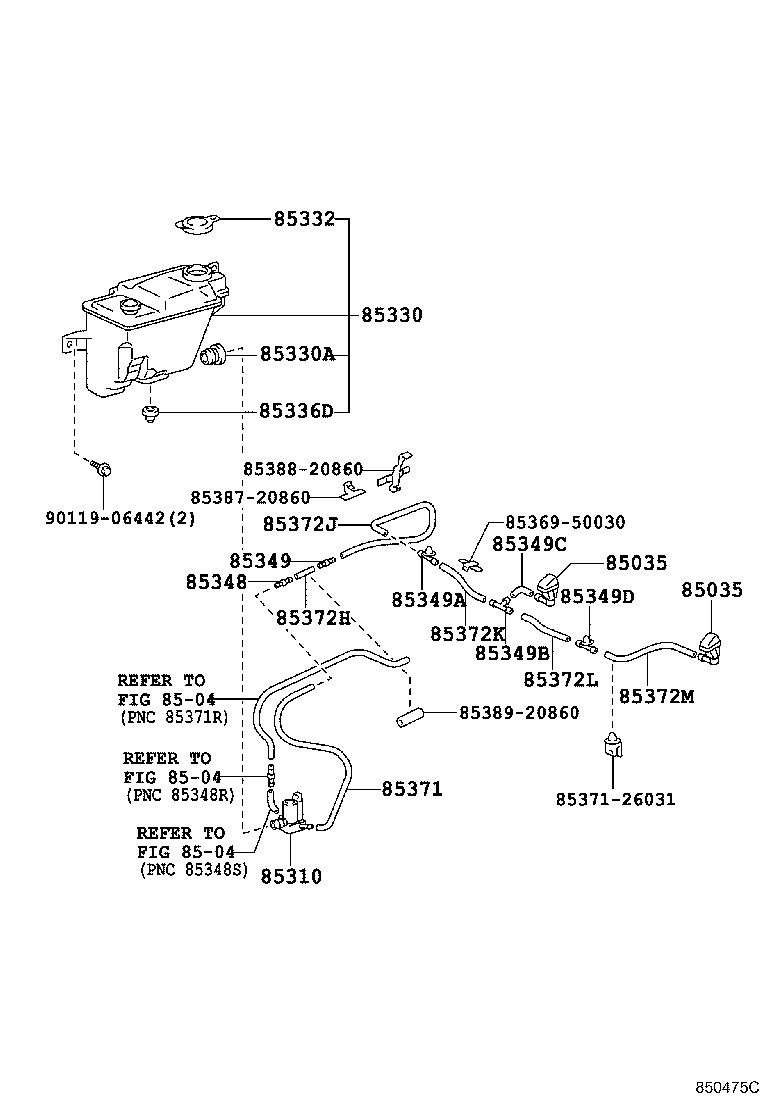

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-20020 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 85381-12050 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 85381-12050 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 85382-20020 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-20020 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 85381-12050 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 85381-12050 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 85382-20020 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20210 |
CT196,198,ET196..U |
1 | ||
| 85330-10290 |
AT191,CT19#,ET196,ST19# ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 85330-10280 |
CT196,197,198,199,ET196,ST198..U |
1 | ||
| 85330-12280 |
CT196,198,ET196..U ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-20330 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 85315-20330 |
CT196,ST19#;CT190,198,ET196..3FC,5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 85315-20470 |
CT196,ST19#;CT190,198,ET196..3FC,5F |
1 | ||
| 85315-20470 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85315-20390 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 90099-32089 |
CT19#,ET196,ST19# |
1 | ||
| 90099-32089 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-20340 |
CT19#,ET196,ST19# |
1 | ||
| 85316-20300 |
CT19#,ET196,ST19# |
1 | ||
| 85316-12290 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-20340 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
CT196,198,ET196..U ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
2 | ||
| 85349-89122 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85349-89122 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85349-89122 |
CT196,198,ET196..U |
1 | ||
| 85349-89122 |
CT19#,ET196,ST19# |
1 | ||
| 85349-89122 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
2 | ||
| 85349-89122 |
CT19#,ET196,ST198 |
1 | ||
| 85349-89122 |
AT191,CT19#,ET196,ST19# |
2 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-10260 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85375-10260 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-20800 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-28110 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85355-14481 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349D - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-17050 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85361 - HOLDER, WINDSHIELD WASHER | ||||
| 85361-20830 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 85361-20840 |
CT196,ST19#;CT190,198,ET196..3FC,5F |
1 | ||
| 85361-20840 |
CT196,ST19#;CT190,198,ET196..3FC,5F |
1 | ||
| 85361-20830 |
CT196,ST19#;CT190,198,ET196..3FC,5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 85361-20830 |
CT196,ST19#;CT190,198,ET196..3FC,5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
CT196,ST19#;CT190,198,ET196..3FC,5F *H,L=360 |
1 | ||
| 90446-07001 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX *H,L=360 |
1 | ||
| 90446-07001 |
CT19#,ET196,ST198 *H,L=530 |
1 | ||
| 90446-07001 |
CT196,198,ET196..U *H,L=480,ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 90446-07001 |
CT196,198,ET196..U *H,L=530 |
1 | ||
| 90446-07001 |
AT191,CT19#,ET196,ST19# *H,L=480 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=30 |
1 | ||
| 90099-33080 |
AT191,CT19#,ET196,ST19# *H,L=30 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=1130 |
1 | ||
| 90446-07001 |
AT191,CT19#,ET196,ST19# *H,L=1130 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90446-07001 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=310 |
1 | ||
| 90446-07001 |
AT191,CT19#,ET196,ST19# *H,L=310 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90446-07001 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=230 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33080 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=355 |
1 | ||
| Common parts | ||||
| 82817-2A290 | ||||
| 85369-50030 | ||||
| 85387-20860 | ||||
| 85388-20860 | ||||
| 90119-06442 | ||||
| 91651-B0612 | ||||
(9211-9601)
ｶﾝﾚｲﾁ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-20020 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 85381-12050 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 85381-12050 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 85382-20020 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-20020 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 85381-12050 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 85381-12050 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 85382-20020 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20210 |
CT196,198,ET196..U |
1 | ||
| 85330-10290 |
AT191,CT19#,ET196,ST19# ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 85330-10280 |
CT196,197,198,199,ET196,ST198..U |
1 | ||
| 85330-12280 |
CT196,198,ET196..U ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-20330 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 85315-20330 |
CT196,ST19#;CT190,198,ET196..3FC,5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 85315-20470 |
CT196,ST19#;CT190,198,ET196..3FC,5F |
1 | ||
| 85315-20470 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85315-20390 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 90099-32089 |
CT19#,ET196,ST19# |
1 | ||
| 90099-32089 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-20340 |
CT19#,ET196,ST19# |
1 | ||
| 85316-20300 |
CT19#,ET196,ST19# |
1 | ||
| 85316-12290 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-20340 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
CT196,198,ET196..U ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
2 | ||
| 85349-89122 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85349-89122 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85349-89122 |
CT196,198,ET196..U |
1 | ||
| 85349-89122 |
CT19#,ET196,ST19# |
1 | ||
| 85349-89122 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
2 | ||
| 85349-89122 |
CT19#,ET196,ST198 |
1 | ||
| 85349-89122 |
AT191,CT19#,ET196,ST19# |
2 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
CT19#,ET196,ST19# |
1 | ||
| 85355-14481 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85355-14481 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85349-89122 |
CT19#,ET196,ST19# |
1 | ||
| 85349-89122 |
CT19#,ET196,ST19# |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-10260 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85375-10260 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-20800 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-28110 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85355-14481 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349D - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-17050 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85361 - HOLDER, WINDSHIELD WASHER | ||||
| 85361-20830 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 85361-20840 |
CT196,ST19#;CT190,198,ET196..3FC,5F |
1 | ||
| 85361-20840 |
CT196,ST19#;CT190,198,ET196..3FC,5F |
1 | ||
| 85361-20830 |
CT196,ST19#;CT190,198,ET196..3FC,5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 85361-20830 |
CT196,ST19#;CT190,198,ET196..3FC,5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90446-07001 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=360 |
1 | ||
| 90446-07001 |
CT19#,ET196,ST19# *H,L=360 |
1 | ||
| 90446-07001 |
CT19#,ET196,ST19# *H,L=360 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=30 |
1 | ||
| 90099-33080 |
AT191,CT19#,ET196,ST19# *H,L=30 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=1130 |
1 | ||
| 90446-07001 |
AT191,CT19#,ET196,ST19# *H,L=1130 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90446-07001 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=310 |
1 | ||
| 90446-07001 |
AT191,CT19#,ET196,ST19# *H,L=310 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90446-07001 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=230 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33080 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=355 |
1 | ||
| Common parts | ||||
| 82817-2A290 | ||||
| 85369-50030 | ||||
| 85387-20860 | ||||
| 85388-20860 | ||||
| 90119-06442 | ||||
| 91651-B0612 | ||||

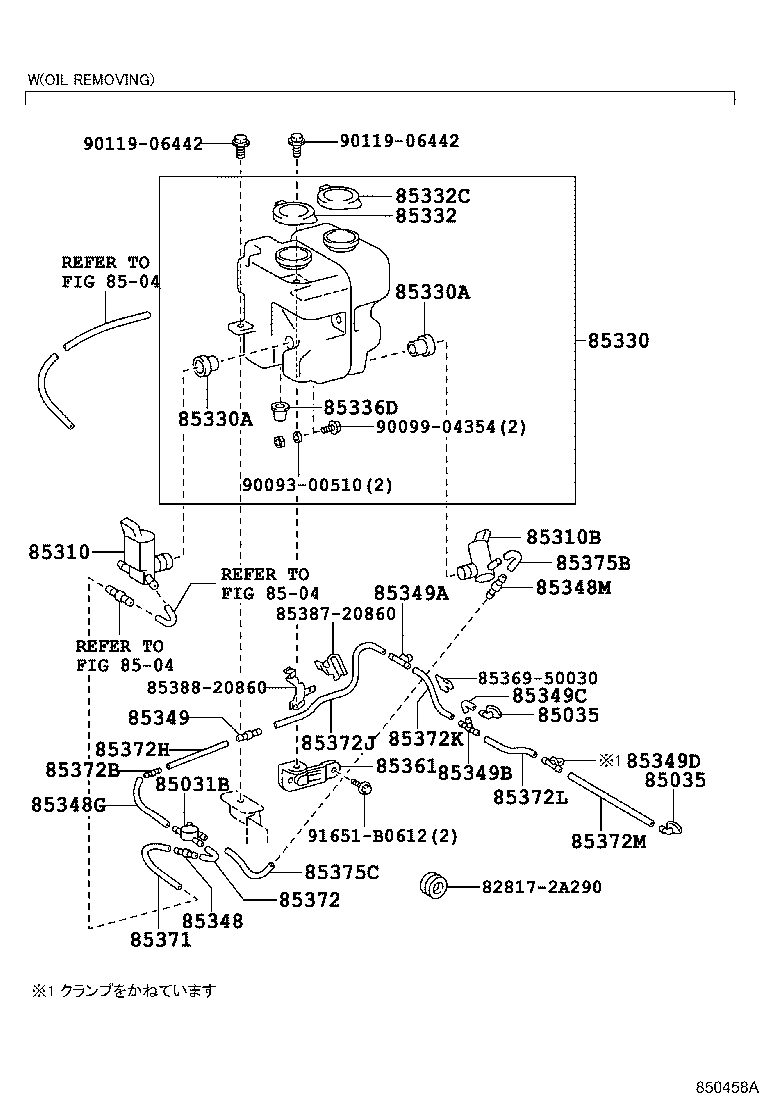

(9211-9402)
ｱﾘ(ﾕﾏｸﾄﾘ ｳｵﾂｼﾔ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-20020 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 85381-12050 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 85381-12050 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 85382-20020 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-20020 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 85381-12050 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 85381-12050 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 85382-20020 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20210 |
CT196,198,ET196..U |
1 | ||
| 85330-10290 |
AT191,CT19#,ET196,ST19# ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 85330-10280 |
CT196,197,198,199,ET196,ST198..U |
1 | ||
| 85330-12280 |
CT196,198,ET196..U ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-20330 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 85315-20330 |
CT196,ST19#;CT190,198,ET196..3FC,5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 85315-20470 |
CT196,ST19#;CT190,198,ET196..3FC,5F |
1 | ||
| 85315-20470 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85315-20390 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 90099-32089 |
CT19#,ET196,ST19# |
1 | ||
| 90099-32089 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 90099-32089 |
CT19#,ET196,ST19# |
1 | ||
| 90099-32089 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-20340 |
CT19#,ET196,ST19# |
1 | ||
| 85316-20300 |
CT19#,ET196,ST19# |
1 | ||
| 85316-12290 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-20340 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
CT196,198,ET196..U ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
2 | ||
| 85349-89122 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85349-89122 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85349-89122 |
CT196,198,ET196..U |
1 | ||
| 85349-89122 |
CT19#,ET196,ST19# |
1 | ||
| 85349-89122 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
2 | ||
| 85349-89122 |
CT19#,ET196,ST198 |
1 | ||
| 85349-89122 |
AT191,CT19#,ET196,ST19# |
2 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85349-89122 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85349-89122 |
CT19#,ET196,ST19# |
1 | ||
| 85349-89122 |
CT19#,ET196,ST19# |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-10260 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85375-10260 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-20800 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-28110 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85355-14481 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349D - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-17050 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85361 - HOLDER, WINDSHIELD WASHER | ||||
| 85361-20830 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 85361-20840 |
CT196,ST19#;CT190,198,ET196..3FC,5F |
1 | ||
| 85361-20840 |
CT196,ST19#;CT190,198,ET196..3FC,5F |
1 | ||
| 85361-20830 |
CT196,ST19#;CT190,198,ET196..3FC,5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 85361-20830 |
CT196,ST19#;CT190,198,ET196..3FC,5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
CT196,ST19#;CT190,198,ET196..3FC,5F *H,L=360 |
1 | ||
| 90446-07001 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX *H,L=360 |
1 | ||
| 90446-07001 |
CT19#,ET196,ST198 *H,L=530 |
1 | ||
| 90446-07001 |
CT196,198,ET196..U *H,L=480,ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 90446-07001 |
CT196,198,ET196..U *H,L=530 |
1 | ||
| 90446-07001 |
AT191,CT19#,ET196,ST19# *H,L=480 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90446-07001 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=360 |
1 | ||
| 90446-07001 |
CT19#,ET196,ST19# *H,L=360 |
1 | ||
| 90446-07001 |
CT19#,ET196,ST19# *H,L=360 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=30 |
1 | ||
| 90099-33080 |
AT191,CT19#,ET196,ST19# *H,L=30 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=1130 |
1 | ||
| 90446-07001 |
AT191,CT19#,ET196,ST19# *H,L=1130 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90446-07001 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=310 |
1 | ||
| 90446-07001 |
AT191,CT19#,ET196,ST19# *H,L=310 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90446-07001 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=230 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33080 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=355 |
1 | ||
| Common parts | ||||
| 82817-2A290 | ||||
| 85369-50030 | ||||
| 85387-20860 | ||||
| 85388-20860 | ||||
| 90093-00510 | ||||
| 90099-04354 | ||||
| 90119-06442 | ||||
| 91651-B0612 | ||||
| Linked diagrams | ||||
| 8504 | ||||
(9601-9711)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-20020 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 85381-12050 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 85381-12050 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 85382-20020 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-20020 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 85381-12050 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 85381-12050 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 85382-20020 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20210 |
CT196,198,ET196..U |
1 | ||
| 85330-10290 |
AT191,CT19#,ET196,ST19# ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 85330-10280 |
CT196,197,198,199,ET196,ST198..U |
1 | ||
| 85330-12280 |
CT196,198,ET196..U ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-20330 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 85315-20330 |
CT196,ST19#;CT190,198,ET196..3FC,5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 85315-20470 |
CT196,ST19#;CT190,198,ET196..3FC,5F |
1 | ||
| 85315-20470 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85315-20390 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 90099-32089 |
CT19#,ET196,ST19# |
1 | ||
| 90099-32089 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-20340 |
CT19#,ET196,ST19# |
1 | ||
| 85316-20300 |
CT19#,ET196,ST19# |
1 | ||
| 85316-12290 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-20340 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
CT196,198,ET196..U ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
2 | ||
| 85349-89122 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85349-89122 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85349-89122 |
CT196,198,ET196..U |
1 | ||
| 85349-89122 |
CT19#,ET196,ST19# |
1 | ||
| 85349-89122 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
2 | ||
| 85349-89122 |
CT19#,ET196,ST198 |
1 | ||
| 85349-89122 |
AT191,CT19#,ET196,ST19# |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
CT196,198,ET196..U ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
2 | ||
| 85349-89122 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85349-89122 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85349-89122 |
CT196,198,ET196..U |
1 | ||
| 85349-89122 |
CT19#,ET196,ST19# |
1 | ||
| 85349-89122 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
2 | ||
| 85349-89122 |
CT19#,ET196,ST198 |
1 | ||
| 85349-89122 |
AT191,CT19#,ET196,ST19# |
2 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
CT19#,ET196,ST19# |
1 | ||
| 85355-14481 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85355-14481 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-10260 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85375-10260 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-20800 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-28110 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85355-14481 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349D - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-17050 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
CT196,ST19#;CT190,198,ET196..3FC,5F *H,L=360 |
1 | ||
| 90446-07001 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX *H,L=360 |
1 | ||
| 90446-07001 |
CT19#,ET196,ST198 *H,L=530 |
1 | ||
| 90446-07001 |
CT196,198,ET196..U *H,L=480,ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 90446-07001 |
CT196,198,ET196..U *H,L=530 |
1 | ||
| 90446-07001 |
AT191,CT19#,ET196,ST19# *H,L=480 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=30 |
1 | ||
| 90099-33080 |
AT191,CT19#,ET196,ST19# *H,L=30 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=1130 |
1 | ||
| 90446-07001 |
AT191,CT19#,ET196,ST19# *H,L=1130 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90446-07001 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=310 |
1 | ||
| 90446-07001 |
AT191,CT19#,ET196,ST19# *H,L=310 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90446-07001 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=230 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33080 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=355 |
1 | ||
| Common parts | ||||
| 85369-50030 | ||||
| 85387-20860 | ||||
| 85388-20860 | ||||
| 90119-06442 | ||||
| Linked diagrams | ||||
| 8504 | ||||
(9711- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-20020 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 85381-12050 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 85381-12050 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 85382-20020 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-20020 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 85381-12050 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 85381-12050 |
CT19#,ET196,ST19# 右側 |
1 | ||
| 85382-20020 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20210 |
CT196,198,ET196..U |
1 | ||
| 85330-10290 |
AT191,CT19#,ET196,ST19# ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 85330-10280 |
CT196,197,198,199,ET196,ST198..U |
1 | ||
| 85330-12280 |
CT196,198,ET196..U ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-20330 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 85315-20330 |
CT196,ST19#;CT190,198,ET196..3FC,5F ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
1 | ||
| 85315-20470 |
CT196,ST19#;CT190,198,ET196..3FC,5F |
1 | ||
| 85315-20470 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85315-20390 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 90099-32089 |
CT19#,ET196,ST19# |
1 | ||
| 90099-32089 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-20340 |
CT19#,ET196,ST19# |
1 | ||
| 85316-20300 |
CT19#,ET196,ST19# |
1 | ||
| 85316-12290 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85336D - PACKING, WINDSHIELD WASHER JAR | ||||
| 85336-20340 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
CT196,198,ET196..U ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
2 | ||
| 85349-89122 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85349-89122 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85349-89122 |
CT196,198,ET196..U |
1 | ||
| 85349-89122 |
CT19#,ET196,ST19# |
1 | ||
| 85349-89122 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX ｶﾝﾚｲﾁ ｼﾖｳ OR ｶｺﾞｼﾏ ｼﾖｳ |
2 | ||
| 85349-89122 |
CT19#,ET196,ST198 |
1 | ||
| 85349-89122 |
AT191,CT19#,ET196,ST19# |
2 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85375-10260 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX |
1 | ||
| 85375-10260 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-20800 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-28110 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85355-14481 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85349D - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85375-17050 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
CT196,ST19#;CT190,198,ET196..3FC,5F *H,L=360 |
1 | ||
| 90446-07001 |
CT190,198,ET196..3FC,5F;CT196,ST19#..CZ,FZ,U,UL,UX *H,L=360 |
1 | ||
| 90446-07001 |
CT19#,ET196,ST198 *H,L=530 |
1 | ||
| 90446-07001 |
CT196,198,ET196..U *H,L=480,ｱﾘ(ｶﾝｹﾂ ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 90446-07001 |
CT196,198,ET196..U *H,L=530 |
1 | ||
| 90446-07001 |
AT191,CT19#,ET196,ST19# *H,L=480 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=30 |
1 | ||
| 90099-33080 |
AT191,CT19#,ET196,ST19# *H,L=30 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90446-07001 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=1130 |
1 | ||
| 90446-07001 |
AT191,CT19#,ET196,ST19# *H,L=1130 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90446-07001 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=310 |
1 | ||
| 90446-07001 |
AT191,CT19#,ET196,ST19# *H,L=310 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90446-07001 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=230 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33080 |
CT19#,ET196,ST19#..CZ,FZ,U,UL,UX *H,L=355 |
1 | ||
| Common parts | ||||
| 85369-50030 | ||||
| 85371-26031 | ||||
| 85387-20860 | ||||
| 85388-20860 | ||||
| 85389-20860 | ||||
| 90119-06442 | ||||
| Linked diagrams | ||||
| 8504 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
