CT196V-DXPDS (1992)
Toyota Caldina

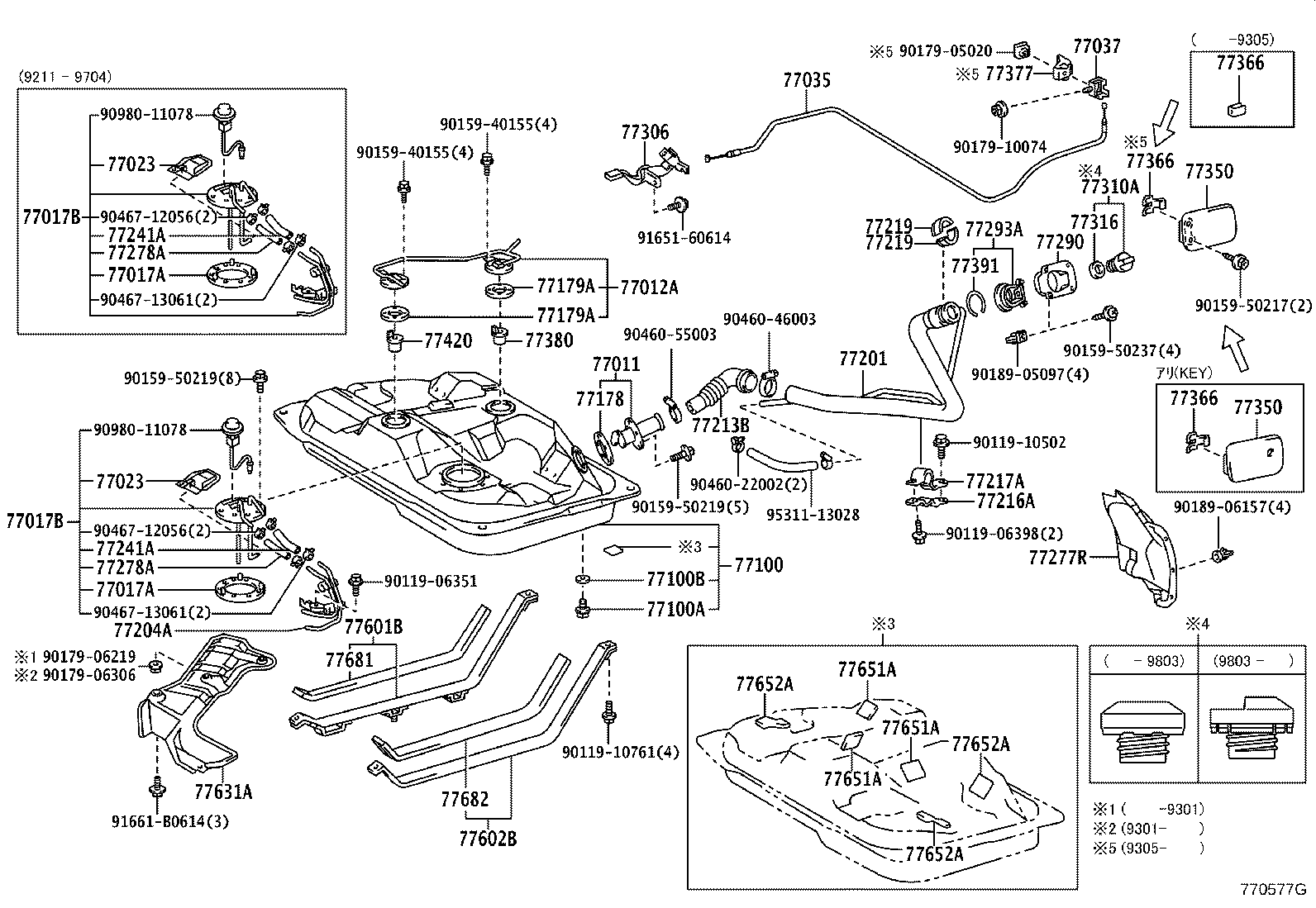

ILLUST NO. 1 OF 2(9211- )CT196,197
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-12090 |
CT196,197,ET196 |
1 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-21030 |
CT196,197 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-12030 |
CT196,197 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-12030 |
CT196,197 |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-21020 |
CT196 |
1 | ||
| 77017-21021 |
CT196,197 |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-21020 |
CT196 |
1 | ||
| 77017-21021 |
CT196,197 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32040 |
CT19# |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32040 |
CT19# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-21902 |
CT196,197,ET196 |
1 | ||
| 77001-21901 |
CT196,ET196 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
CT190,196,ET196,ST190,191 |
1 | ||
| 90341-20004 |
CT19#,ET196,ST190,191 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
CT190,196,ET196,ST190,191 |
1 | ||
| 90430-20007 |
CT19#,ET196,ST190,191 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
CT196,197,198,199,ET196,ST198 |
2 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
CT196,197,198,199,ET196,ST198 |
2 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-21050 |
CT196,197,ET196 |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-12010 |
CT196,197 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-13070 |
CT196,197,ET196 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-13030 |
CT196,197,ET196 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-13010 |
CT196,197,ET196 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
CT19#,ET196,ST19# |
2 | ||
| 77219-32030 |
AT191,CT19#,ET196,ST191,198 |
2 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-32030 |
CT19#,ET196,ST19# |
2 | ||
| 77219-32030 |
AT191,CT19#,ET196,ST191,198 |
2 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
CT196 *H,L=110,内径=7.6 |
1 | ||
| 95333-08020 |
CT196,197 *H,L=120,内径=7.6 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
CT196 *H,L=110,内径=7.6 |
1 | ||
| 95333-08020 |
CT196,197 *H,L=120,内径=7.6 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-21010 |
CT196,197,198,199,ET196,ST198 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
CT196,197 *H,L=110 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
CT196,197 *H,L=110 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-21010 |
CT196,197,198,199,ET196,ST198..U |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-21040 |
CT196,197,198,199,ET196,ST198..U |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-12150 |
CT19# |
1 | ||
| 77310-32011 |
CT19# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-21010 |
CT196,197,198,199,ET196,ST198..U ｱﾘ(KEY) |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-21010 |
CT196,197,198,199,ET196,ST198..U ｱﾘ(KEY) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-20030 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 77360-20030 |
CT196,198,ET196..U |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-20030 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 77360-20030 |
CT196,198,ET196..U |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-20030 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 77360-20030 |
CT196,198,ET196..U |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
CT196,197,198,199,ET196,ST195,198 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-20020 |
CT19#,ET196,ST19# |
1 | ||
| 77391-20020 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 77391-20020 |
CT196,198,ET196 |
1 | ||
| 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 | ||||
| 77420-26010 |
CT196,197,198,199,ET196,ST198 |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-21010 |
CT196,197,ET196 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-21010 |
CT196,197,ET196 |
1 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-21010 |
CT196,197,ET196 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
CT196,197,ET196 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
CT196,197,ET196 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
CT196,197,ET196 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
CT196,197,ET196 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
CT196,197,ET196 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
CT196,197,ET196 |
3 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-12010 |
CT196,197,ET196 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32060 |
CT196,ET196,ST195 |
1 | ||
| 77681-32060 |
AT191,CT190,196,197,ET196,ST190,191,195 |
1 | ||
| Common parts | ||||
| 90119-06351 | ||||
| 90119-06398 | ||||
| 90119-10502 | ||||
| 90119-10761 | ||||
| 90159-40155 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90159-50237 | ||||
| 90179-05020 | ||||
| 90179-06219 | ||||
| 90179-06306 | ||||
| 90179-10074 | ||||
| 90189-05097 | ||||
| 90189-06157 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90460-55003 | ||||
| 90467-12056 | ||||
| 90467-13061 | ||||
| 90980-11078 | ||||
| 91651-60614 | ||||
| 91661-B0614 | ||||
| 95311-13028 | ||||

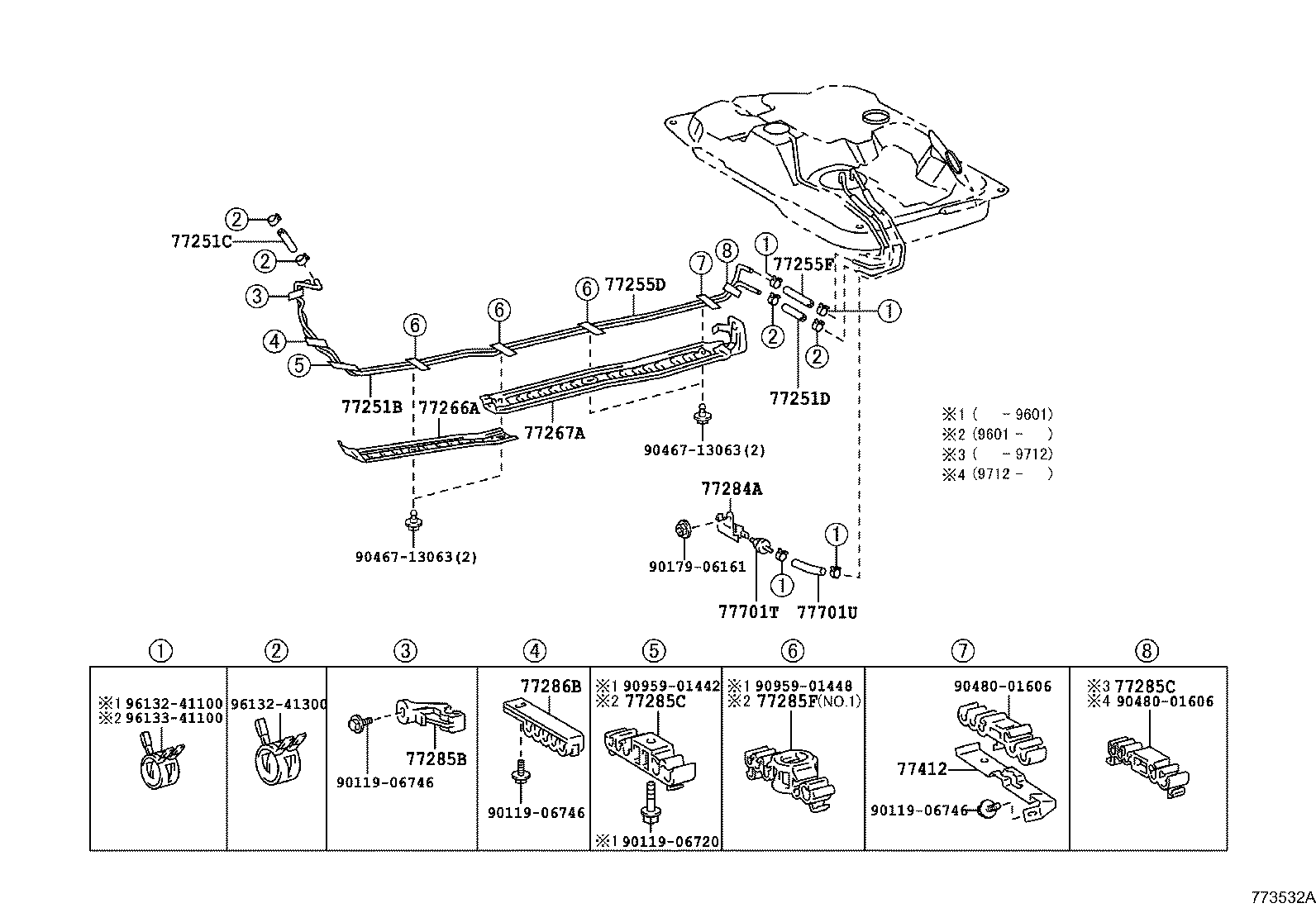

ILLUST NO. 2 OF 2(9211- )CT196,197
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-21090 |
CT196 |
1 | ||
| 77251-21120 |
CT196,197 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95333-08020 |
CT19# *H,L=180,内径=7.6 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95333-08020 |
CT196,197 *H,L=110,内径=7.6 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-21030 |
CT196 |
1 | ||
| 77255-21060 |
CT196,197 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06020 |
CT196,197 *H,L=120 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-20120 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-21010 |
CT196,197,198,199,ET196,ST198 |
1 | ||
| 77284A - PROTECTOR, FUEL TUBE, NO.3 | ||||
| 77284-32020 |
CT196,197 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-20120 |
CT19# |
1 | ||
| 77285-20090 |
CT19# |
1 | ||
| 77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN) | ||||
| 77285-12020 |
CT19#,ET196,ST198 |
1 | ||
| 77285-12020 |
CT196,ET196 |
1 | ||
| 77285-12020 |
CT196,ET196 |
2 | ||
| 77285C - CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN) | ||||
| 77285-12020 |
CT19#,ET196,ST198 |
1 | ||
| 77285-12020 |
CT196,ET196 |
1 | ||
| 77285-12020 |
CT196,ET196 |
2 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77298-12030 |
CT19# |
3 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-20090 |
AT191,CT19#,ET196,ST191,195 |
1 | ||
| 77286-20070 |
CT19#,ET196,ST19# |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-20040 |
CT19#,ET196,ST19# |
1 | ||
| 77412-20040 |
CT19#,ET196,ST19# |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10082 |
CT19# |
1 | ||
| 90917-10082 |
CT190,196 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06030 |
CT196,197 *H,L=260 |
1 | ||
| Common parts | ||||
| 90119-06720 | ||||
| 90119-06746 | ||||
| 90179-06161 | ||||
| 90467-13063 | ||||
| 90480-01606 | ||||
| 90959-01442 | ||||
| 90959-01448 | ||||
| 96132-41100 | ||||
| 96132-41300 | ||||
| 96133-41100 | ||||
