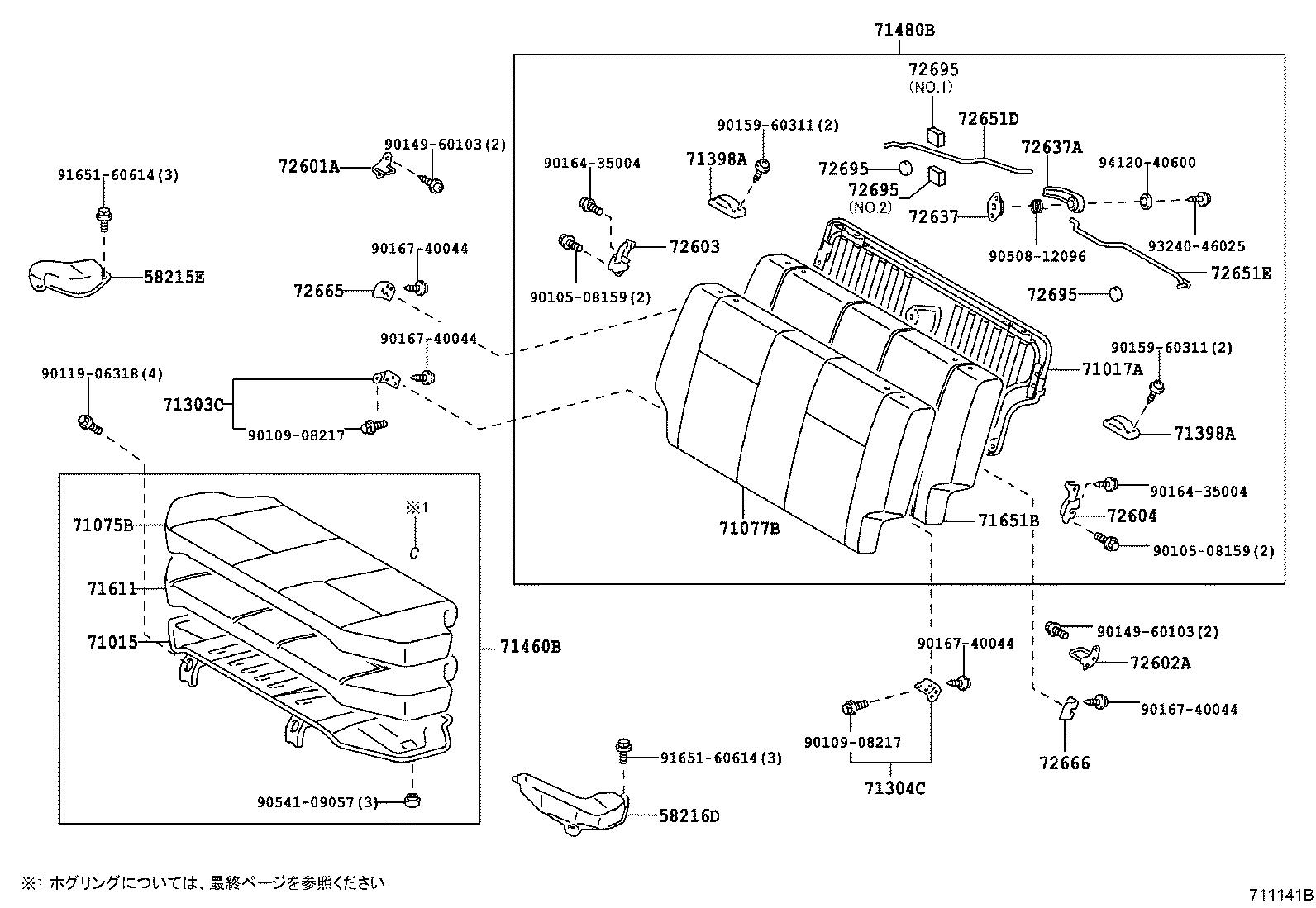

Toyota Caldina CT196 REAR SEAT & SEAT TRACK

Part #	Description	Period	Qty
58215E - BRACKET, REAR SEAT MOUNTING, RH
58215-13030	CT196,197,198,199,ET196,ST198	11/1992 - 12/2999	1
58216D - BRACKET, REAR SEAT MOUNTING, LH
58216-13030	CT196,197,198,199,ET196,ST198	11/1992 - 12/2999	1
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-21020	CT196,197,198,199,ET196,ST198	11/1992 - 12/2999	1
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-13120	CT196,197,198,199,ET196,ST198	11/1992 - 12/2999	1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-21240B2	CT196,198,ET196..U GRAY,TRIM1#	02/1994 - 01/1996	1
71075-21240B1	CT196,198,ET196..U GRAY,TRIM2#	11/1992 - 02/1994	1
71075-21241B2	CT196,198,ET196..U SHADOW GRAY,TRIM1#	01/1996 - 10/1997	1
71075-21241B3	CT19#,ET196,ST198..U SHADOW GRAY,TRIM1#	10/1997 - 12/2999	1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-21250B1	CT196,198,ET196..U GRAY,TRIM2#	11/1992 - 02/1994	1
71077-21250B2	CT196,198,ET196..U GRAY,TRIM1#	02/1994 - 01/1996	1
71077-21251B2	CT196,197,198,199,ET196,ST198..U SHADOW GRAY,TRIM1#	01/1996 - 12/2999	1
71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH
71303-13030	CT196,197,198,199,ET196,ST198	11/1992 - 12/2999	1
71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH
71304-13030	CT196,197,198,199,ET196,ST198	11/1992 - 12/2999	1
71398A - HOLDER, REAR SEAT BACK
71398-13030C0	CT196,198,ET196 BLACK,TRIM2#	11/1992 - 02/1994	2
71398-13030P0	CT196,197,198,199,ET196,ST198 SHADOW GRAY,TRIM1#	02/1994 - 12/2999	2
71398A - HOLDER, REAR SEAT BACK
71398-13030C0	CT196,198,ET196 BLACK,TRIM2#	11/1992 - 02/1994	2
71398-13030P0	CT196,197,198,199,ET196,ST198 SHADOW GRAY,TRIM1#	02/1994 - 12/2999	2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-21320B0	CT196,198,ET196..U ***,SHADOW GRAY,TRIM1#	02/1994 - 01/1996	1
71460-21320C1	CT196,198,ET196..U ***,BLACK,TRIM2#	11/1992 - 02/1994	1
71460-21321B1	CT196,197,198,199,ET196,ST198..U ***,SHADOW GRAY,TRIM1#	01/1996 - 12/2999	1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-21370C1	CT196,198,ET196..U ***,BLACK,TRIM2#	11/1992 - 02/1994	1
71480-21370B0	CT196,198,ET196..U ***,SHADOW GRAY,TRIM1#	02/1994 - 01/1996	1
71480-21371B1	CT196,197,198,199,ET196,ST198..U ***,SHADOW GRAY,TRIM1#	01/1996 - 12/2999	1
71611 - PAD, REAR SEAT CUSHION
71611-13170	CT196,197,198,199,ET196,ST198	11/1992 - 12/2999	1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-21061	CT196,197,198,199,ET196,ST198	01/1996 - 12/2999	1
71651-21060	CT196,198,ET196	11/1992 - 01/1996	1
72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH
72601-21040	CT196,197,198,199,ET196,ST198	11/1992 - 12/2999	1
72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH
72602-21040	CT196,197,198,199,ET196,ST198	11/1992 - 12/2999	1
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72630-21020	CT196,197,198,199,ET196,ST198	04/1993 - 12/2999	1
72630-13110	CT196,198,ET196	11/1992 - 04/1993	1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72640-13110	CT196,198,ET196	11/1992 - 04/1993	1
72640-21020	CT196,197,198,199,ET196,ST198	04/1993 - 12/2999	1
72637 - LEVER, REAR SEAT BACK ROD CONTROL, INNER
72637-13030	CT196,197,198,199,ET196,ST198	11/1992 - 12/2999	1
72637A - HANDLE, REAR SEAT LOCK
72637-13040C0	CT196,198,ET196 BLACK,TRIM2#	11/1992 - 02/1994	1
72637-13040B0	CT196,197,198,199,ET196,ST198 SHADOW GRAY,TRIM1#	02/1994 - 12/2999	1
72651D - ROD, REAR SEAT BACK LOCK, RH
72651-13040	CT196,197,198,199,ET196,ST198	11/1992 - 12/2999	1
72651E - ROD, REAR SEAT BACK LOCK, LH
72652-13040	CT196,197,198,199,ET196,ST198	11/1992 - 12/2999	1
72665 - COVER, REAR SEAT BACK LOCK, RH
72665-13020B0	CT196,197,198,199,ET196,ST198 SHADOW GRAY,TRIM1#	02/1994 - 12/2999	1
72665-13020C0	CT196,198,ET196 BLACK,TRIM2#	11/1992 - 02/1994	1
72666 - COVER, REAR SEAT BACK LOCK, LH
72666-13010B0	CT196,197,198,199,ET196,ST198 SHADOW GRAY,TRIM1#	02/1994 - 12/2999	1
72666-13010C0	CT196,198,ET196 BLACK,TRIM2#	11/1992 - 02/1994	1
72695 - SILENCER, REAR SEAT BACK LOCK CONTROL ROD
72695-21020	CT196,198,ET196 T=12	03/1993 - 01/1996	1
72695-21020	CT196,198,ET196 NO.2	01/1996 - 10/1997	1
72695-21020	CT196,198,ET196 T=12	10/1997 - 12/2999	1
72695-21030	CT196,198,ET196 T=18	10/1997 - 12/2999	1
72695-21030	CT196,198,ET196 NO.1	01/1996 - 10/1997	1
72695-21030	CT196,198,ET196 T=18	03/1993 - 01/1996	1
72695-13020	CT196,198,ET196	11/1992 - 03/1993	2
72695 - SILENCER, REAR SEAT BACK LOCK CONTROL ROD
72695-21020	CT196,198,ET196 T=12	03/1993 - 01/1996	1
72695-21020	CT196,198,ET196 NO.2	01/1996 - 10/1997	1
72695-21020	CT196,198,ET196 T=12	10/1997 - 12/2999	1
72695-21030	CT196,198,ET196 T=18	10/1997 - 12/2999	1
72695-21030	CT196,198,ET196 NO.1	01/1996 - 10/1997	1
72695-21030	CT196,198,ET196 T=18	03/1993 - 01/1996	1
72695-13020	CT196,198,ET196	11/1992 - 03/1993	2
72695 - SILENCER, REAR SEAT BACK LOCK CONTROL ROD
72695-21020	CT196,198,ET196 T=12	03/1993 - 01/1996	1
72695-21020	CT196,198,ET196 NO.2	01/1996 - 10/1997	1
72695-21020	CT196,198,ET196 T=12	10/1997 - 12/2999	1
72695-21030	CT196,198,ET196 T=18	10/1997 - 12/2999	1
72695-21030	CT196,198,ET196 NO.1	01/1996 - 10/1997	1
72695-21030	CT196,198,ET196 T=18	03/1993 - 01/1996	1
72695-13020	CT196,198,ET196	11/1992 - 03/1993	2
72695 - SILENCER, REAR SEAT BACK LOCK CONTROL ROD
72695-21020	CT196,198,ET196 T=12	03/1993 - 01/1996	1
72695-21020	CT196,198,ET196 NO.2	01/1996 - 10/1997	1
72695-21020	CT196,198,ET196 T=12	10/1997 - 12/2999	1
72695-21030	CT196,198,ET196 T=18	10/1997 - 12/2999	1
72695-21030	CT196,198,ET196 NO.1	01/1996 - 10/1997	1
72695-21030	CT196,198,ET196 T=18	03/1993 - 01/1996	1
72695-13020	CT196,198,ET196	11/1992 - 03/1993	2
Common parts
90105-08159
90109-08217
90119-06318
90149-60103
90159-60311
90164-35004
90167-40044
90508-12096
90541-09057
91651-60614
93240-46025
94120-40600

CT196V-DXPDS (1992)

(9211- )CT196,197,198,199,ET196,ST198

(9211- )
