CT196V-DXPDS (1992)
Toyota Caldina

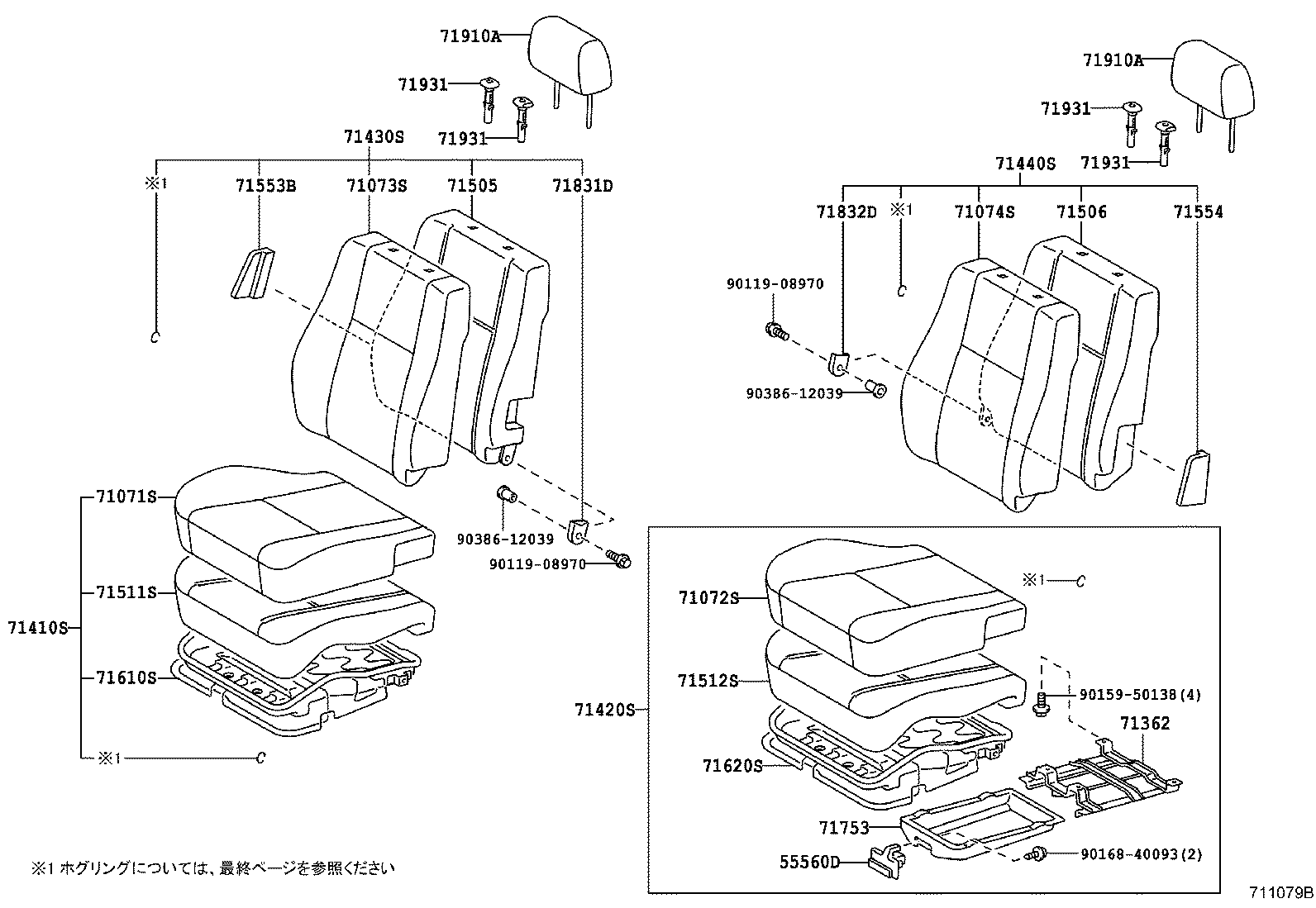

ILLUST NO. 1 OF 2(9211-9601)FZ,U,UL,UX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-21030B2 |
CT196,198,ET196..U GRAY,TRIM1# |
1 | ||
| 71071-21200B0 |
CT196,197,198,199,ET196,ST198..U SHADOW GRAY,TRIM1# |
1 | ||
| 71071-21030B1 |
CT196,198,ET196..U GRAY,TRIM2# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-21030B1 |
CT196,198,ET196..U GRAY,TRIM2# |
1 | ||
| 71072-21030B2 |
CT196,198,ET196..U SHADOW GRAY,TRIM1# |
1 | ||
| 71072-21200B0 |
CT196,197,198,199,ET196,ST198..U SHADOW GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-21020B2 |
CT196,198,ET196..U GRAY,TRIM1# |
1 | ||
| 71073-21020B1 |
CT196,198,ET196..U GRAY,TRIM2# |
1 | ||
| 71073-21150B0 |
CT196,197,198,199,ET196,ST198..U SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-21020B1 |
CT196,198,ET196..U GRAY,TRIM2# |
1 | ||
| 71074-21020B2 |
CT196,198,ET196..U GRAY,TRIM1# |
1 | ||
| 71073-21150B0 |
CT196,197,198,199,ET196,ST198..U SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-21030B0 |
CT196,198,ET196..U ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-21030C1 |
CT196,198,ET196..U ***,BLACK,TRIM2# |
1 | ||
| 71410-21190B0 |
CT196,197,198,199,ET196,ST198..U ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-21130C1 |
CT196,198,ET196..U ***,BLACK,TRIM2# |
1 | ||
| 71420-21130B0 |
CT196,198,ET196..U ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-21250B0 |
CT196,197,198,199,ET196,ST198..U ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-21030C1 |
CT196,198,ET196..U ***,BLACK,TRIM2# |
1 | ||
| 71430-21150B0 |
CT196,197,198,199,ET196,ST198..U ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-21030B0 |
CT196,198,ET196..U ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-21030C1 |
CT196,198,ET196..U ***,BLACK,TRIM2# |
1 | ||
| 71440-21030B0 |
CT196,198,ET196..U ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-21150B0 |
CT196,197,198,199,ET196,ST198..U ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-20150 |
CT196,198,ET196..U,UL |
1 | ||
| 71505-20150 |
CT19#,ET196,ST190..FZ,U,UL |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71506-20120 |
CT19#,ET196,ST190..FZ,U,UL |
1 | ||
| 71506-20120 |
CT196,198,ET196..U,UL |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20610 |
CT19#,ET196,ST190..FZ,U,UL,UX |
1 | ||
| 71512-20160 |
CT196,197,198,199,ET196,ST198..U |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-20160 |
AT191,CT19#,ET196,ST198..FZ,U,UL,UX |
1 | ||
| 71511-20610 |
CT19#,ET196,ST190..FZ,U,UL,UX |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-20230 |
CT19#,ET196,ST190..FZ,U,UL,UX RH,PLANT.NO.A41 |
1 | ||
| 71553-21020 |
CT19#,ET196,ST190..FZ,U,UL,UX RH,PLANT.NO.C21-C24 |
1 | ||
| 71553-20230 |
CT19#,ET196,ST190..FZ,U,UL RH,PLANT.NO.A41 |
1 | ||
| 71553-20230 |
CT19#,ET196,ST190..FZ,U,UL,UX |
1 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-20200 |
CT19#,ET196,ST190..FZ,U,UL,UX |
1 | ||
| 71554-20200 |
CT19#,ET196,ST190..FZ,U,UL,UX PLANT.NO.A41 |
1 | ||
| 71554-21020 |
CT19#,ET196,ST190..FZ,U,UL,UX PLANT.NO.C21-C24 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20510 |
CT196,198,ET196..U |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20290 |
CT19#,ET196,ST19# |
1 | ||
| 71620-20290 |
CT19#,ET196,ST19# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-16010 |
CT19#,ET196,ST19# |
1 | ||
| 71831-16010 |
CT19#,ET196,ST19# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-16010 |
CT196,198,ET196 |
1 | ||
| 71831-16010 |
CT19#,ET196,ST19# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B110C0 |
CT196,198,ET196..U,UL BLACK,TRIM2# |
2 | ||
| 71910-2B110B0 |
CT196,198,ET196..U,UL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-21090B0 |
CT196,197,198,199,ET196,ST198..U,UL SHADOW GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B110C0 |
CT196,198,ET196..U,UL BLACK,TRIM2# |
2 | ||
| 71910-2B110B0 |
CT196,198,ET196..U,UL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-21090B0 |
CT196,197,198,199,ET196,ST198..U,UL SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070P0 |
CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1002022 |
CT19#,ET196,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-32020B0 |
CT196,198,ET196..U,UL ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
CT196,198,ET196..U,UL ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-21050B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020P0 |
CT196,198,ET196..U,UL ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-20120B2 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
CT19#,ET196,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
CT19#,ET196,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-20080B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070P0 |
CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1002022 |
CT19#,ET196,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-32020B0 |
CT196,198,ET196..U,UL ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
CT196,198,ET196..U,UL ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-21050B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020P0 |
CT196,198,ET196..U,UL ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-20120B2 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
CT19#,ET196,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
CT19#,ET196,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-20080B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070P0 |
CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1002022 |
CT19#,ET196,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-32020B0 |
CT196,198,ET196..U,UL ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
CT196,198,ET196..U,UL ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-21050B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020P0 |
CT196,198,ET196..U,UL ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-20120B2 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
CT19#,ET196,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
CT19#,ET196,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-20080B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070P0 |
CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1002022 |
CT19#,ET196,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-32020B0 |
CT196,198,ET196..U,UL ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
CT196,198,ET196..U,UL ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-21050B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020P0 |
CT196,198,ET196..U,UL ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-20120B2 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
CT19#,ET196,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
CT19#,ET196,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-20080B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90119-08970 | ||||
| 90159-50138 | ||||
| 90168-40093 | ||||
| 90386-12039 | ||||
ILLUST NO. 2 OF 2(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20220B0 |
CT196,198,ET196..U SHADOW GRAY,TRIM1# |
1 | ||
| 71811-20300B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-20220C0 |
CT196,198,ET196..U BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20200C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 71812-21010B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71812-20270B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71812-20200B2 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-20130B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-20130B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-21030 |
CT196,198,ET196..U |
1 | ||
| 72010-21031 |
CT196,198,ET196..U |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-21031 |
CT196,198,ET196 |
1 | ||
| 72020-21030 |
CT196,198,ET196 |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
CT196,197,198,199,ET196,ST198 |
2 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-16020 |
CT196,197,198,199,ET196,ST198 |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
CT196,197,198,199,ET196,ST198 |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
CT196,197,198,199,ET196,ST198 |
2 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-20060C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 72137-20060C0 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 72137-20060B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72137-20080C0 |
CT196,197,198,199,ET196,ST198 BLACK,TRIM1# |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-20030B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72138-20030C0 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 72138-20030C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20020B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72157-20020C0 |
AT191,CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 72157-20020C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-20010C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 72158-20010C0 |
AT191,CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 72158-20010B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-20110 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 72201-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-21010 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 72201-20110 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-18010B3 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72345-20050 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72345-20050 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12100C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 72525-16010B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12100P0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12040P0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-16010B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12040C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-10349 | ||||
| 90119-10822 | ||||
| 90520-01006 | ||||
| 91511-60816 | ||||
| 91515-81025 | ||||
| 93560-14008 | ||||
| 96160-00600 | ||||
(9211- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
ILLUST NO. 1 OF 2(9601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-20440 |
CT196,197,198,199,ET196,ST198..U |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-20440 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-21020 |
AT191,CT19#,ET196,ST19#..CZ,TZ,TZG,U,UL,UX |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71013-21020 |
AT191,CT19#,ET196,ST19#..CZ,TZ,TZG,U,UL,UX |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-21030B2 |
CT196,198,ET196..U GRAY,TRIM1# |
1 | ||
| 71071-21200B0 |
CT196,197,198,199,ET196,ST198..U SHADOW GRAY,TRIM1# |
1 | ||
| 71071-21030B1 |
CT196,198,ET196..U GRAY,TRIM2# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-21030B1 |
CT196,198,ET196..U GRAY,TRIM2# |
1 | ||
| 71072-21030B2 |
CT196,198,ET196..U SHADOW GRAY,TRIM1# |
1 | ||
| 71072-21200B0 |
CT196,197,198,199,ET196,ST198..U SHADOW GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-21020B2 |
CT196,198,ET196..U GRAY,TRIM1# |
1 | ||
| 71073-21020B1 |
CT196,198,ET196..U GRAY,TRIM2# |
1 | ||
| 71073-21150B0 |
CT196,197,198,199,ET196,ST198..U SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-21020B1 |
CT196,198,ET196..U GRAY,TRIM2# |
1 | ||
| 71074-21020B2 |
CT196,198,ET196..U GRAY,TRIM1# |
1 | ||
| 71073-21150B0 |
CT196,197,198,199,ET196,ST198..U SHADOW GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-21030B0 |
CT196,198,ET196..U ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71410-21030C1 |
CT196,198,ET196..U ***,BLACK,TRIM2# |
1 | ||
| 71410-21190B0 |
CT196,197,198,199,ET196,ST198..U ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-21130C1 |
CT196,198,ET196..U ***,BLACK,TRIM2# |
1 | ||
| 71420-21130B0 |
CT196,198,ET196..U ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71420-21250B0 |
CT196,197,198,199,ET196,ST198..U ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-21030C1 |
CT196,198,ET196..U ***,BLACK,TRIM2# |
1 | ||
| 71430-21150B0 |
CT196,197,198,199,ET196,ST198..U ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-21030B0 |
CT196,198,ET196..U ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-21030C1 |
CT196,198,ET196..U ***,BLACK,TRIM2# |
1 | ||
| 71440-21030B0 |
CT196,198,ET196..U ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71430-21150B0 |
CT196,197,198,199,ET196,ST198..U ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-20610 |
CT19#,ET196,ST190..FZ,U,UL,UX |
1 | ||
| 71512-20160 |
CT196,197,198,199,ET196,ST198..U |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-20160 |
AT191,CT19#,ET196,ST198..FZ,U,UL,UX |
1 | ||
| 71511-20610 |
CT19#,ET196,ST190..FZ,U,UL,UX |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-21020 |
CT196,197,198,199,ET196,ST198 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-21020 |
CT196,197,198,199,ET196,ST198 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2B110C0 |
CT196,198,ET196..U,UL BLACK,TRIM2# |
2 | ||
| 71910-2B110B0 |
CT196,198,ET196..U,UL SHADOW GRAY,TRIM1# |
2 | ||
| 71910-21090B0 |
CT196,197,198,199,ET196,ST198..U,UL SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070P0 |
CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1002022 |
CT19#,ET196,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-32020B0 |
CT196,198,ET196..U,UL ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
CT196,198,ET196..U,UL ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-21050B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020P0 |
CT196,198,ET196..U,UL ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-20120B2 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
CT19#,ET196,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
CT19#,ET196,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-20080B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-21050B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-10070P0 |
CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-1002022 |
CT19#,ET196,ST19# ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71931-32020B0 |
CT196,198,ET196..U,UL ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
CT196,198,ET196..U,UL ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-32020B0 |
CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-10020P0 |
CT196,198,ET196..U,UL ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-20120B2 |
AT191,CT19#,ET196,ST19# ﾛｯｸ付,SHADOW GRAY,TRIM1# |
2 | ||
| 71931-32020B0 |
CT19#,ET196,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1007022 |
CT19#,ET196,ST19# ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71931-20080B0 |
AT191,CT19#,ET196,ST19# ﾛｯｸ無,SHADOW GRAY,TRIM1# |
2 | ||
ILLUST NO. 2 OF 2(9211-9601)U
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-20220B0 |
CT196,198,ET196..U SHADOW GRAY,TRIM1# |
1 | ||
| 71811-20300B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71811-20220C0 |
CT196,198,ET196..U BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-20200C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 71812-21010B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71812-20270B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 71812-20200B2 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-21030 |
CT196,198,ET196..U |
1 | ||
| 72010-21031 |
CT196,198,ET196..U |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-21031 |
CT196,198,ET196 |
1 | ||
| 72020-21030 |
CT196,198,ET196 |
1 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
CT196,197,198,199,ET196,ST198 |
2 | ||
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-16010 |
CT196,197,198,199,ET196,ST198 |
2 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-21010 |
CT196,198,ET196..U |
1 | ||
| 72130-20280 |
CT196,198,ET196..U |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-20060C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 72137-20060C0 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 72137-20060B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72137-20080C0 |
CT196,197,198,199,ET196,ST198 BLACK,TRIM1# |
2 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-20030B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72138-20030C0 |
CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 72138-20030C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-20270 |
CT19#,ET196,ST19# |
1 | ||
| 72140-20271 |
CT19#,ET196,ST19# |
1 | ||
| 72140-20271 |
CT19#,ET196,ST19# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-20020B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72157-20020C0 |
AT191,CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 72157-20020C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-20010C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 72158-20010C0 |
AT191,CT19#,ET196,ST19# BLACK,TRIM1# |
1 | ||
| 72158-20010B0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12160 |
CT196,198,ET196..U |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12160 |
CT19#,ET196,ST19# |
1 | ||
| 72301-12160 |
CT19#,ET196,ST19# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-12100C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 72525-16010B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72525-12100P0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-12040P0 |
CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-16010B0 |
AT191,CT19#,ET196,ST19# SHADOW GRAY,TRIM1# |
1 | ||
| 72526-12040C0 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90105-08085 | ||||
| 90119-08080 | ||||
| 90119-10111 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90386-12039 | ||||
| 93249-54006 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
