CT196V-DXPDS (1992)

Toyota Caldina

Production Nov 1992 - May 1998
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9211- )

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67401F 67402F 67403F 67404F 67495A 67496A 67831 67832 67835C 67836C 67839A 67861 67862 67867C 67867G 67868C 67868L 67869B 68101 68102 68141C 68151C 68610 68617 68618 69811B 69812A 9010506145 9010506199 9015960303 9015960453 9015960453 9018905055 9018906084 9033330009 9033335004 9054109006 9095001616 9165160614 9165160614 9356016016 9356055016
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-21060

CT196,198,ET196..U

 1
67001-21061

CT196,198,ET196..U

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-21040

CT196,198,ET196..U

 1
67002-21041

CT196,198,ET196..U

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-21040

CT196,197,198,199,ET196,ST198..U

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-21030

CT196,197,198,199,ET196,ST198..U

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-20220

AT191,CT19#,ET196,ST19#

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-20210

AT191,CT19#,ET196,ST19#

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-20110

AT191,CT19#,ET196,ST19#

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-20090

AT191,CT19#,ET196,ST19#

 1
67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67495-20110

CT19#,ET196,ST19#

 1
67495-20110

CT19#,ET196,ST19#

 1
67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67496-20080

CT19#,ET196,ST19#

 1
67496-20080

CT19#,ET196,ST19#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67801-20050

AT191,CT19#,ET196,ST19#

 1
67801-20050

CT19#,ET196,ST190..FZ,U,UL,UX

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67802-20040

CT19#,ET196,ST190..FZ,U,UL,UX

 1
67802-20040

AT191,CT19#,ET196,ST19#

 1
67835C - COVER, FRONT DOOR SERVICE HOLE, NO.3 RH
67835-20070

AT191,CT19#,ET196,ST19#

 1
67836C - COVER, FRONT DOOR SERVICE HOLE, NO.3 LH
67836-20100

AT191,CT19#,ET196,ST19#

 1
67839A - COVER, FRONT DOOR SERVICE HOLE, LOWER
67839-21010

CT196,197,198,199,ET196,ST198..U

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-21030

CT196,197,198,199,ET196

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
67861-20350

CT19#,ET196,ST19#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-20350

CT19#,ET196,ST19#

 1
67862-21030

CT196,197,198,199,ET196

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67868-20040

CT19#,ET196,ST19#

 11
67868-20040

CT196,198,ET196

 6
67867-12150

CT196,197,198,199,ET196,ST198

 6
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67877-20030

CT19#,ET196,ST19#

 1
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67868-20040

CT19#,ET196,ST19#

 11
67868-20040

CT196,198,ET196

 6
67867-12150

CT196,197,198,199,ET196,ST198

 6
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67877-20030

CT19#,ET196,ST19#

 1
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-12020

AT191,CT19#,ET196,ST19#

 2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-21010

CT196,197,198,199,ET196,ST198

*TEM,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68101-20150

CT196,198,ET196

*TEM,厚さ=3.5,ﾌﾞﾙｰ

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-20150

CT196,198,ET196

*TEM,厚さ=3.5,ﾌﾞﾙｰ

 1
68102-21010

CT196,197,198,199,ET196,ST198

*TEM,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-20240

AT191,CT19#,ET196,ST19#

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-20070

AT191,CT19#,ET196,ST19#

 1
68610 - CHECK ASSY, FRONT DOOR
68610-20110

CT19#,ET196,ST19#

 2
68610-20150

CT19#,ET196,ST19#

 2
68610-20151

AT191,CT19#,ET196,ST19#

 2
68617 - PIN, FRONT DOOR CHECK
68617-20030

CT19#,ET196,ST19#

 2
68617-20050

AT191,CT19#,ET196,ST19#

PLANT NO.A41

 2
68617-20040

AT191,CT19#,ET196,ST19#

PLANT NO.A41

 2
68617-20011

CT19#,ET196,ST19#

 2
68618 - BRACKET, FRONT DOOR CHECK ARM, RH
68618-20010

AT191,CT19#,ET196,ST19#

 2
69811B - PLATE, FRONT DOOR WINDOW REGULATOR BASE, RH
69811-21010

CT196,198,ET196..U,UL

 1
69812A - PLATE, FRONT DOOR WINDOW REGULATOR BASE, RH
69812-21010

CT196,198,ET196..U,UL

 1
Common parts
90105-06145
90105-06199
90159-60303
90159-60453
90189-05055
90189-06084
90333-30009
90333-35004
90541-09006
90950-01616
91651-60614
93560-16016
93560-55016

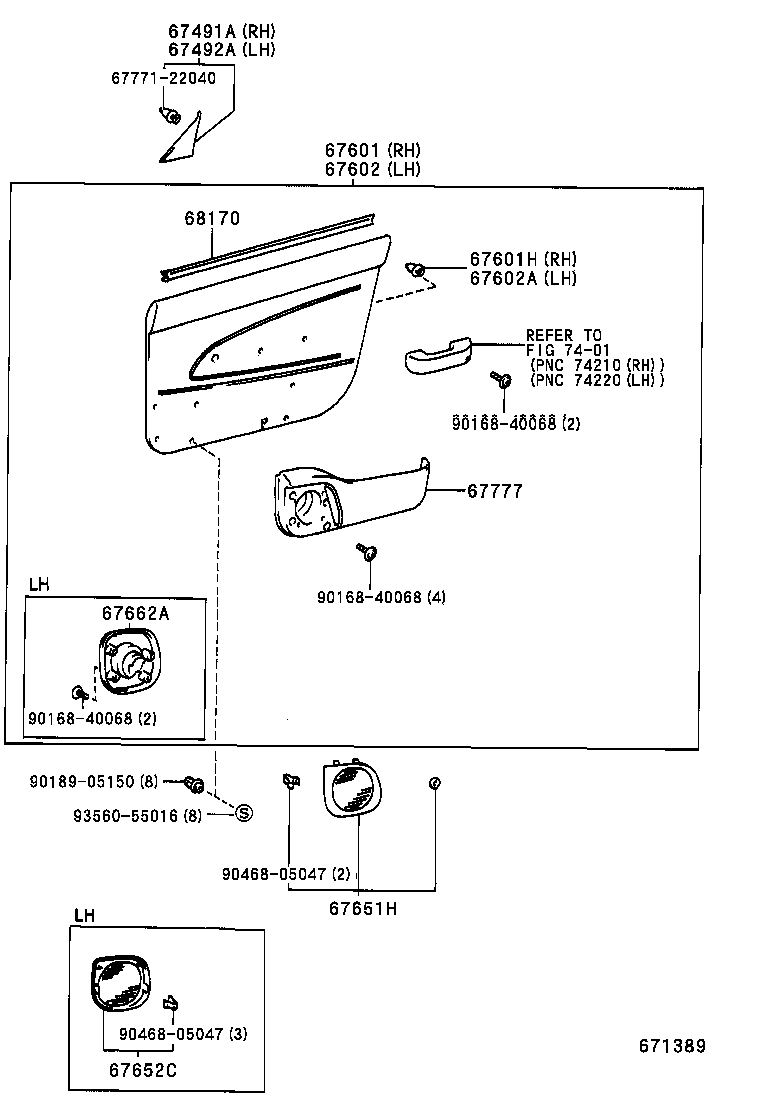

ILLUST NO. 1 OF 2(9211- )U,UL

Click highlighted areas on diagram

diagram 67491A 67492A 67601 67601H 67602 67602A 67651H 67652C 67662A 6777122040 67777 68170 7401 9016840068 9016840068 9016840068 9018905150 9046805047 9046805047 9356055016
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-21020

CT196,197,198,199,ET196,ST198..U,UL

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-21010

CT196,197,198,199,ET196,ST198..U,UL

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-21030C1

CT196,198,ET196..U

BLACK,TRIM2#

 1
67610-21030B0

CT196,198,ET196..U

SHADOW GRAY,TRIM1#

 1
67601H - RETAINER, DOOR TRIM, RH
67771-28020

ST198..U;CT196,197,198,199,ET196..U,UL

ﾚｯﾄﾞ

 1
67771-20110

ST198..U;CT196,197,198,199,ET196..U,UL

MOSS GREEN

 5
67771-20110

CT196,198,ET196..U,UL

 6
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-21020B0

CT196,198,ET196..U

SHADOW GRAY,TRIM1#

 1
67620-21020C1

CT196,198,ET196..U

BLACK,TRIM2#

 1
67602A - RETAINER, DOOR TRIM, LH
67771-20110

CT196,197,198,199,ET196,ST198..U

MOSS GREEN

 7
67771-28020

CT196,197,198,199,ET196,ST198..U,UL

ﾚｯﾄﾞ

 1
67771-20110

CT196,198,ET196..U

 8
67651H - GRILLE, SPEAKER DOOR, RH
67651-21010C0

CT19#,ET196,ST19#

BLACK,TRIM2#

 1
67651-21010B0

AT191,CT19#,ET196,ST19#

SHADOW GRAY,TRIM1#

 1
67651-20060C1

CT19#,ET196,ST19#

BLACK,TRIM2#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-21010C0

CT196,198,ET196..U,UL

BLACK,TRIM2#

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-21020

CT196,197,198,199,ET196,ST198..U,UL

 2
Common parts
67771-22040
90168-40068
90189-05150
90468-05047
93560-55016
Linked diagrams
7401
