CT196V-DXPDS (1992)

Toyota Caldina

Production Nov 1992 - May 1998
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )CT196,197,ET196

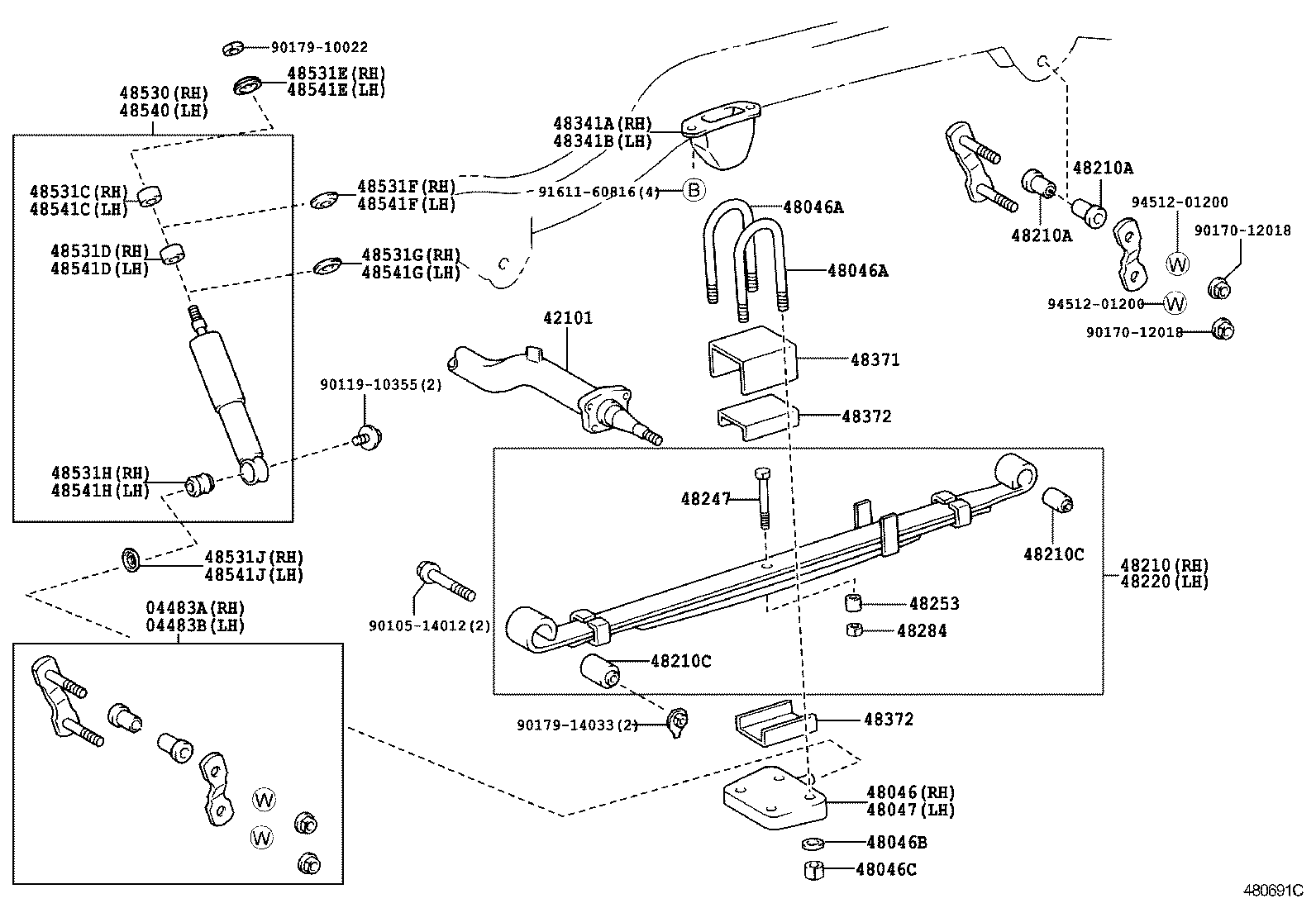

Click highlighted areas on diagram

diagram 04483A 04483B 42101 48046 48046A 48046A 48046B 48046C 48047 48210 48210A 48210A 48210C 48210C 48220 48247 48253 48284 48341A 48341B 48371 48372 48372 48530 48531C 48531D 48531E 48531F 48531G 48531H 48531J 48540 48541C 48541D 48541E 48541F 48541G 48541H 48541J 9010514012 9011910355 9017012018 9017012018 9017910022 9017914033 9161160816 9451201200 9451201200
Part # Description Qty Price
04483A - SHACKLE KIT, REAR SPRING, RH
04483-13021

CT196,197,ET196

 1
04483B - SHACKLE KIT, REAR SPRING, LH
04483-13021

CT196,197,ET196

 1
42101 - TUBE SUB-ASSY, REAR AXLE
42101-21090

CT196,ET196

 1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-21030

CT196,197,ET196

 1
48046A - BOLT, U(FOR REAR SPRING)
90117-10010

CT196,197,ET196

長さ=143

 4
48046A - BOLT, U(FOR REAR SPRING)
90117-10010

CT196,197,ET196

長さ=143

 4
48046B - WASHER(FOR REAR SPRING U BOLT)
94621-11000

CT196,197,198,199,ET196,ST198

 8
48046C - NUT(FOR REAR SPRING U BOLT)
90170-10022

CT196,197,198,199,ET196,ST198

 8
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-21030

CT196,197,ET196

 1
48210 - SPRING ASSY, REAR RH
48210-21270

CT196,197,ET196

3枚ﾘｰﾌ

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-15005

CT196,197,ET196

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-15005

CT196,197,ET196

 4
48210C - BUSH(FOR REAR SPRING LEAF)
90389-12010

CT196,197,198,199,ET196,ST198

ﾘﾔ

 2
90389-14035

CT196,197,198,ET196

ﾌﾛﾝﾄ

 2
48210C - BUSH(FOR REAR SPRING LEAF)
90389-12010

CT196,197,198,199,ET196,ST198

ﾘﾔ

 2
90389-14035

CT196,197,198,ET196

ﾌﾛﾝﾄ

 2
48220 - SPRING ASSY, REAR LH
48210-21270

CT196,197,ET196

3枚ﾘｰﾌ

 1
48247 - BOLT, REAR SPRING, CENTER
48247-21250

CT196,197,ET196

 2
48253 - SPACER, REAR SPRING, NO.1
48254-21100

CT196,197,ET196

 2
48284 - NUT, REAR SPRING CENTER BOLT
94110-41000

CT196,197,ET196

 2
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-21010

CT196,197,ET196

 1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-21010

CT196,197,ET196

 1
48371 - RETAINER, REAR SPRING PAD
48371-21080

CT196,197,198,ET196

 2
48372 - PAD, REAR SPRING
48372-28010

CT196,197,198,ET196

 4
48372 - PAD, REAR SPRING
48372-28010

CT196,197,198,ET196

 4
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80149

CT196,ET196

 1
48531-80212

CT196,ET196

 1
48531C - CUSHION, REAR SHOCK ABSORBER, NO.1 RH
90540-10005

CT196,197,198,199,ET196,ST198

 1
48531D - CUSHION, REAR SHOCK ABSORBER, NO.2 RH
90948-01003

CT196,197,198,199,ET196,ST198

 1
48531E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)
90948-02045

CT196,197,198,199,ET196,ST198

 1
48531F - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER RH)
90948-02007

CT196,197,198,199,ET196,ST198

 1
48531G - RETAINER, CUSHION, NO.3(FOR REAR SHOCK ABSORBER RH)
90948-02002

CT196,197,198,199,ET196,ST198

 1
48531H - BUSH(FOR REAR SHOCK ABSORBER RH)
90385-16009

CT196,197,198,199,ET196,ST198

 1
48531J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH
90948-03004

CT196,197,198,199,ET196,ST198

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80212

CT196,ET196

 1
48531-80149

CT196,ET196

 1
48541C - CUSHION, REAR SHOCK ABSORBER, NO.1 LH
90540-10005

CT196,197,198,199,ET196,ST198

 1
48541D - CUSHION, REAR SHOCK ABSORBER, NO.2 LH
90948-01003

CT196,197,198,199,ET196,ST198

 1
48541E - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)
90948-02045

CT196,197,198,199,ET196,ST198

 1
48541F - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER LH)
90948-02007

CT196,197,198,199,ET196,ST198

 1
48541G - RETAINER, CUSHION, NO.3(FOR REAR SHOCK ABSORBER LH)
90948-02002

CT196,197,198,199,ET196,ST198

 1
48541H - BUSH(FOR REAR SHOCK ABSORBER LH)
90385-16009

CT196,197,198,199,ET196,ST198

 1
48541J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH
90948-03004

CT196,197,198,199,ET196,ST198

 1
Common parts
90105-14012
90119-10355
90170-12018
90179-10022
90179-14033
91611-60816
94512-01200
