CT196V-DXPDS (1992)

Toyota Caldina

Production Nov 1992 - May 1998
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9211-9805)2C..CT196

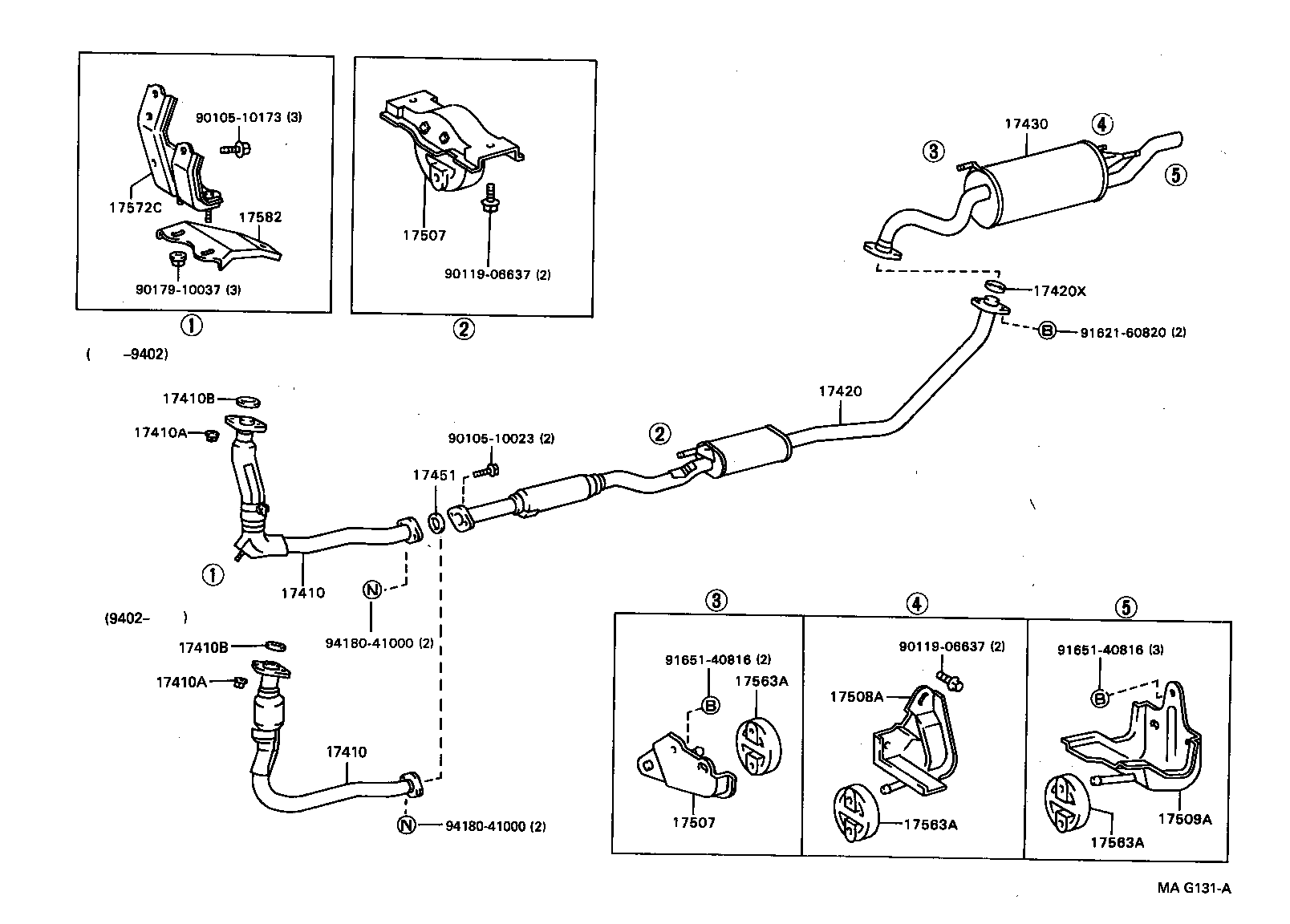

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17420 17420X 17430 17451 17507 17507 17508A 17509A 17563A 17563A 17563A 17572C 17582 9010510023 9010510173 9011906637 9011906637 9017910037 9162160820 9165140816 9165140816 9418041000 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64630

2C..CT196

 1
17410-64710

2C..CT196

 1
17410-64620

2C..CT190,196

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64630

2C..CT196

 1
17410-64710

2C..CT196

 1
17410-64620

2C..CT190,196

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2C,5EFE..CT19#,ET196

 2
90179-10070

2C,3CE..CT196,197,198

 2
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2C,5EFE..CT19#,ET196

 2
90179-10070

2C,3CE..CT196,197,198

 2
17410B - GASKET, EXHAUST PIPE
90917-06061

2C,3CE..CT196,197,198

 1
90917-06061

2C,5EFE..CT19#,ET196

 1
17410B - GASKET, EXHAUST PIPE
90917-06061

2C,3CE..CT196,197,198

 1
90917-06061

2C,5EFE..CT19#,ET196

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-64180

2C..CT196

 1
17420-64230

2C..CT196

 1
17420-64181

2C..CT196

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06039

2C,3CE,5EFE,3SFE..CT196,197,198,199,ET196,ST198

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-11700

2C,5EFE..CT196,ET196

 1
17451 - GASKET, EXHAUST PIPE
90917-06048

2C#,3CE..CT190,196,198,199

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-11050

2C..CT196,198

TAIL FRONT

 1
17507-64040

2C..CT196

SUB MUFFLER FRONT

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-11050

2C..CT196,198

TAIL FRONT

 1
17507-64040

2C..CT196

SUB MUFFLER FRONT

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-11070

2C,3CE,5EFE..CT196,197,ET196

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-11070

2C,3CE,5EFE..CT196,197,ET196

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15140

2C,3CE,5EFE,3SFE..CT196,198,199,ET196,ST198

 3
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15140

2C,3CE,5EFE,3SFE..CT196,198,199,ET196,ST198

 3
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-15140

2C,3CE,5EFE,3SFE..CT196,198,199,ET196,ST198

 3
17572C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-64230

2C..CT190,196

 1
17582 - BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER
17582-64040

2C..CT190,196

 1
Common parts
90105-10023
90105-10173
90119-06637
90179-10037
91621-60820
91651-40816
94180-41000
