CT196V-DXPDS (1992)

Toyota Caldina

Production Nov 1992 - May 1998
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

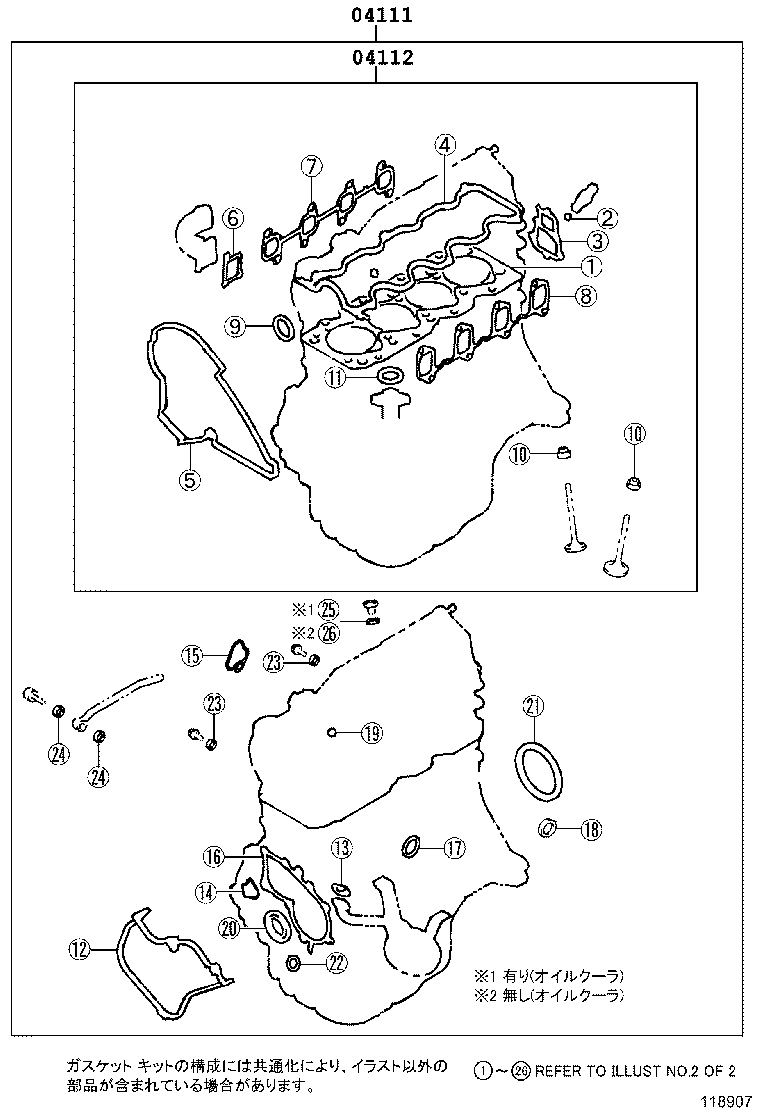

ILLUST NO. 1 OF 2(9211-9805)2C

Click highlighted areas on diagram

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-64202

2C..CT19#

 1
04111-64200

2C..CT19#

 1
04111-64291

2C..CT196,198

 1
04111-64201

2C..CT19#

 1
04111-64293

2C..CT19#

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-64142

2C..CT19#

 1
04112-64140

2C..CT19#

 1
04112-64221

2C..CT196,198

 1
04112-64223

2C..CT19#

 1
04112-64141

2C..CT19#

 1

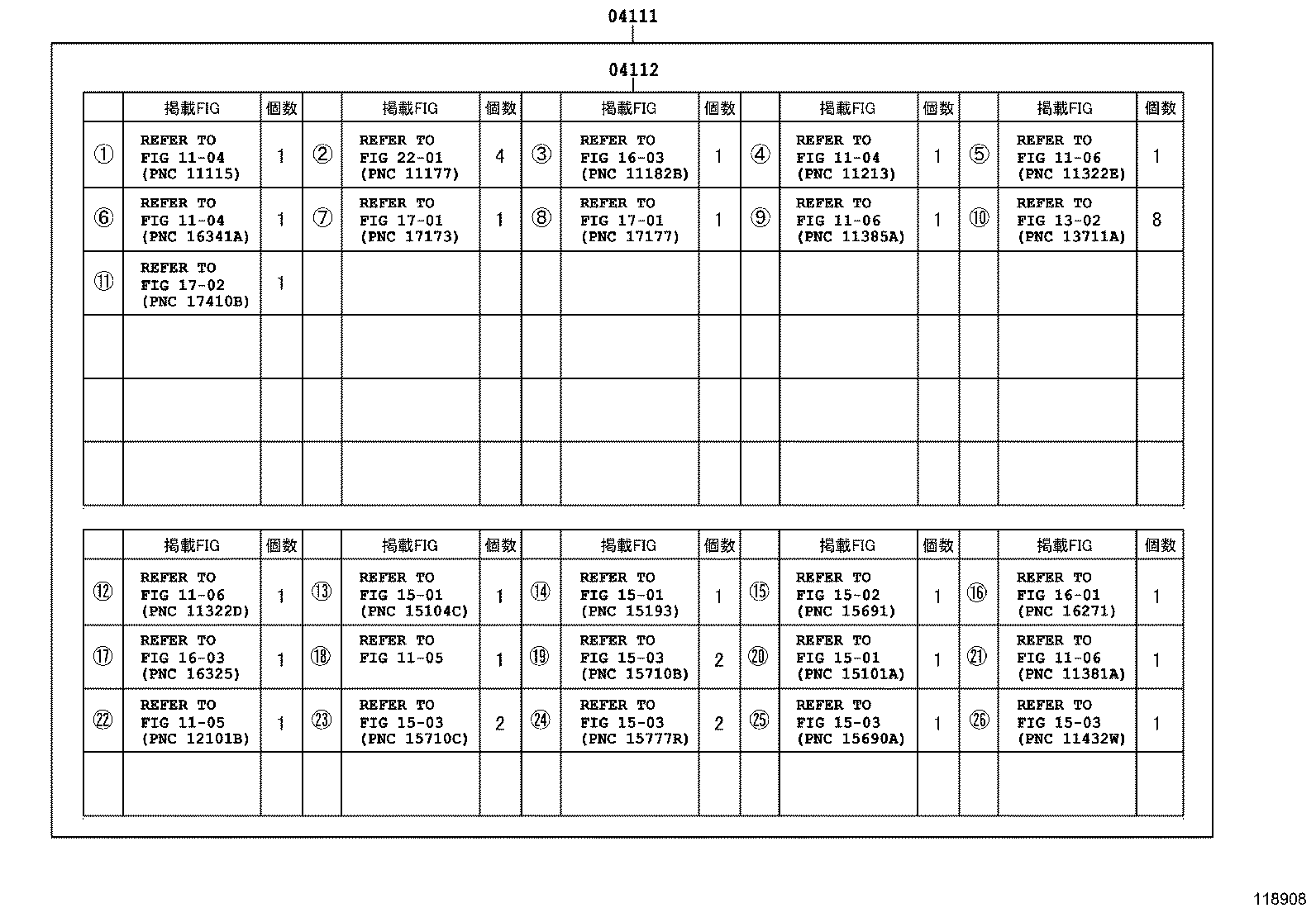

ILLUST NO. 2 OF 2(9211-9805)2C

Click highlighted areas on diagram

diagram 04111 04112 1104 1104 1104 1105 1105 1106 1106 1106 1106 1302 1501 1501 1501 1502 1503 1503 1503 1503 1503 1601 1603 1603 1701 1701 1702 2201
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-64202

2C..CT19#

 1
04111-64200

2C..CT19#

 1
04111-64291

2C..CT196,198

 1
04111-64201

2C..CT19#

 1
04111-64293

2C..CT19#

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-64142

2C..CT19#

 1
04112-64140

2C..CT19#

 1
04112-64221

2C..CT196,198

 1
04112-64223

2C..CT19#

 1
04112-64141

2C..CT19#

 1
Linked diagrams
1104
1105
1106
1302
1501
1502
1503
1601
1603
1701
1702
2201
