CT196V-DXMNS (1992)

Toyota Caldina

Production Nov 1992 - May 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9211- )CT190,196,197,ST190..5F

Click highlighted areas on diagram

S50,S51

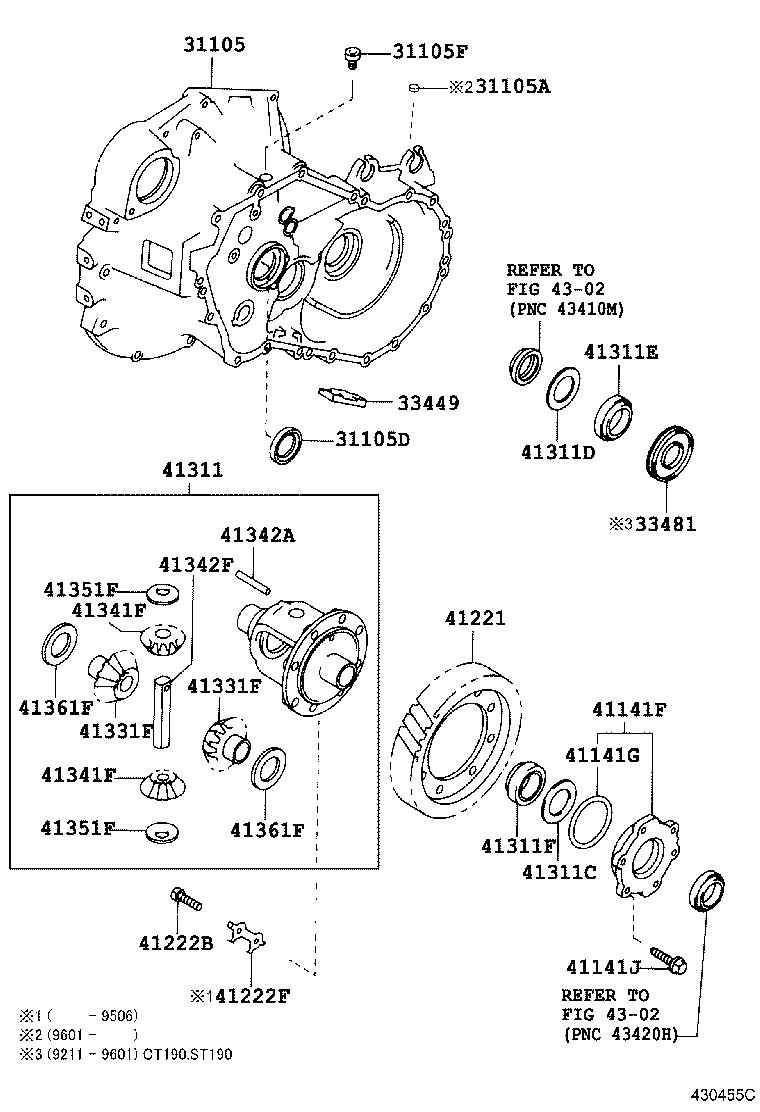

diagram 31105 31105A 31105D 31105F 33449 33481 41141F 41141G 41141J 41221 41222B 41222F 41311 41311C 41311D 41311E 41311F 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F 4302 4302
Part # Description Qty Price
31105 - CASE SUB-ASSY, TRANSAXLE(MTM)
31105-33020

CT190,196..5F

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-30006

CT19#,ST190,195..5F

 1
31105F - PLUG(FOR TRANSAXLE CASE)
90341-10065

CT190,196,197,ST190..5F

 1
33449 - MAGNET, TRANSMISSION
33449-32020

CT190,196,197,ST190..5F

 1
33481 - GEAR, SPEEDOMETER DRIVE (MTM)
33481-32060

CT190,196,197,ST190..5F..(DSL,EFI)

歯数=25

 1
41141F - RETAINER, FRONT DIFFERENTIAL SIDE BEARING
41101-32010

CT190,196,197,ST190..5F

 1
41141G - RING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
90301-63004

CT190,196,197,ST190..5F

 1
41141J - BOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
90105-08061

CT190,196,197,ST190..5F

*8−1.25PX26.5−23.5

 6
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-32090

CT190,196..5F..DSL

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11003

CT190,196,ST190..5F

 8
41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-32010

CT190,196,ST190..5F

 4
41311 - CASE, FRONT DIFFERENTIAL
41301-32060

CT190,196,197,ST190..5F

 1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-45003

CT190,196,197,ST190..5F

厚さ=2.00,ﾏｰｸ 03

 1
90564-45001

CT190,196,197,ST190..5F

厚さ=1.90,ﾏｰｸ 01

 1
90564-45010

CT190,196,197,ST190..5F

厚さ=2.35,ﾏｰｸ 10

 1
90564-45011

CT190,196,197,ST190..5F

厚さ=2.40,ﾏｰｸ 11

 1
90564-45006

CT190,196,197,ST190..5F

厚さ=2.15,ﾏｰｸ 06

 1
90564-45004

CT190,196,197,ST190..5F

厚さ=2.05,ﾏｰｸ 04

 1
90564-45016

CT190,196,197,ST190..5F

厚さ=2.65,ﾏｰｸ 16

 1
90564-45008

CT190,196,197,ST190..5F

厚さ=2.25,ﾏｰｸ 08

 1
90564-45012

CT190,196,197,ST190..5F

厚さ=2.45,ﾏｰｸ 12

 1
90564-45015

CT190,196,197,ST190..5F

厚さ=2.60,ﾏｰｸ 15

 1
90564-45009

CT190,196,197,ST190..5F

厚さ=2.30,ﾏｰｸ 09

 1
90564-45018

CT190,196,197,ST190..5F

厚さ=2.75,ﾏｰｸ 18

 1
90564-45002

CT190,196,197,ST190..5F

厚さ=1.95,ﾏｰｸ 02

 1
90564-45019

CT190,196,197,ST190..5F

厚さ=2.80,ﾏｰｸ 19

 1
90564-45007

CT190,196,197,ST190..5F

厚さ=2.20,ﾏｰｸ 07

 1
90564-45014

CT190,196,197,ST190..5F

厚さ=2.55,ﾏｰｸ 14

 1
90564-45005

CT190,196,197,ST190..5F

厚さ=2.10,ﾏｰｸ 05

 1
90564-45017

CT190,196,197,ST190..5F

厚さ=2.70,ﾏｰｸ 17

 1
90564-45013

CT190,196,197,ST190..5F

厚さ=2.50,ﾏｰｸ 13

 1
41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT)
90564-45011

CT190,196,197,ST190..5F

厚さ=2.40,ﾏｰｸ 11

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-40016

CT190,196,197,ST190..5F

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-40023

CT190,196,ST190..5F

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010

CT190,196,197,ST190,191

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-32010

CT190,196,197,ST190,191

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-22030

CT190,196,ST190,191

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-22030

CT190,196,ST190,191

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058

AT191,CT190,196,197,ET196,ST190,191

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-32020

CT190,196,197,ST190,191

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

CT190,196,197,ST190,191

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-32010

CT190,196,197,ST190,191

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22150

AT191,CT190,196,ET196,ST190..3FC,5F

厚さ=1.05,ﾏｰｸ 15

 2
41361-22020

AT191,CT190,196,ET196,ST190..3FC,5F

厚さ=1.00,ﾏｰｸ 02

 2
41361-22160

AT191,CT190,196,ET196,ST190..3FC,5F

厚さ=1.15,ﾏｰｸ 16

 2
41361-22030

AT191,CT190,196,ET196,ST190..3FC,5F

厚さ=1.10,ﾏｰｸ 03

 2
41361-22040

AT191,CT190,196,ET196,ST190..3FC,5F

厚さ=1.20,ﾏｰｸ 04

 2
41361-22140

AT191,CT190,196,ET196,ST190..3FC,5F

厚さ=0.95,ﾏｰｸ 14

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22150

AT191,CT190,196,ET196,ST190..3FC,5F

厚さ=1.05,ﾏｰｸ 15

 2
41361-22020

AT191,CT190,196,ET196,ST190..3FC,5F

厚さ=1.00,ﾏｰｸ 02

 2
41361-22160

AT191,CT190,196,ET196,ST190..3FC,5F

厚さ=1.15,ﾏｰｸ 16

 2
41361-22030

AT191,CT190,196,ET196,ST190..3FC,5F

厚さ=1.10,ﾏｰｸ 03

 2
41361-22040

AT191,CT190,196,ET196,ST190..3FC,5F

厚さ=1.20,ﾏｰｸ 04

 2
41361-22140

AT191,CT190,196,ET196,ST190..3FC,5F

厚さ=0.95,ﾏｰｸ 14

 2
