CT196V-DXMDS (1992)

Toyota Caldina

Production Nov 1992 - May 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9211-9601)CT19#

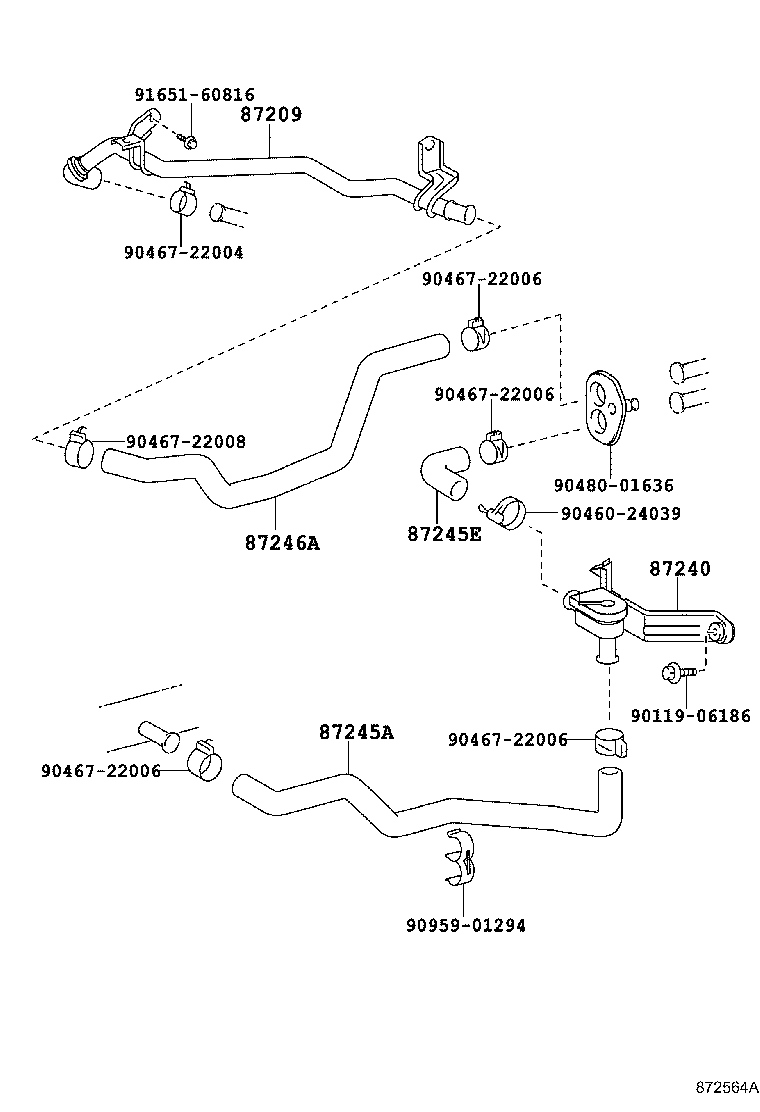

Click highlighted areas on diagram

diagram 87209 87240 87245A 87245E 87246A 9011906186 9046024039 9046722004 9046722006 9046722006 9046722006 9046722006 9046722008 9048001636 9095901294 9165160816
Part # Description Qty Price
87209 - HOSE SUB-ASSY, WATER
87209-20290

CT19#

 1
87240 - VALVE ASSY, HEATER WATER
87240-20370

CT19#,ET196,ST19#

 1
87240-20370

CT19#,ET196,ST19#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-21070

CT196,198

 1
87245-2B690

CT190,196

 1
87245E - HOSE, HEATER WATER, INLET E
87245-2B610

CT19#,ET196,ST19#

 1
87245-2B610

CT19#,ET196,ST19#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2B700

CT190,196

 1
87245-21080

CT196,197,198,199

 1
Common parts
90119-06186
90460-24039
90467-22004
90467-22006
90467-22008
90480-01636
90959-01294
91651-60816

(9601- )

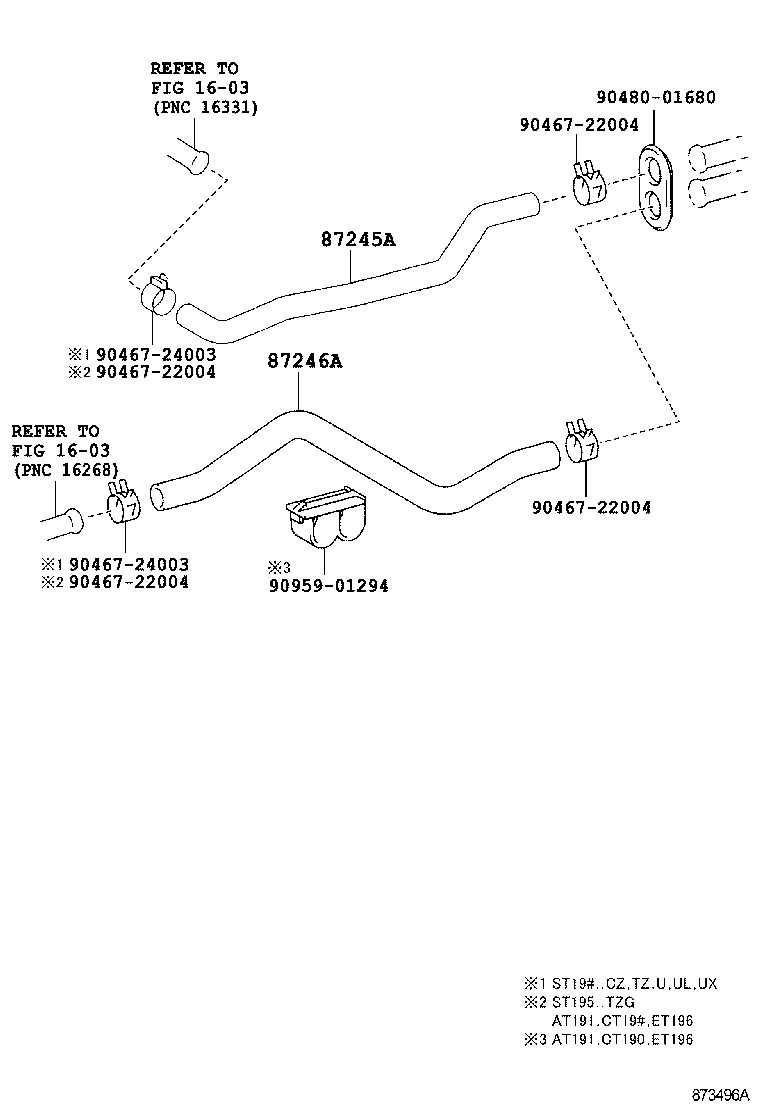

Click highlighted areas on diagram

diagram 1603 1603 87245A 87246A 9046722004 9046722004 9046722004 9046722004 9046724003 9046724003 9048001680 9095901294
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-21070

CT196,198

 1
87245-2B690

CT190,196

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-2B700

CT190,196

 1
87245-21080

CT196,197,198,199

 1
Common parts
90467-22004
90467-24003
90480-01680
90959-01294
Linked diagrams
1603
