CT196V-DXMDS (1992)

Toyota Caldina

Production Nov 1992 - May 1998
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

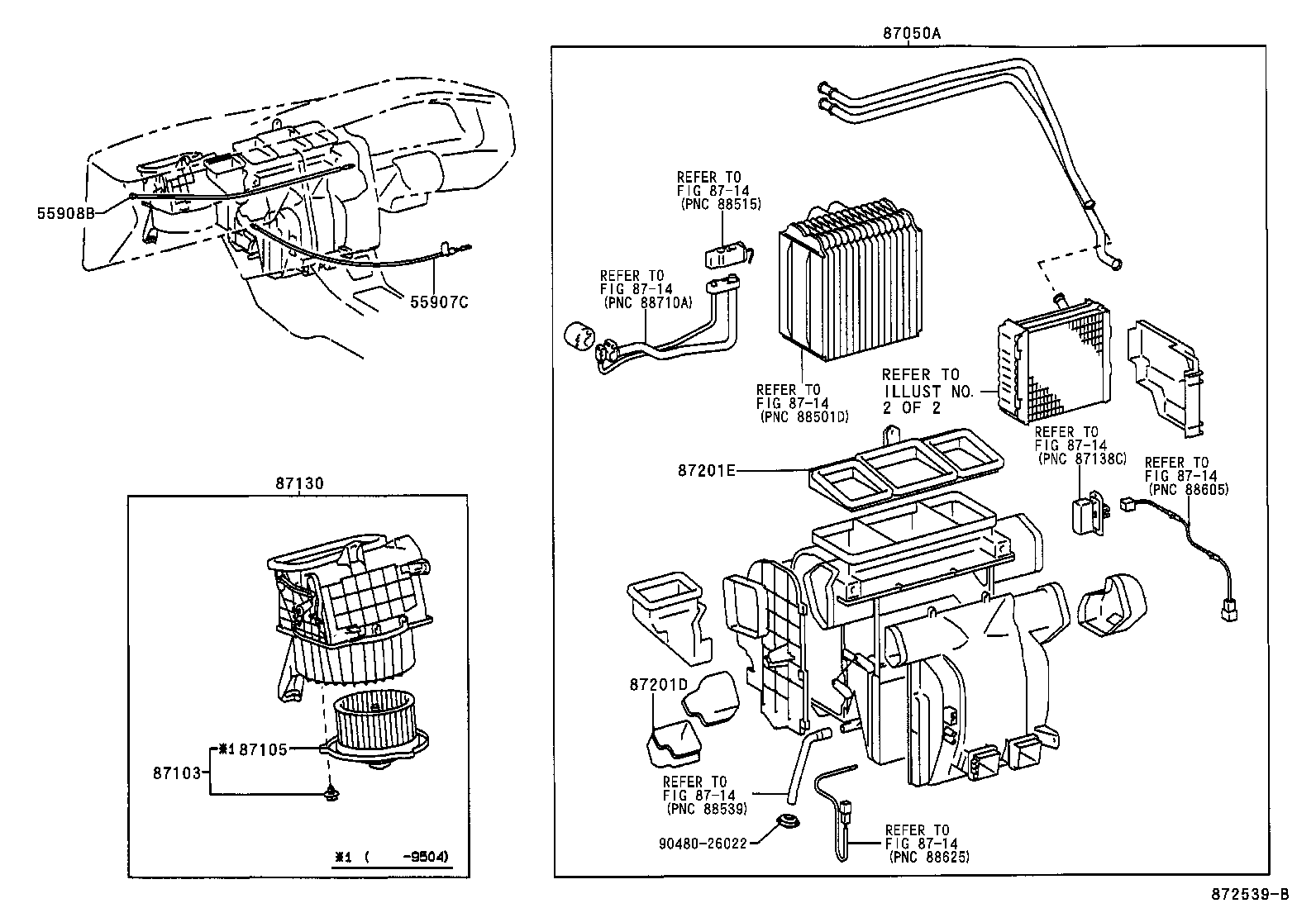

ILLUST NO. 1 OF 2(9211-9601)

Click highlighted areas on diagram

ﾚﾊﾞ- ｼｷ

diagram 55907C 55908B 87050A 87103 87105 87130 8714 8714 8714 8714 8714 8714 8714 87201D 87201E 9048026022
Part # Description Qty Price
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-20300

CT196,198,ET196

 1
55908B - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-20170

CT196,198,ET196

 1
87050A - RADIATOR ASSY, AIR CONDITIONER
87050-20050

CT196,198,ET196..U,UL

 1
87050-20060

CT196,198,ET196..U,UL

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-20080

CT19#,ET196,ST19#

 1
87103-20080

CT19#,ET196,ST19#

 1
87103-22100

CT19#,ET196,ST19#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-33010

CT19#,ET196,ST19#

 1
87105-33010

CT19#,ET196,ST19#

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-20500

CT196,198,ET196

 1
87201D - DUCT SUB-ASSY, AIR
87201-20290

CT19#,ET196,ST19#

 1
87201-20290

CT19#,ET196,ST19#

 1
87201E - DUCT SUB-ASSY, AIR, NO.2
87201-20390

CT19#,ET196,ST19#

 1
87201-20390

CT19#,ET196,ST19#

 1
Common parts
90480-26022
Linked diagrams
8714

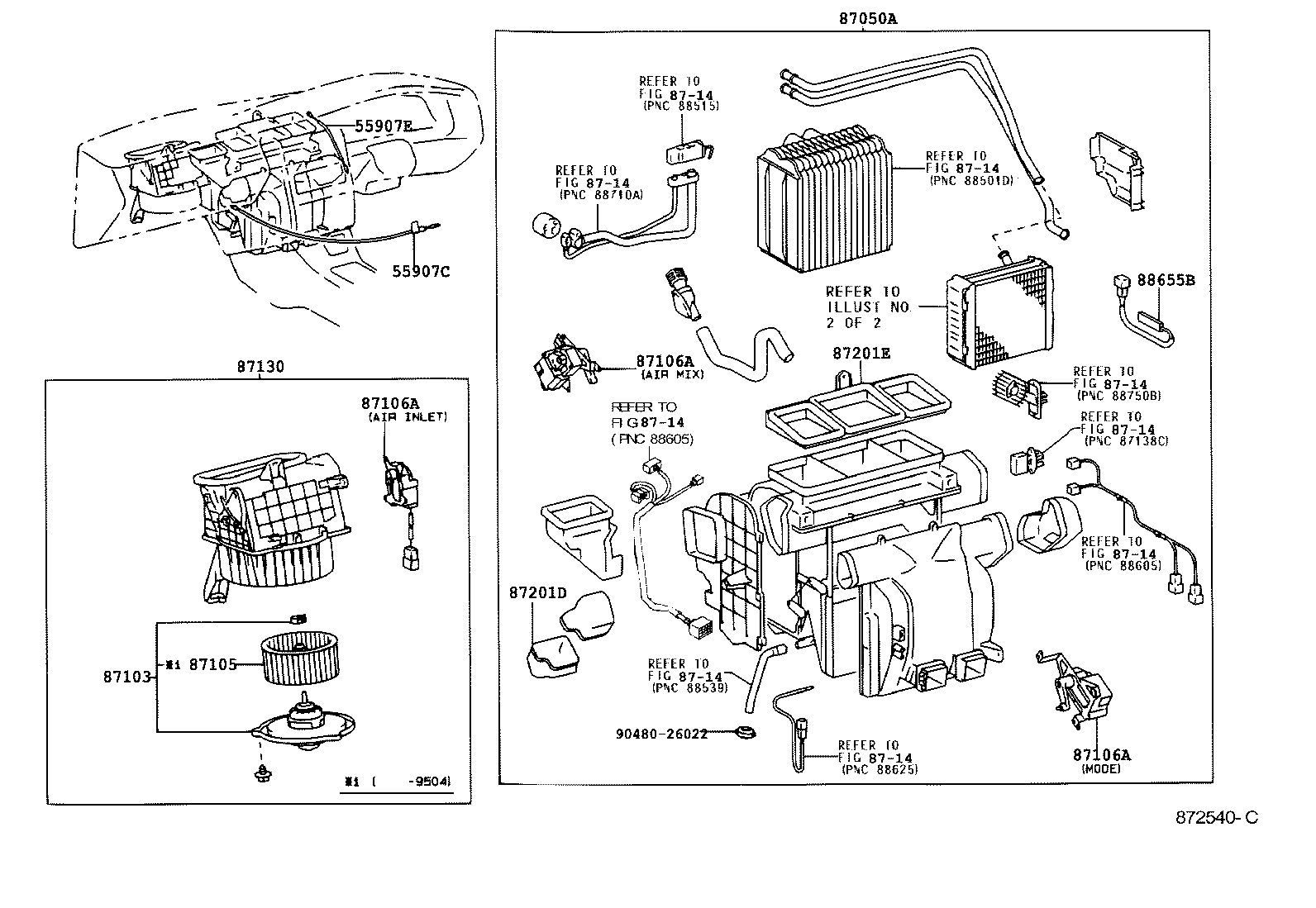

ILLUST NO. 1 OF 2(9211-9601)

Click highlighted areas on diagram

ﾌﾟﾂｼﾕ ｼｷ

diagram 55907C 55907E 87050A 87103 87105 87106A 87106A 87106A 87130 8714 8714 8714 8714 8714 8714 8714 8714 8714 87201D 87201E 88655B 9048026022
Part # Description Qty Price
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-20300

CT196,198,ET196

 1
55907E - CABLE SUB-ASSY, WATER VALVE CONTROL, NO.2
55907-20350

CT19#,ET196,ST19#

 1
55907-20350

CT19#,ET196,ST19#

 1
87050A - RADIATOR ASSY, AIR CONDITIONER
87050-20050

CT196,198,ET196..U,UL

 1
87050-20060

CT196,198,ET196..U,UL

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-20080

CT19#,ET196,ST19#

 1
87103-20080

CT19#,ET196,ST19#

 1
87103-22100

CT19#,ET196,ST19#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-33010

CT19#,ET196,ST19#

 1
87105-33010

CT19#,ET196,ST19#

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-20500

CT196,198,ET196

 1
87201D - DUCT SUB-ASSY, AIR
87201-20290

CT19#,ET196,ST19#

 1
87201-20290

CT19#,ET196,ST19#

 1
87201E - DUCT SUB-ASSY, AIR, NO.2
87201-20390

CT19#,ET196,ST19#

 1
87201-20390

CT19#,ET196,ST19#

 1
Common parts
90480-26022
Linked diagrams
8714

ILLUST NO. 2 OF 2(9211-9601)

Click highlighted areas on diagram

diagram 87107
Part # Description Qty Price

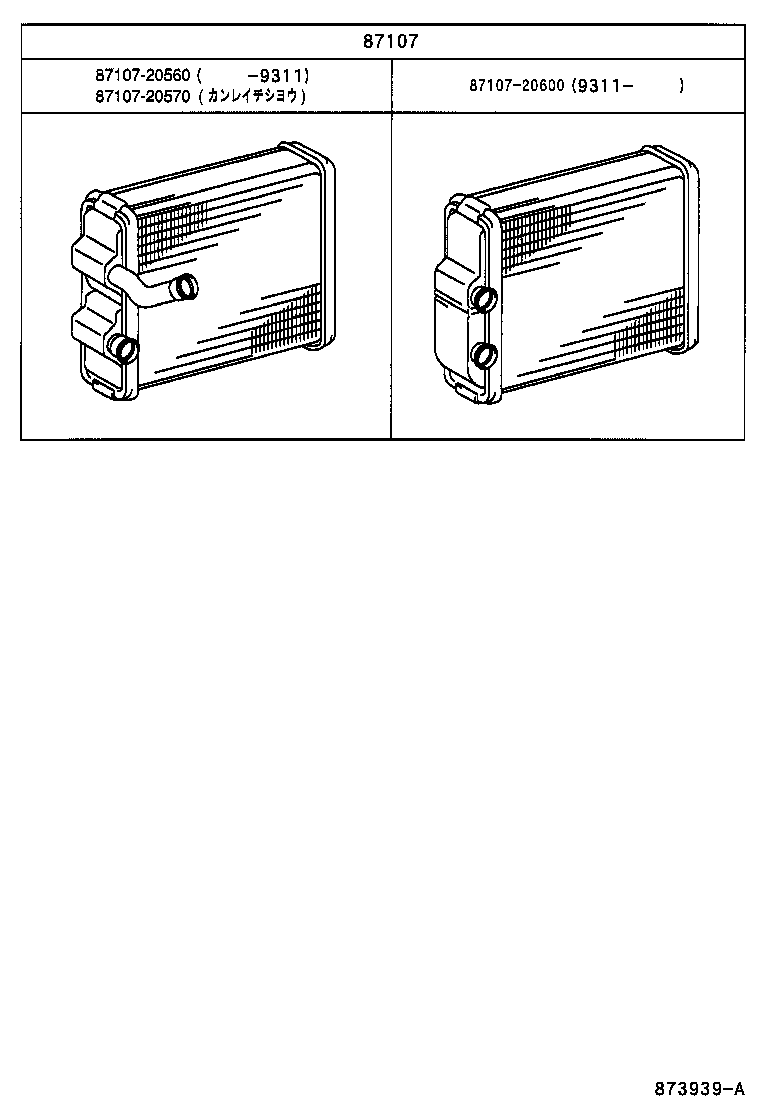

87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-20570

CT19#,ET196,ST19#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87107-20600

CT19#,ET196,ST19#

 1
87107-20560

CT19#,ET196,ST19#

 1
