CT190G-DWPMX (1996)
Toyota Caldina
Production
Jan 1996
-
Aug 1997
Engine
2CT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9601-9708)2CT

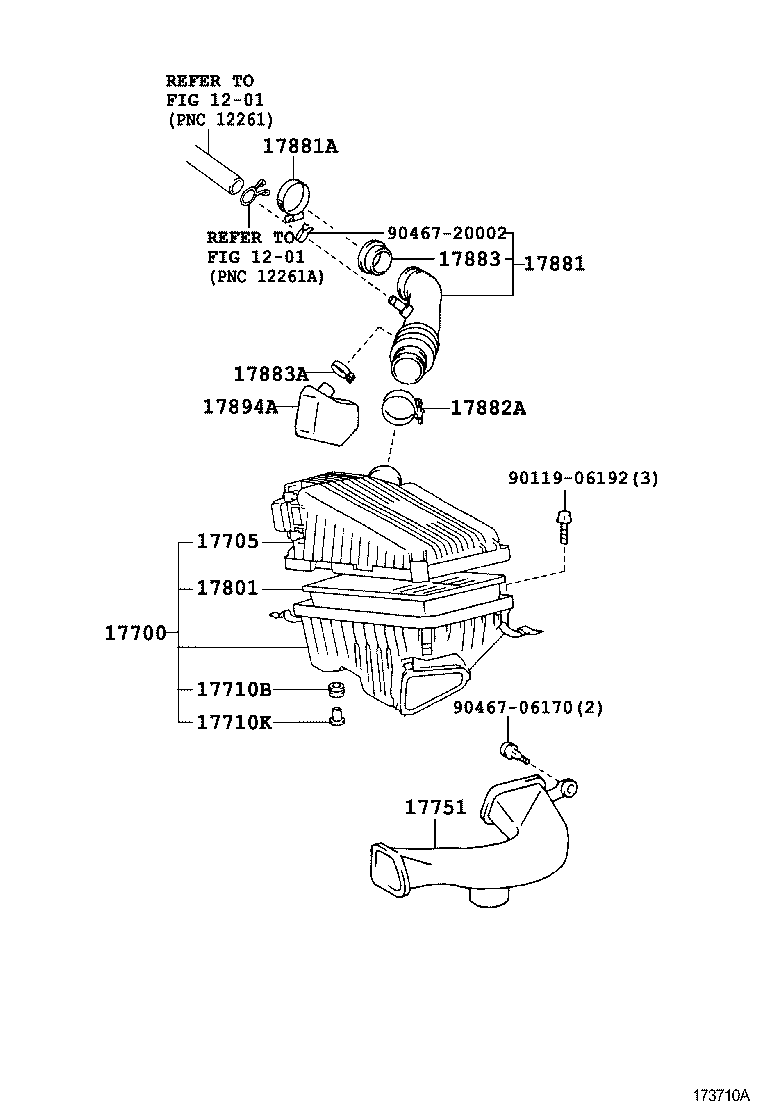

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-64350 |
2CT..CT190 |
1 | ||
| 17700-64300 |
2C..CT19# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-64230 |
2CT..CT190 |
1 | ||
| 17705-64190 |
2C..CT19# |
1 | ||
| 17710B - GROMMET | ||||
| 90480-20027 |
2C#,3CE..CT19# |
3 | ||
| 17710K - COLLAR(FOR AIR CLEANER) | ||||
| 90387-11066 |
2C#,3CE..CT19# |
3 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-16070 |
2C..CT19# |
1 | ||
| 17751-64030 |
2CT..CT190 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-64060 |
2CT..CT190 |
1 | ||
| 17801-64070 |
2C,3CE..CT19# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-64260 |
2C..CT19# |
1 | ||
| 17881-64290 |
2CT..CT190 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-65007 |
2C..CT19# RESONATOR SIDE |
1 | ||
| 90460-65007 |
2C#..CT19# |
1 | ||
| 96111-10650 |
2C..CT19# AIR CLEANER SIDE |
1 | ||
| 90460-65007 |
2CT..CT190 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-65007 |
2C..CT19# RESONATOR SIDE |
1 | ||
| 96111-10650 |
2C..CT19# ｴﾝｼﾞﾝ側 |
1 | ||
| 96111-10730 |
2C#,3CE..CT19# |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-64050 |
2CT..CT190 |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10450 |
2CT..CT190 |
1 | ||
| 17894A - RESONATOR, INTAKE AIR, NO.2 | ||||
| 17894-64020 |
2C..CT190,196 |
1 | ||
| 17894-64050 |
2CT..CT190 |
1 | ||
| Common parts | ||||
| 90119-06192 | ||||
| 90467-06170 | ||||
| 90467-20002 | ||||
| Linked diagrams | ||||
| 1201 | ||||
