CT190G-DWPMX (1996)

Toyota Caldina

Production Jan 1996 - Aug 1997
Engine 2CT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )7AFE,2C#,3CE,5EFE

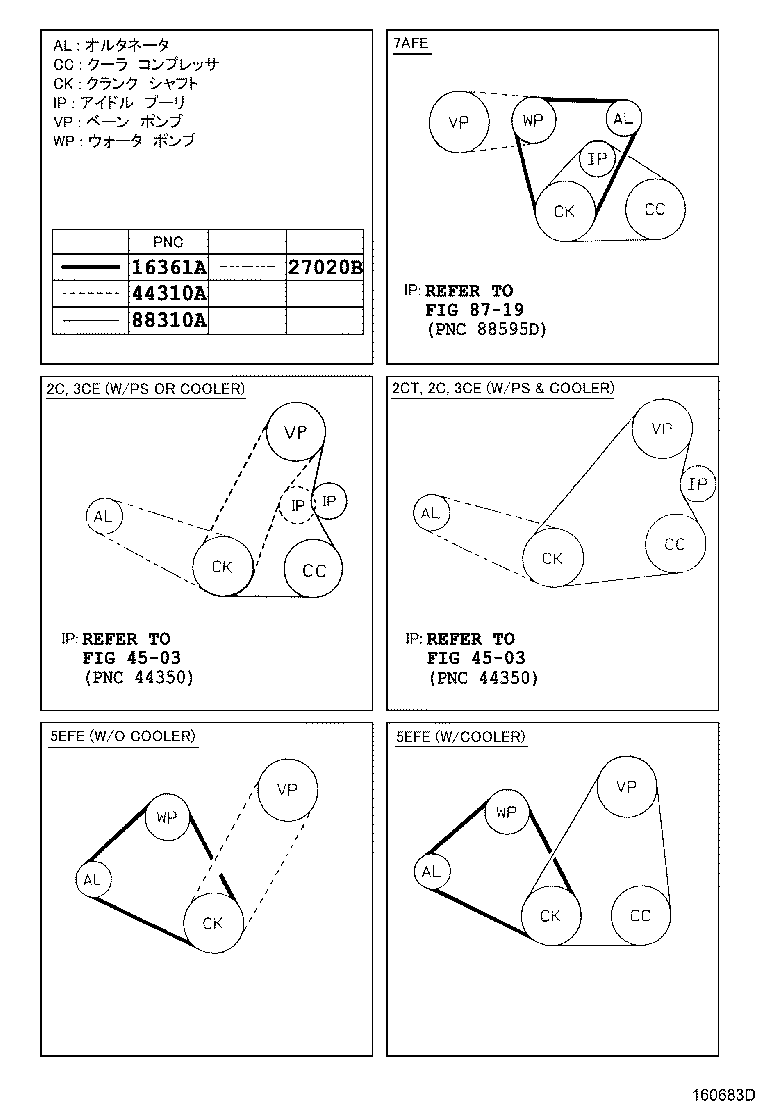

Click highlighted areas on diagram

diagram 16361A 27020B 44310A 4503 4503 8719 88310A
Part # Description Qty Price
27020B - BELT, V(FOR ALTERNATOR)
90916-02372

2C#..CT19#

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99365-91210

CT190,196..CZ,FZ,UX

長さ=1210,BANDO

 1
99365-21210

CT19#

長さ=1210

 1
99365-21210

CT190,196

長さ=1210,MITSUBOSHI

 1
Linked diagrams
4503
8719
