CT190G-DWPMX (1996)
Toyota Caldina
Production
Jan 1996
-
Aug 1997
Engine
2CT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9601- )2C#,3CE..CT190,196,197

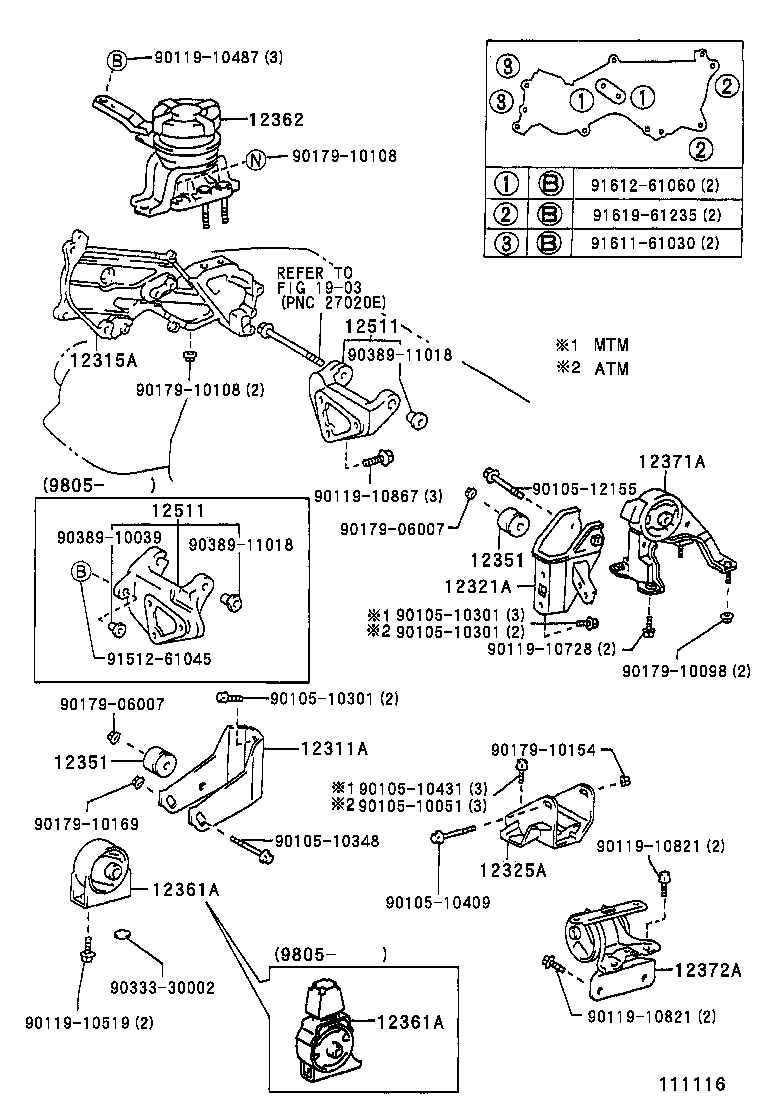

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-64200 |
2C#,3CE..CT190,196,197 |
1 | ||
| 12311-64150 |
2C..CT190,196 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-64080 |
2C..CT190,196 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-64240 |
2C..CT190,196..4FC |
1 | ||
| 12321-64280 |
2C#,3CE..CT190,196,197..4FC |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-64110 |
2C#,3CE..CT190,196,197..4FC |
1 | ||
| 12325-64070 |
2C..CT190,196..4FC |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-74010 |
2C#,3CE..CT190,196,197..4FC 品名ｺｰﾄﾞ 12321A |
1 | ||
| 12351-64060 |
2C#,3CE..CT190,196,197 品名ｺｰﾄﾞ 12311A |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-74010 |
2C#,3CE..CT190,196,197..4FC 品名ｺｰﾄﾞ 12321A |
1 | ||
| 12351-64060 |
2C#,3CE..CT190,196,197 品名ｺｰﾄﾞ 12311A |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-64250 |
2C..CT190,196 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-64250 |
2C..CT190,196 |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-64190 |
2C..CT190,196 |
1 | ||
| 12305-64140 |
2C#..CT190,196 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-64240 |
2C..CT190,196 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-64180 |
2C..CT190,196..4FC |
1 | ||
| 12372-64220 |
2C#..CT190,196..4FC |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-64060 |
2C#..CT19# |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-64060 |
2C#..CT19# |
1 | ||
| Common parts | ||||
| 90105-10051 | ||||
| 90105-10301 | ||||
| 90105-10348 | ||||
| 90105-10409 | ||||
| 90105-10431 | ||||
| 90105-12155 | ||||
| 90119-10487 | ||||
| 90119-10519 | ||||
| 90119-10728 | ||||
| 90119-10821 | ||||
| 90119-10867 | ||||
| 90179-06007 | ||||
| 90179-10098 | ||||
| 90179-10108 | ||||
| 90179-10154 | ||||
| 90179-10169 | ||||
| 90333-30002 | ||||
| 90389-10039 | ||||
| 90389-11018 | ||||
| 91512-61045 | ||||
| 91611-61030 | ||||
| 91612-61060 | ||||
| 91619-61235 | ||||
| Linked diagrams | ||||
| 1903 | ||||
