CT190G-DWPMS (1992)
Toyota Caldina
(9211- )

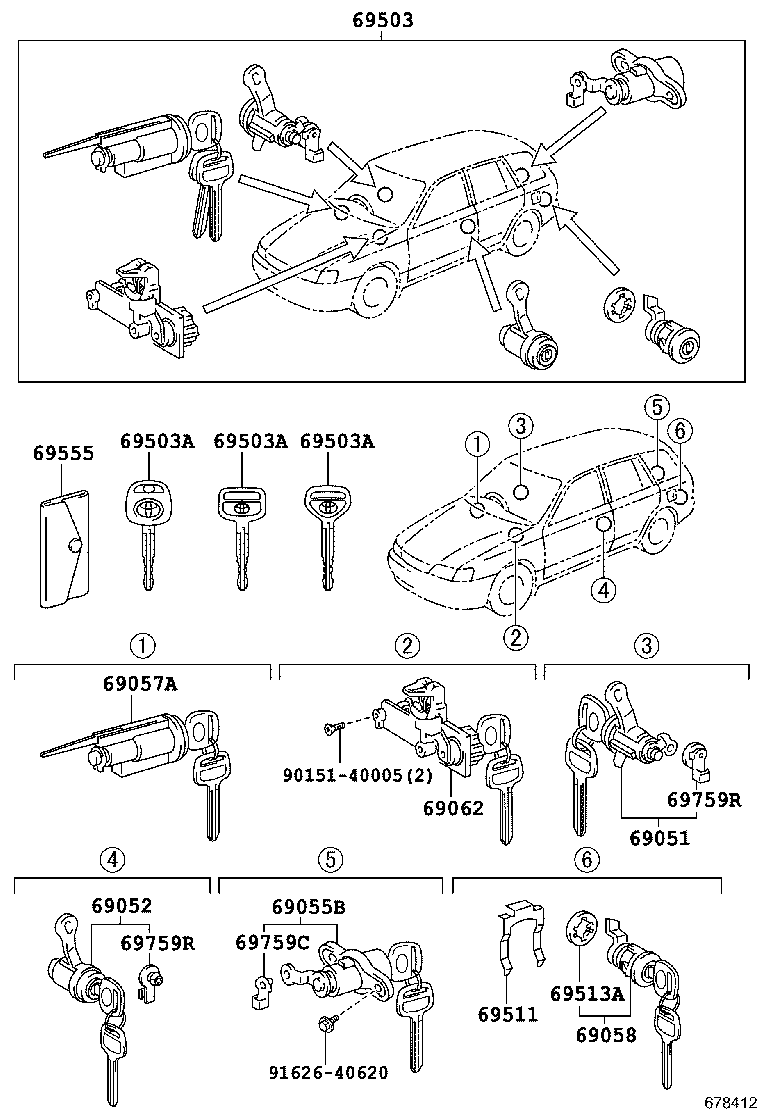

ｱﾘ(ﾜｲﾔﾚｽ ﾄﾞｱﾛﾂｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-21070 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-21070 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 69055B - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-21020 |
CT19#,ET196,ST19# |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-21020 |
CT19#,ET196,ST19# |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-21030 |
CT19#,ET196,ST19# |
1 | ||
| 69056-21030 |
CT19#,ET196,ST19# |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00208 |
CT19#,ET196,ST19# ｻﾌﾞｷｰ |
1 | ||
| 90999-00192 |
CT19#,ET196,ST19# ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00193 |
CT19#,ET196,ST19# ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00208 |
CT19#,ET196,ST19# ｻﾌﾞｷｰ |
1 | ||
| 90999-00192 |
CT19#,ET196,ST19# ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00193 |
CT19#,ET196,ST19# ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-17020 |
CT19#,ET196,ST19# |
1 | ||
| 69555-17020 |
CT19#,ET196,ST19# |
1 | ||
| 69759C - SNAP, BACK DOOR LOCK CYLINDER | ||||
| 69759-24090 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12080 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 69759-12090 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12080 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 69759-12090 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| Common parts | ||||
| 90151-40005 | ||||
| 91626-40620 | ||||
| Linked diagrams | ||||
| 8420 | ||||

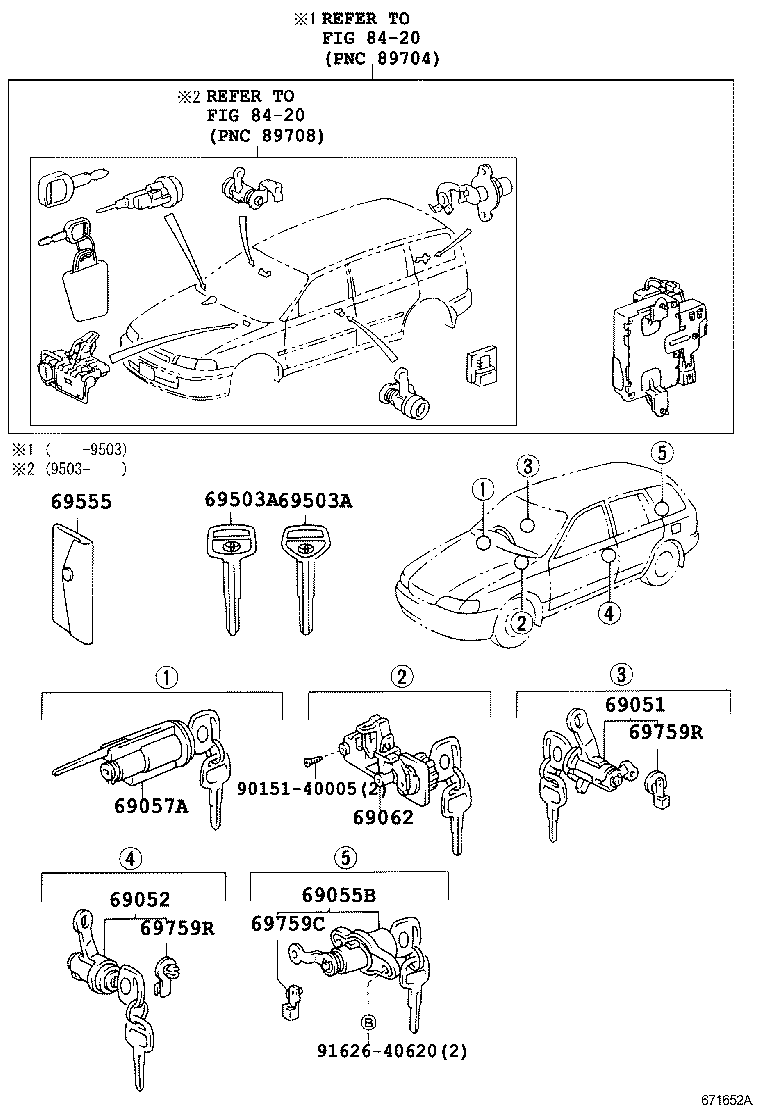

(9211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-21070 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-21070 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 69055B - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-21020 |
CT19#,ET196,ST19# |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-21020 |
CT19#,ET196,ST19# |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-21030 |
CT19#,ET196,ST19# |
1 | ||
| 69056-21030 |
CT19#,ET196,ST19# |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-21060 |
CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00208 |
CT19#,ET196,ST19# ｻﾌﾞｷｰ |
1 | ||
| 90999-00192 |
CT19#,ET196,ST19# ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00193 |
CT19#,ET196,ST19# ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00208 |
CT19#,ET196,ST19# ｻﾌﾞｷｰ |
1 | ||
| 90999-00192 |
CT19#,ET196,ST19# ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00193 |
CT19#,ET196,ST19# ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00208 |
CT19#,ET196,ST19# ｻﾌﾞｷｰ |
1 | ||
| 90999-00192 |
CT19#,ET196,ST19# ﾏｽﾀｰｷｰ |
1 | ||
| 90999-00193 |
CT19#,ET196,ST19# ﾏｽﾀｰｷｰ,*68付き |
1 | ||
| 69555 - COVER, KEY | ||||
| 69555-17020 |
CT19#,ET196,ST19# |
1 | ||
| 69555-17020 |
CT19#,ET196,ST19# |
1 | ||
| 69759C - SNAP, BACK DOOR LOCK CYLINDER | ||||
| 69759-24090 |
AT191,CT19#,ET196,ST19# |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12080 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 69759-12090 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-12080 |
AT191,CT19#,ET196,ST19# 右側 |
1 | ||
| 69759-12090 |
AT191,CT19#,ET196,ST19# 左側 |
1 | ||
| Common parts | ||||
| 90151-40005 | ||||
| 91626-40620 | ||||
