CT190G-DWPEX (1996)
Toyota Caldina

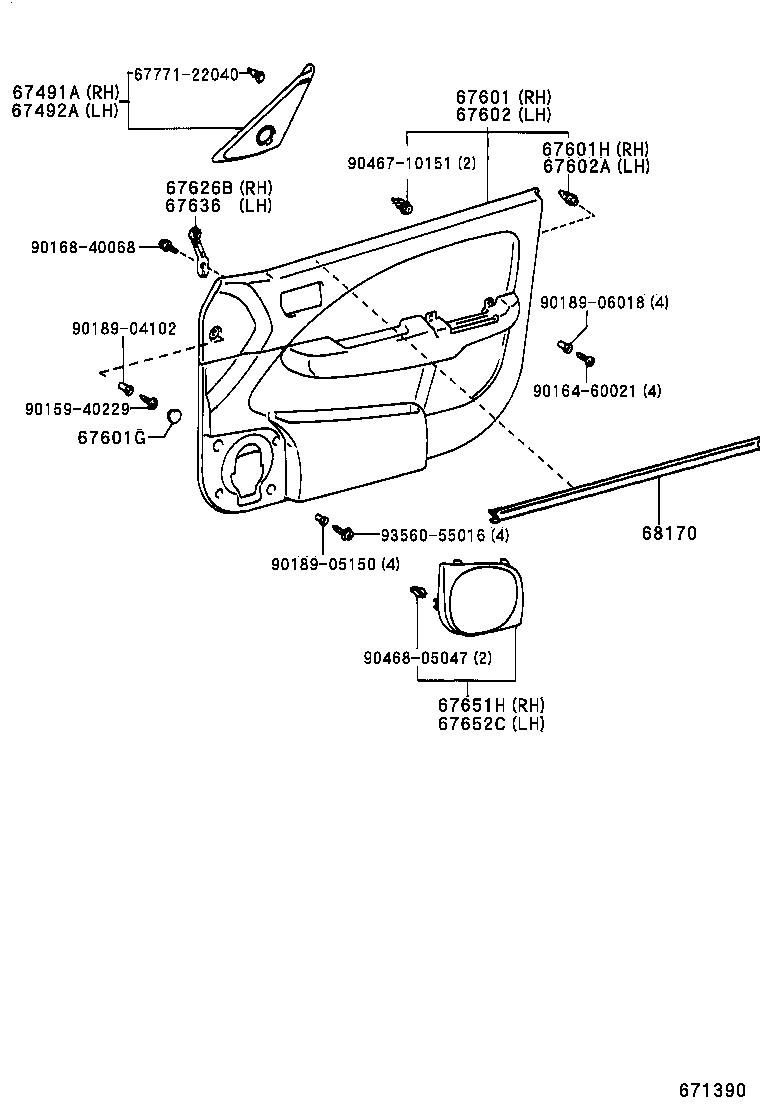

ILLUST NO. 1 OF 2(9601- )CZ,FZ,TZ,TZG,UX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-20270C0 |
CT190,ST19#..CZ,TZ ｱﾘ(ﾂｲ-ﾀ),BLACK,TRIM2# |
1 | ||
| 67491-21040C0 |
AT191,CT190,ST19#..CZ,TZ,TZG ｱﾘ(ﾂｲ-ﾀ),BLACK,TRIM1# |
1 | ||
| 67491-20250 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 67491-21030 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-21030C0 |
AT191,CT190,ST19#..CZ,TZ,TZG ｱﾘ(ﾂｲ-ﾀ),BLACK,TRIM1# |
1 | ||
| 67492-20290C0 |
CT190,ST19#..CZ,TZ ｱﾘ(ﾂｲ-ﾀ),BLACK,TRIM2# |
1 | ||
| 67492-20270 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 67492-21020 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-21020C1 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
1 | ||
| 67610-21130B0 |
AT191,CT190,ST19#..CZ,TZ SHADOW GRAY,TRIM1# |
1 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01503C0 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX BLACK,TRIM2# |
2 | ||
| 90950-01746P0 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX SHADOW GRAY,TRIM1# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-20110 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
5 | ||
| 67771-28030 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX ｲｴﾛｰ |
5 | ||
| 67771-21010 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX WHITE |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-21010C1 |
CT190,ST19#..CZ,TZ BLACK,TRIM2# |
1 | ||
| 67620-21120B0 |
AT191,CT190,ST19#..CZ,TZ SHADOW GRAY,TRIM1# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-21010 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX WHITE |
1 | ||
| 67771-28030 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX ｲｴﾛｰ |
5 | ||
| 67771-20110 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
5 | ||
| 67626B - BRACKET, DOOR TRIM, NO.2 RH | ||||
| 67626-20070 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 67636 - BRACKET, DOOR TRIM, NO.2 LH | ||||
| 67636-20020 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX |
1 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-20060C1 |
CT19#,ET196,ST19# BLACK,TRIM2# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67652-20050C1 |
CT190,196,ET196,ST19#..CZ,FZ,TZ,UX BLACK,TRIM2# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-20060 |
AT191,CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX 右側 |
1 | ||
| 68172-20050 |
AT191,CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX 左側 |
1 | ||
| 68172-20080 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX 左側 |
1 | ||
| 68171-20090 |
AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX 右側 |
1 | ||
| Common parts | ||||
| 67771-22040 | ||||
| 90159-40229 | ||||
| 90164-60021 | ||||
| 90168-40068 | ||||
| 90189-04102 | ||||
| 90189-05150 | ||||
| 90189-06018 | ||||
| 90467-10151 | ||||
| 90468-05047 | ||||
| 93560-55016 | ||||
