CT190G-DWPES (1992)

Toyota Caldina

Production Nov 1992 - Jan 1996
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9211-9601)CT190,ST190,191

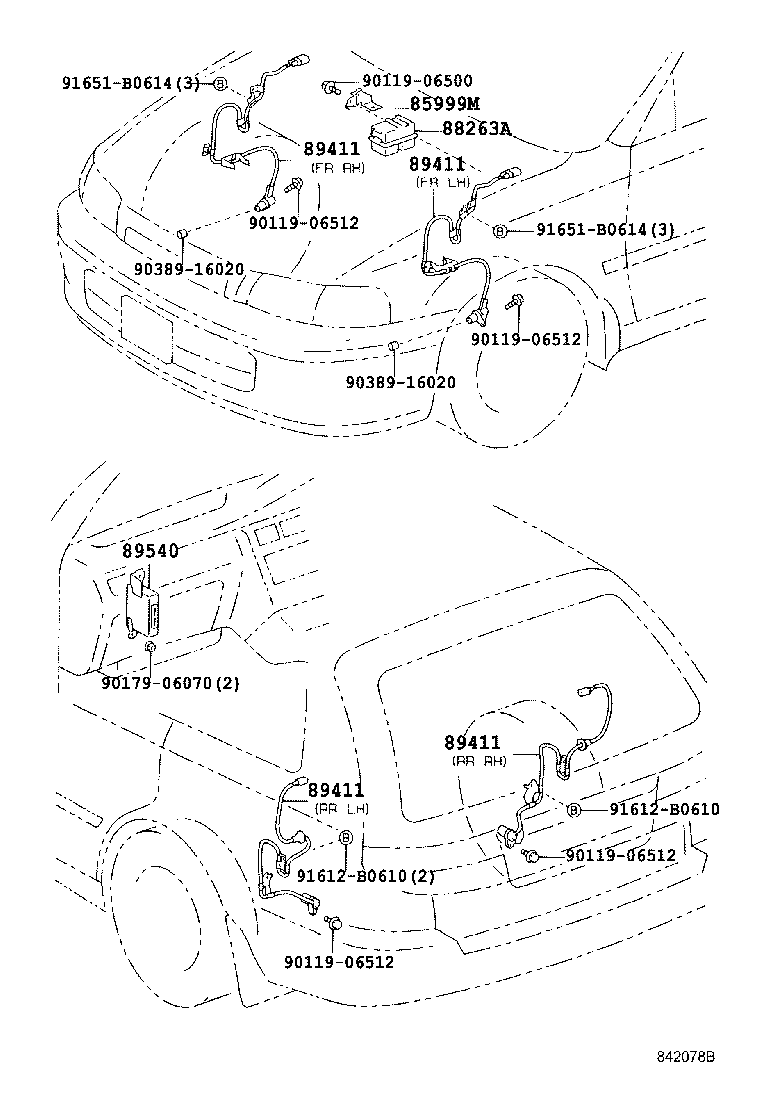

Click highlighted areas on diagram

diagram 85999M 88263A 89411 89411 89411 89411 89540 9011906500 9011906512 9011906512 9011906512 9011906512 9017906070 9038916020 9038916020 91612B0610 91612B0610 91651B0614 91651B0614
Part # Description Qty Price
85999M - BRACKET, RELAY
85999-20500

CT190,ST19#

 1
85999-20500

CT190,ST19#

 1
88263A - RELAY, SKID CONTROL
88263-12070

CT190,ST19#

 1
88263-32060

CT190,ST19#

 1
89411 - SENSOR, SPEED
89543-20080

CT190,ST19#

FRONT LH

 1
89542-20080

CT190,ST19#

FRONT RH

 1
89546-32030

CT190,ST190,191

REAR LH

 1
89543-20080

CT190,ST19#

FRONT LH

 1
89545-32030

CT190,ST190,191

REAR RH

 1
89542-20080

CT190,ST19#

FRONT RH

 1
89411 - SENSOR, SPEED
89543-20080

CT190,ST19#

FRONT LH

 1
89542-20080

CT190,ST19#

FRONT RH

 1
89546-32030

CT190,ST190,191

REAR LH

 1
89543-20080

CT190,ST19#

FRONT LH

 1
89545-32030

CT190,ST190,191

REAR RH

 1
89542-20080

CT190,ST19#

FRONT RH

 1
89411 - SENSOR, SPEED
89543-20080

CT190,ST19#

FRONT LH

 1
89542-20080

CT190,ST19#

FRONT RH

 1
89546-32030

CT190,ST190,191

REAR LH

 1
89543-20080

CT190,ST19#

FRONT LH

 1
89545-32030

CT190,ST190,191

REAR RH

 1
89542-20080

CT190,ST19#

FRONT RH

 1
89411 - SENSOR, SPEED
89543-20080

CT190,ST19#

FRONT LH

 1
89542-20080

CT190,ST19#

FRONT RH

 1
89546-32030

CT190,ST190,191

REAR LH

 1
89543-20080

CT190,ST19#

FRONT LH

 1
89545-32030

CT190,ST190,191

REAR RH

 1
89542-20080

CT190,ST19#

FRONT RH

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-20250

CT190,ST190,191

 1
Common parts
90119-06500
90119-06512
90179-06070
90389-16020
91612-B0610
91651-B0614
