CT190G-DWPES (1992)

Toyota Caldina

Production Nov 1992 - Jan 1996
Engine 2C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9211-9601)2C

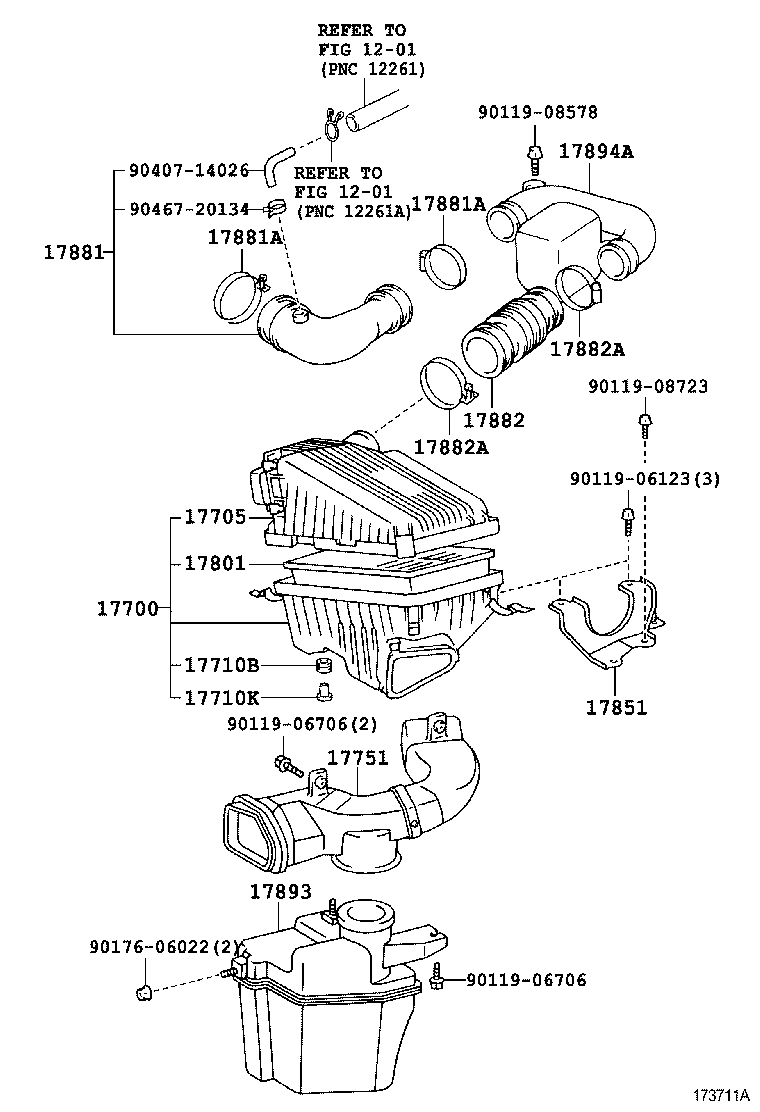

Click highlighted areas on diagram

diagram 1201 1201 17700 17705 17710B 17710K 17751 17801 17851 17881 17881A 17881A 17882 17882A 17882A 17893 17894A 9011906123 9011906706 9011906706 9011908578 9011908723 9017606022 9040714026 9046720134
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-64300

2C..CT19#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-64190

2C..CT19#

 1
17710B - GROMMET
90480-20027

2C#,3CE..CT19#

 3
17710K - COLLAR(FOR AIR CLEANER)
90387-11066

2C#,3CE..CT19#

 3
17751 - INLET, AIR CLEANER, NO.1
17751-16070

2C..CT19#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-64070

2C,3CE..CT19#

 1
17851 - BRACKET, AIR CLEANER SUPPORT
17851-74040

2C..CT19#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-64260

2C..CT19#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-65007

2C..CT19#

RESONATOR SIDE

 1
96111-10650

2C..CT19#

AIR CLEANER SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-65007

2C..CT19#

RESONATOR SIDE

 1
96111-10650

2C..CT19#

AIR CLEANER SIDE

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-64070

2C..CT19#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-65007

2C..CT19#

RESONATOR SIDE

 1
96111-10650

2C..CT19#

ｴﾝｼﾞﾝ側

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90460-65007

2C..CT19#

RESONATOR SIDE

 1
96111-10650

2C..CT19#

ｴﾝｼﾞﾝ側

 1
17893 - RESONATOR, INTAKE AIR
17893-64020

2C..CT19#

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-64020

2C..CT190,196

 1
Common parts
90119-06123
90119-06706
90119-08578
90119-08723
90176-06022
90407-14026
90467-20134
Linked diagrams
1201
