CT190G-DWMMX (1996)

Toyota Caldina

Production Jan 1996 - Aug 1997
Engine 2CT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )CT190,196,197..5F

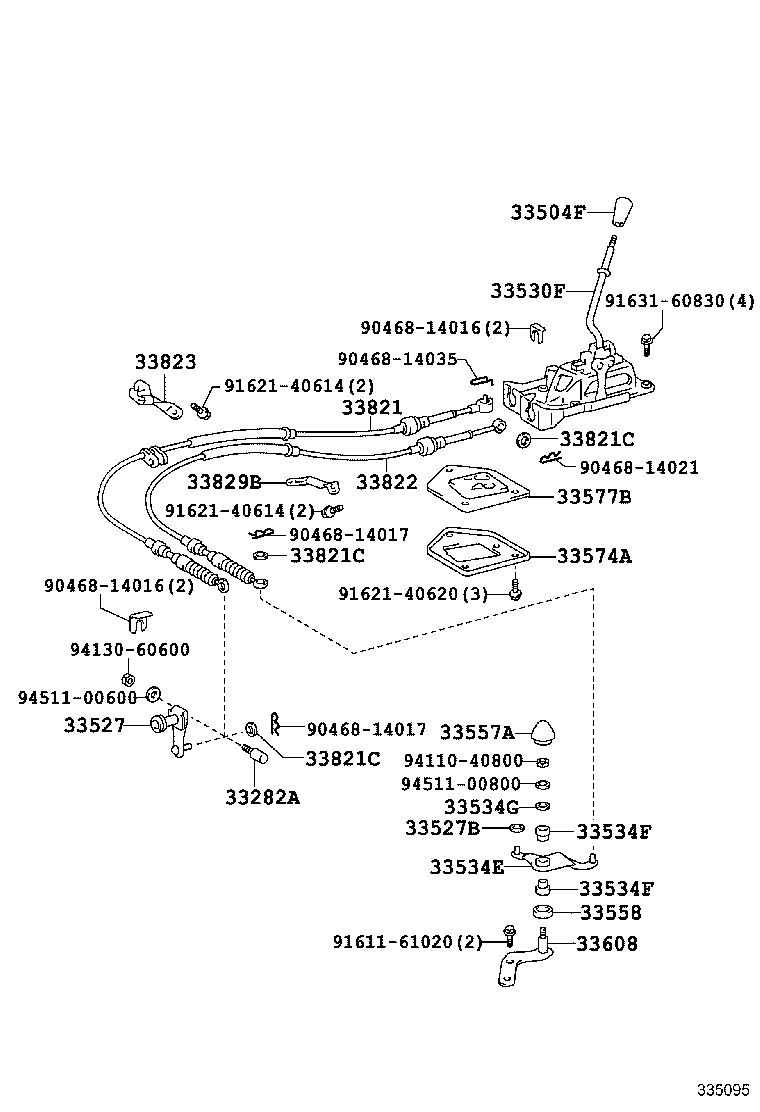

Click highlighted areas on diagram

diagram 33282A 33504F 33527 33527B 33530F 33534E 33534F 33534F 33534G 33557A 33558 33574A 33577B 33608 33821 33821C 33821C 33821C 33822 33823 33829B 9046814016 9046814016 9046814017 9046814017 9046814021 9046814035 9161161020 9162140614 9162140614 9162140620 9163160830 9411040800 9413060600 9451100600 9451100800
Part # Description Qty Price
33282A - PIN, LEVER LOCK (FOR CONTROL SHIFT LEVER)
33282-35010

CT190,196,197,ST190..5F

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12180C0

CT19#,ET196,ST190,195..5F..(CZ,FZ,UL,UX)

BLACK,TRIM2#

 1
33527 - LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)
33527-32010

CT190,196,197,ST190..5F

 1
33527B - BUSH (FOR CONTROL SHIFT LEVER)
33557-33010

CT190,196,ST190..5F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-20570

CT190,196,ET196,ST190..5F

 1
33530-20720

AT191,CT190,196,ET196..5F

 1
33530-20721

AT191,CT190,196,197,ET196..5F

 1
33534E - CRANK, SELECTING BELL, NO.2
33534-33010

CT190,196,197,ST190..5F

 1
33534F - BUSH (FOR SELECTING BELLCRANK NO.2)
90386-12022

AT191,CT19#,ET196,ST190,195..5F

 2
33534F - BUSH (FOR SELECTING BELLCRANK NO.2)
90386-12022

AT191,CT19#,ET196,ST190,195..5F

 2
33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
90201-08028

AT191,CT19#,ET196,ST190,195..5F

 1
33557A - COVER, SELECTING BELLCRANK DUST, NO.1
33557-32010

AT191,CT19#,ET196,ST190,195..5F

 1
33558 - COVER, SELECTING BELLCRANK DUST, NO.2
33558-32010

CT190,196,197,ST190..5F

 1
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-20350

CT19#,ET196,ST190,195..5F

 1
33574-20380

AT191,CT19#,ET196,ST19#

 1
33577B - COVER, CONTROL SHAFT HOLE
33577-20010

AT191,CT19#,ET196,ST195..5F

 1
33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK
33608-33010

CT190,196,197,ST190..5F

 1
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33821-2B330

CT190,196,197..5F

 1
33821-2B120

CT190,196..5F

 1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-10042

AT191,CT190,196,198,ET196,ST195..5F

SHIFT LEVER SIDE

 1
90201-08077

AT191,CT190,196,198,ET196,ST190,195..5F

外径=30,TRANSAXLE SIDE

 2
90201-08023

CT190,196,ET196,ST190,195..5F

SHIFT LEVER SIDE

 1
90201-10113

AT191,CT19#,ET196,ST195..5F

外径=18

 1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-10042

AT191,CT190,196,198,ET196,ST195..5F

SHIFT LEVER SIDE

 1
90201-08077

AT191,CT190,196,198,ET196,ST190,195..5F

外径=30,TRANSAXLE SIDE

 2
90201-08023

CT190,196,ET196,ST190,195..5F

SHIFT LEVER SIDE

 1
90201-10113

AT191,CT19#,ET196,ST195..5F

外径=18

 1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-10042

AT191,CT190,196,198,ET196,ST195..5F

SHIFT LEVER SIDE

 1
90201-08077

AT191,CT190,196,198,ET196,ST190,195..5F

外径=30,TRANSAXLE SIDE

 2
90201-08023

CT190,196,ET196,ST190,195..5F

SHIFT LEVER SIDE

 1
90201-10113

AT191,CT19#,ET196,ST195..5F

外径=18

 1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33822-20630

CT190,196,197..5F

 1
33822-20470

CT190,196..5F

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-20100

CT190,196,ET196,ST190..5F

NIPPON CABLE

 1
33823-20120

CT190,196,ET196,ST190..5F

CHUO HATSUJO

 1
33823-20190

AT191,CT190,196,197,ET196..5F

 1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-20060

AT191,CT19#,ET196,ST195..5F

 1
Common parts
90468-14016
90468-14017
90468-14021
90468-14035
91611-61020
91621-40614
91621-40620
91631-60830
94110-40800
94130-60600
94511-00600
94511-00800
