CT190G-DWMMS (1992)

Toyota Caldina

Production Nov 1992 - Jan 1996
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

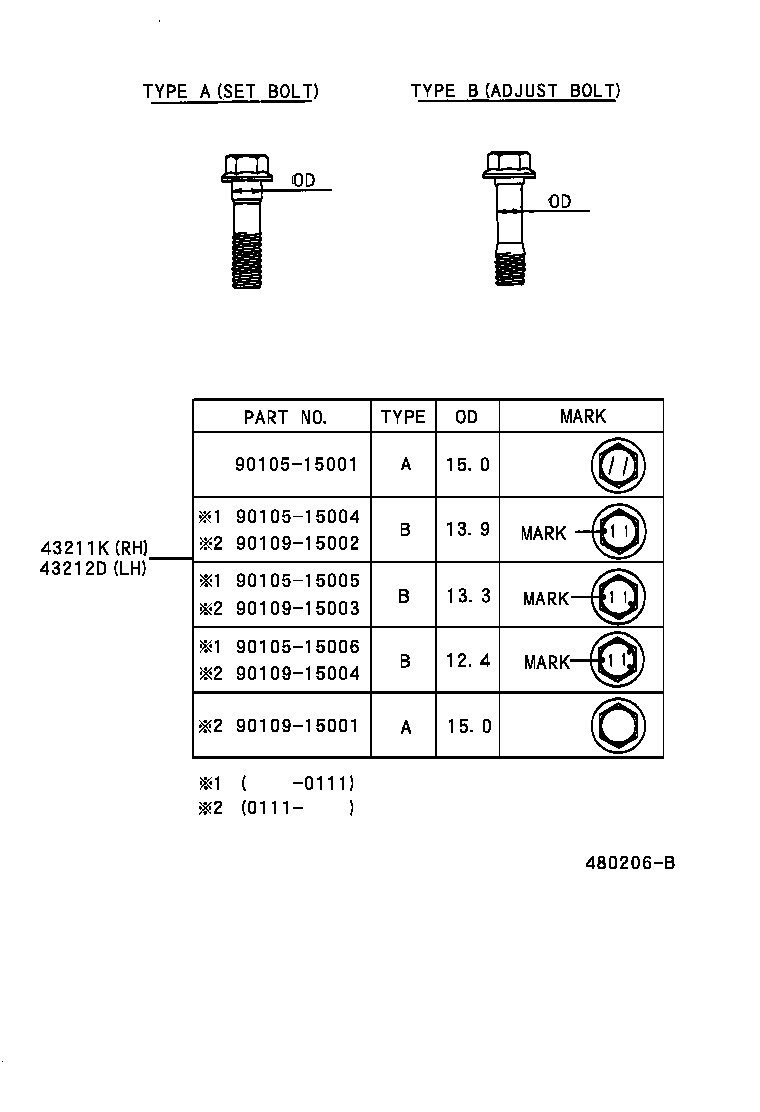

ILLUST NO. 2 OF 2(9211- )

Click highlighted areas on diagram

diagram 43211K 43212D
Part # Description Qty Price
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15001

AT191,CT19#,ET196,ST19#

外径=15.0

 2
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-15001

AT191,CT19#,ET196,ST19#

外径=15.0

 2

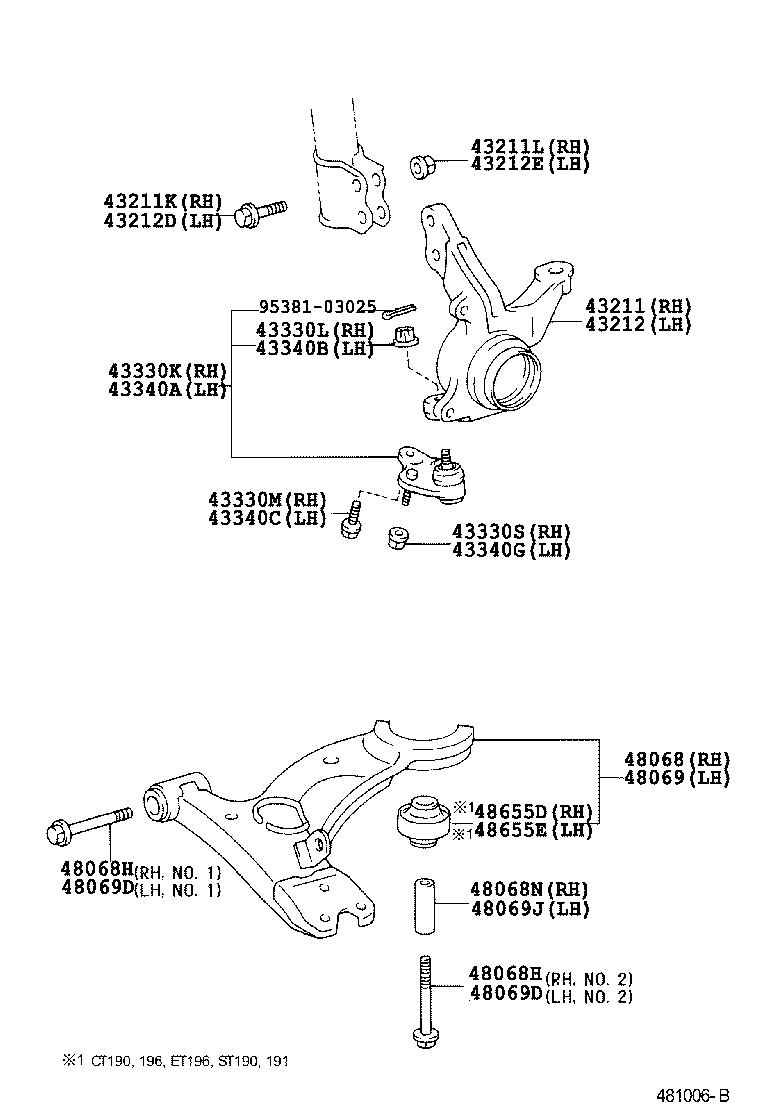

ILLUST NO. 1 OF 2(9211-9601)

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 48068 48068H 48068H 48068N 48069 48069D 48069D 48069J 48655D 48655E 9538103025
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-20220

CT190,ST190,191

ｱﾘ(ABS)

 1
43211-20221

CT190,ST190,191

ｱﾘ(ABS)

 1
43211-20210

CT190,196,ET196,ST190,191

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15001

AT191,CT19#,ET196,ST19#

外径=15.0

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90179-15001

AT191,CT19#,ET196,ST19#

 2
43212 - KNUCKLE, STEERING, LH
43212-20170

CT190,196,ET196,ST190,191

 1
43212-20180

CT190,ST190,191

ｱﾘ(ABS)

 1
43212-20181

CT190,ST190,191

ｱﾘ(ABS)

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-15001

AT191,CT19#,ET196,ST19#

外径=15.0

 2
43212E - NUT (FOR STEERING KNUCKLE LH)
90179-15001

AT191,CT19#,ET196,ST19#

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-29265

CT19#,ET196,ST19#

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

AT191,CT19#,ET196,ST19#

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-12122

AT191,CT19#,ET196,ST19#

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90179-12052

AT191,CT19#,ET196,ST19#

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-29265

CT19#,ET196,ST19#

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

AT191,CT19#,ET196,ST19#

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-12122

AT191,CT19#,ET196,ST19#

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90179-12052

AT191,CT19#,ET196,ST19#

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-20260

CT190,196,ET196,ST190,191

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14046

AT191,CT19#,ET196,ST19#

ARM NO.2

 1
90119-14023

AT191,CT19#,ET196,ST19#

ARM NO.1

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90119-14046

AT191,CT19#,ET196,ST19#

ARM NO.2

 1
90119-14023

AT191,CT19#,ET196,ST19#

ARM NO.1

 1
48068N - COLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90389-19002

AT191,CT190,196,197,ET196,ST190,191

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-20260

CT190,196,ET196,ST190,191

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-14023

AT191,CT19#,ET196,ST19#

ARM NO.1

 1
90119-14046

AT191,CT19#,ET196,ST19#

ARM NO.2

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90119-14023

AT191,CT19#,ET196,ST19#

ARM NO.1

 1
90119-14046

AT191,CT19#,ET196,ST19#

ARM NO.2

 1
48069J - COLLAR(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90389-19002

AT191,CT190,196,197,ET196,ST190,191

 1
48655D - BUSH, FRONT LOWER ARM, NO.2 RH
48655-20140

CT190,196,ET196,ST190,191

 1
48655E - BUSH, FRONT LOWER ARM, NO.2 LH
48655-20140

CT190,196,ET196,ST190,191

 1
Common parts
95381-03025
