CT190G-DWMMS (1992)

Toyota Caldina

Production Nov 1992 - Jan 1996
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9211-9601)2C..CT190,196

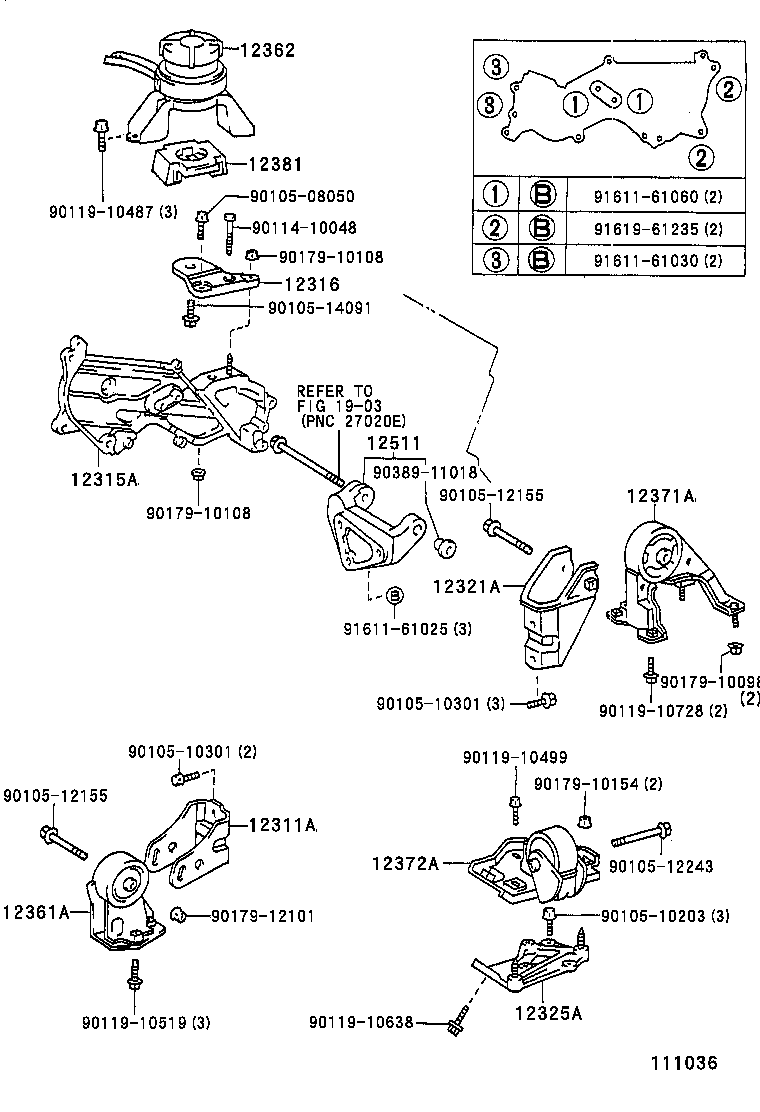

Click highlighted areas on diagram

diagram 12311A 12315A 12316 12321A 12325A 12361A 12362 12371A 12372A 12381 12511 1903 9010508050 9010510203 9010510301 9010510301 9010512155 9010512155 9010512243 9010514091 9011410048 9011910487 9011910499 9011910519 9011910638 9011910728 9017910098 9017910108 9017910108 9017910154 9017912101 9038911018 9161161025 9161161030 9161161060 9161961235
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-64150

2C..CT190,196

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-64080

2C..CT190,196

 1
12316 - BRACKET, ENGINE MOUNTING, NO.2 RH
12316-64040

2C..CT190,196

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-64230

2C..CT190,196..5F

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-64060

2C..CT190,196..5F

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-64250

2C..CT190,196

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-64190

2C..CT190,196

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-64240

2C..CT190,196

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-74350

2C..CT190,196..5F

 1
12372-74351

2C..CT190,196..5F

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-74010

2C..CT19#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-64060

2C#..CT19#

 1
Common parts
90105-08050
90105-10203
90105-10301
90105-12155
90105-12243
90105-14091
90114-10048
90119-10487
90119-10499
90119-10519
90119-10638
90119-10728
90179-10098
90179-10108
90179-10154
90179-12101
90389-11018
91611-61025
91611-61030
91611-61060
91619-61235
Linked diagrams
1903
