CT190G-DWMEX (1996)

Toyota Caldina

Production Jan 1996 - Aug 1997
Engine 2CT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601-9708)2CT

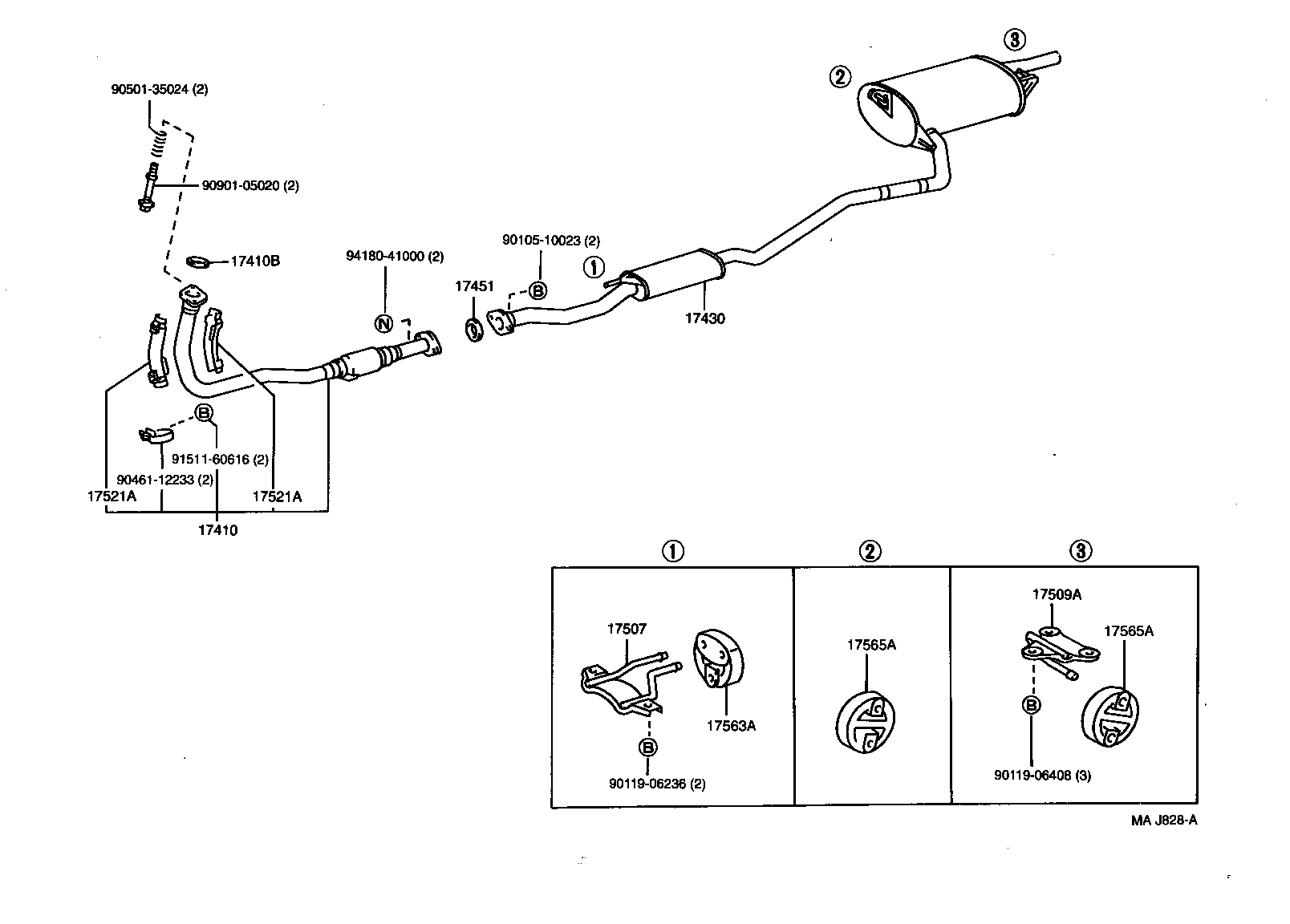

Click highlighted areas on diagram

diagram 17410 17410B 17430 17451 17507 17509A 17521A 17521A 17563A 17565A 17565A 9010510023 9011906236 9011906408 9046112233 9050135024 9090105020 9151160616 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-64571

2C..CT190

 1
17410-64670

2CT..CT190

 1
17410B - GASKET, EXHAUST PIPE
17451-64020

2CT..CT190

 1
90917-06061

2C,5EFE..CT19#,ET196

 1
17451-64010

2CT,3CE..CT190,199

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-64750

2C..CT190

 1
17430-6A130

2CT..CT190

 1
17451 - GASKET, EXHAUST PIPE
90917-06048

2C#,3CE..CT190,196,198,199

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-64040

2C..CT190

 1
17507-64080

2CT..CT190

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-16060

7AFE,2CT,3S#..AT191,CT190,ST19#

 1
17509-74110

2C,3S#,4SFE..CT190,ST19#

 1
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-64150

2CT..CT190

 2
17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1
17521-64150

2CT..CT190

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-64180

2CT..CT190

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-16270

7AFE,2CT,3SFE..AT191,CT190,ST191

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-16270

7AFE,2CT,3SFE..AT191,CT190,ST191

 2
Common parts
90105-10023
90119-06236
90119-06408
90461-12233
90501-35024
90901-05020
91511-60616
94180-41000
