CT190G-DWMES (1992)
Toyota Caldina
Production
Nov 1992
-
Jan 1996
Engine
2C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9211- )CT190,196,198

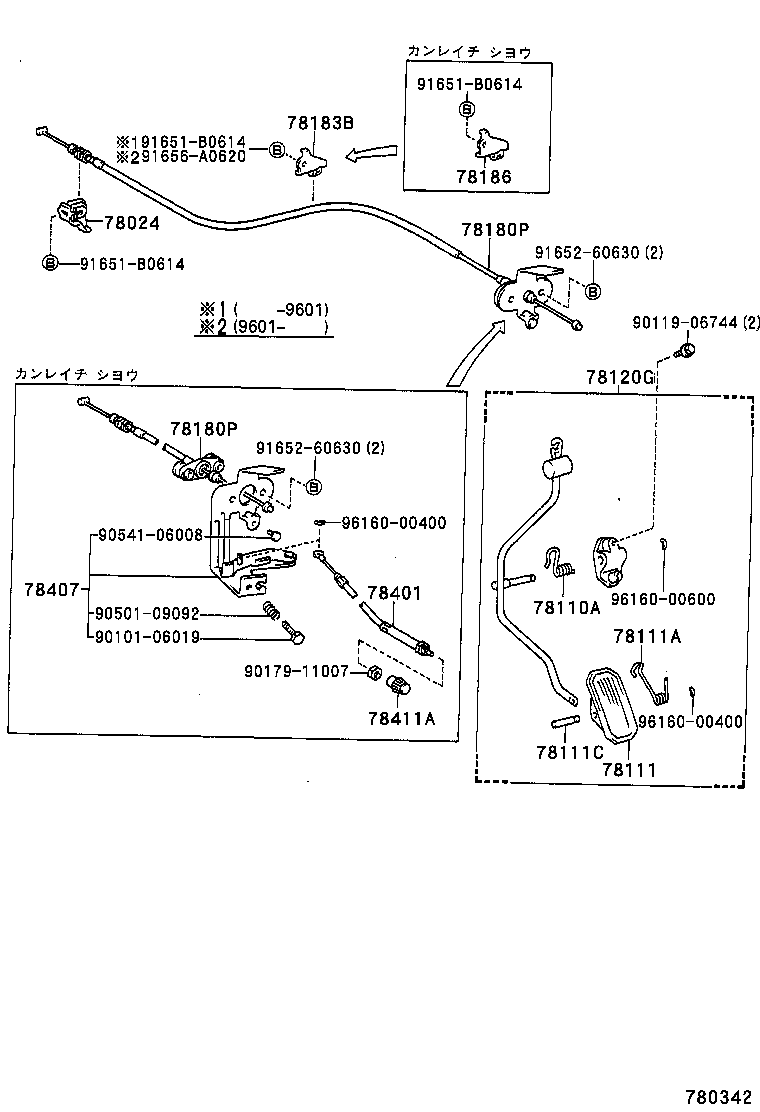

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-32140 |
CT19# |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26054 |
CT19#,ST190,195..5F |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-20050 |
CT19#..5F |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18050 |
CT19#,ET196,ST19# |
1 | ||
| 90508-18050 |
CT19#,ET196,ST19# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
CT19#,ET196,ST19# |
1 | ||
| 90249-05001 |
CT19#,ET196,ST19# |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-20580 |
CT19#..5F |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-2B870 |
CT190,196..5F ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78180-2D150 |
CT190,196..5F |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-2B870 |
CT190,196..5F ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78180-2D150 |
CT190,196..5F |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-20170 |
CT197..4FC;AT191,CT190,196,198,ET196,ST19# |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78183-20170 |
CT190,196..5F ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78401 - CABLE SUB-ASSY, THROTTLE CONTROL | ||||
| 78401-20050 |
CT19#..5F ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78407 - ARM SUB-ASSY, THROTTLE CONTROL | ||||
| 78407-20050 |
CT19#..5F ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-22010 |
CT19#..5F ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 90101-06019 | ||||
| 90119-06744 | ||||
| 90179-11007 | ||||
| 90501-09092 | ||||
| 90541-06008 | ||||
| 91651-B0614 | ||||
| 91652-60630 | ||||
| 91656-A0620 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
