CT190G-DWMES (1992)

Toyota Caldina

Production Nov 1992 - Jan 1996
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

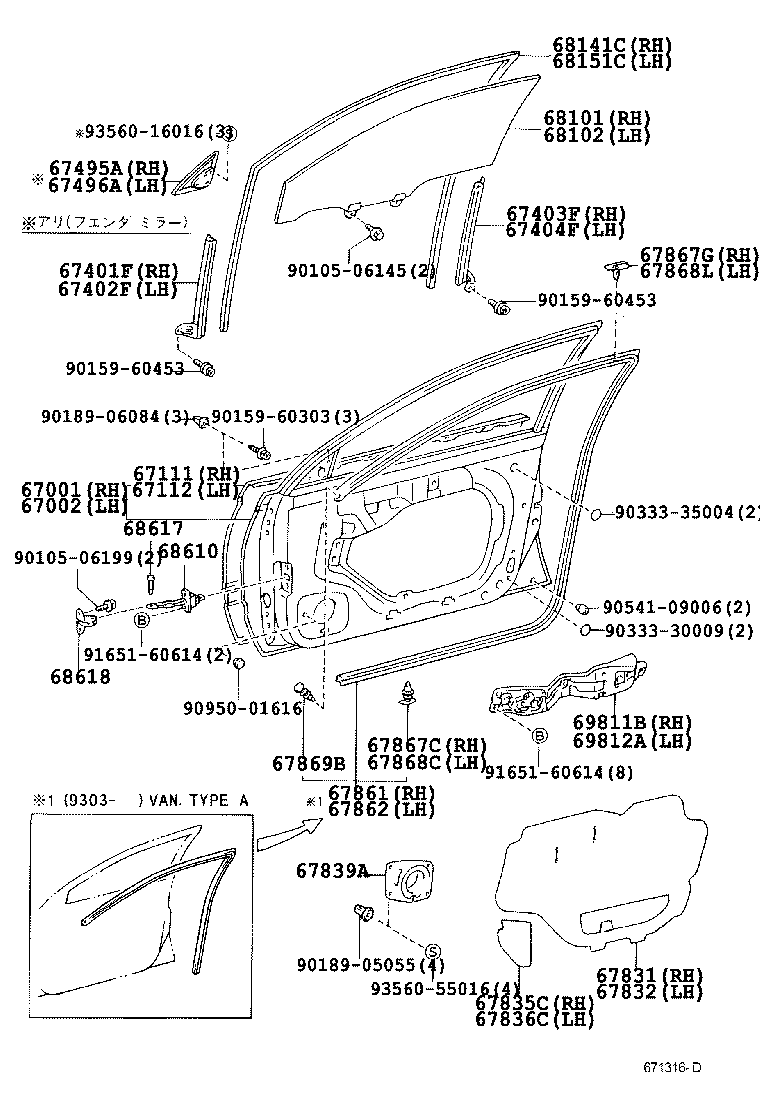

ILLUST NO. 2 OF 2(9211- )

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67401F 67402F 67403F 67404F 67495A 67496A 67831 67832 67835C 67836C 67839A 67861 67862 67867C 67867G 67868C 67868L 67869B 68101 68102 68141C 68151C 68610 68617 68618 69811B 69812A 9010506145 9010506199 9015960303 9015960453 9015960453 9018905055 9018906084 9033330009 9033335004 9054109006 9095001616 9165160614 9165160614 9356016016 9356055016
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-20880

CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
67001-20882

CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-20840

CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
67002-20842

CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-20320

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-20340

AT191,CT19#,ET196,ST19#..CZ,FZ,TZ,TZG,UL,UX

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-20220

AT191,CT19#,ET196,ST19#

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-20210

AT191,CT19#,ET196,ST19#

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-20110

AT191,CT19#,ET196,ST19#

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-20090

AT191,CT19#,ET196,ST19#

 1
67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67495-20110

CT19#,ET196,ST19#

 1
67495-20110

CT19#,ET196,ST19#

 1
67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67496-20080

CT19#,ET196,ST19#

 1
67496-20080

CT19#,ET196,ST19#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67801-20040

CT190,ST19#..CZ,TZ

 1
67801-20050

AT191,CT19#,ET196,ST19#

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67802-20030

CT190,ST19#..CZ,TZ

 1
67802-20040

AT191,CT19#,ET196,ST19#

 1
67835C - COVER, FRONT DOOR SERVICE HOLE, NO.3 RH
67835-20070

AT191,CT19#,ET196,ST19#

 1
67836C - COVER, FRONT DOOR SERVICE HOLE, NO.3 LH
67836-20100

AT191,CT19#,ET196,ST19#

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-20350

CT19#,ET196,ST19#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-20350

CT19#,ET196,ST19#

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67868-20040

CT190,ST19#

 11
67868-20040

CT19#,ET196,ST19#

 11
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67877-20030

CT19#,ET196,ST19#

 1
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67868-20040

CT19#,ET196,ST19#

 11
67868-20040

CT190,ST19#

 11
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67877-20030

CT19#,ET196,ST19#

 1
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-12020

AT191,CT19#,ET196,ST19#

 2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-20100

CT190,ST19#

*TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-20100

CT190,ST19#

*TEM,厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
68141C - RUN, FRONT DOOR GLASS, RH
68141-20240

AT191,CT19#,ET196,ST19#

 1
68151C - RUN, FRONT DOOR GLASS, LH
68151-20070

AT191,CT19#,ET196,ST19#

 1
68610 - CHECK ASSY, FRONT DOOR
68610-20110

CT19#,ET196,ST19#

 2
68610-20150

CT19#,ET196,ST19#

 2
68610-20151

AT191,CT19#,ET196,ST19#

 2
68617 - PIN, FRONT DOOR CHECK
68617-20030

CT19#,ET196,ST19#

 2
68617-20011

CT19#,ET196,ST19#

 2
68618 - BRACKET, FRONT DOOR CHECK ARM, RH
68618-20010

AT191,CT19#,ET196,ST19#

 2
69811B - PLATE, FRONT DOOR WINDOW REGULATOR BASE, RH
69811-20090

CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
69812A - PLATE, FRONT DOOR WINDOW REGULATOR BASE, RH
69812-20060

CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
Common parts
90105-06145
90105-06199
90159-60303
90159-60453
90189-05055
90189-06084
90333-30009
90333-35004
90541-09006
90950-01616
91651-60614
93560-16016
93560-55016

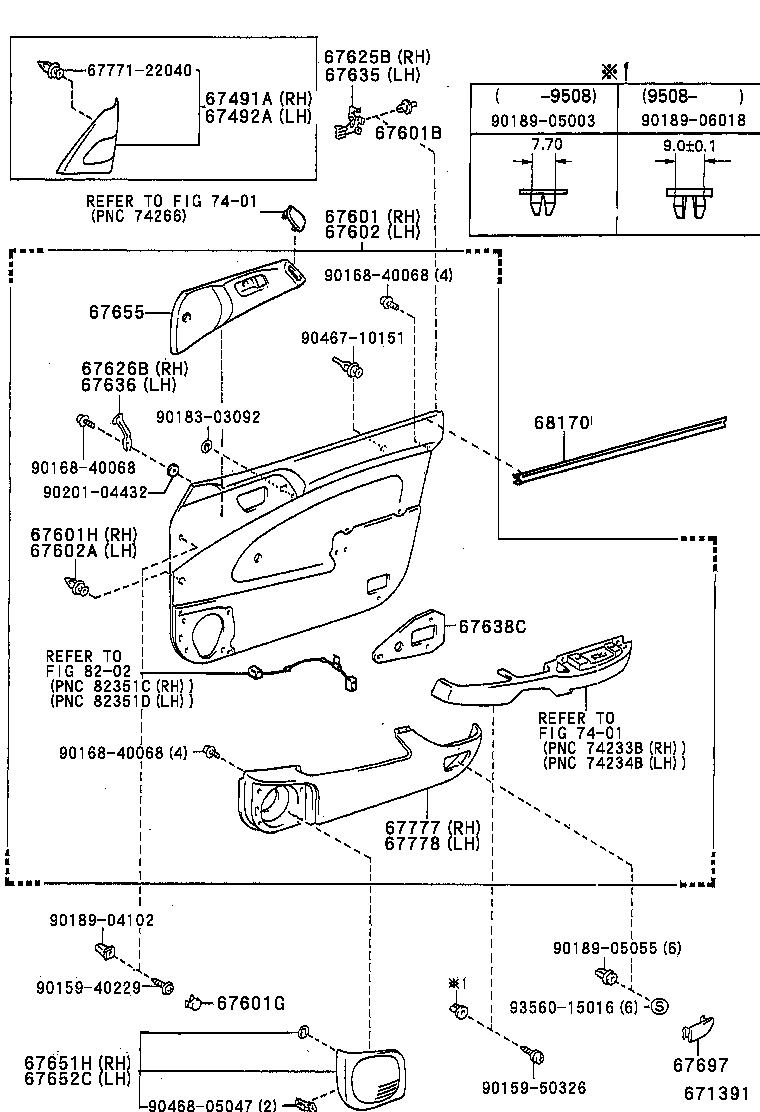

ILLUST NO. 1 OF 2(9211-9601)CZ,FZ,TZ,TZG,UX

Click highlighted areas on diagram

diagram 67491A 67492A 67601 67601B 67601G 67601H 67602 67602A 67625B 67626B 67635 67636 67638C 67651H 67652C 67655 67697 6777122040 67777 67778 68170 7401 7401 8202 9015940229 9015950326 9016840068 9016840068 9016840068 9018303092 9018904102 9018905003 9018905055 9018906018 9020104432 9046710151 9356015016
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-20270C0

CT190,ST19#..CZ,TZ

ｱﾘ(ﾂｲ-ﾀ),BLACK,TRIM2#

 1
67491-20250

CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
67491-20270C0

CT190,ST19#..CZ,TZ,TZG

ｱﾘ(ﾂｲ-ﾀ),BLACK,TRIM1#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-20290C0

CT190,ST19#..CZ,TZ,TZG

ｱﾘ(ﾂｲ-ﾀ),BLACK,TRIM1#

 1
67492-20290C0

CT190,ST19#..CZ,TZ

ｱﾘ(ﾂｲ-ﾀ),BLACK,TRIM2#

 1
67492-20270

CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-21020C1

CT190,ST19#..CZ,TZ

BLACK,TRIM2#

 1
67610-21020B1

CT190,ST19#..CZ,TZ

SHADOW GRAY,TRIM1#

 1
67610-21020B0

CT190,ST19#..CZ,TZ

SHADOW GRAY,TRIM1#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-0707122

CT190,196,ET196,ST19#..CZ,FZ,TZ,UX

BLACK,TRIM2#

 4
90467-0707122

CT190,196,ET196,ST19#..CZ,FZ,TZ,UX

BLACK,TRIM1#

 4
90467-0707122

CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX

BLACK,TRIM1#

 4
67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
90950-01503C0

CT190,196,ET196,ST19#..CZ,FZ,TZ,UX

BLACK,TRIM2#

 2
90950-01503P0

CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX

SHADOW GRAY,TRIM1#

 2
67601H - RETAINER, DOOR TRIM, RH
67771-20110

CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX

 5
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-21010B0

CT190,ST19#..CZ,TZ

SHADOW GRAY,TRIM1#

 1
67620-21010C1

CT190,ST19#..CZ,TZ

BLACK,TRIM2#

 1
67620-21010B1

CT190,ST19#..CZ,TZ

SHADOW GRAY,TRIM1#

 1
67602A - RETAINER, DOOR TRIM, LH
67771-20110

CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX

 5
67625B - BRACKET, DOOR TRIM, NO.1 RH
67625-20100

CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
67625-20100

CT190,196,ET196,ST19#..CZ,FZ,TZ,UX

 1
67626B - BRACKET, DOOR TRIM, NO.2 RH
67626-20070

AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
67635 - BRACKET, DOOR TRIM, NO.1 LH
67635-20040

CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
67635-20040

CT190,196,ET196,ST19#..CZ,FZ,TZ,UX

 1
67636 - BRACKET, DOOR TRIM, NO.2 LH
67636-20020

AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX

 1
67638C - PLATE, FRONT DOOR TRIM, NO.2 RH
67638-20060

CT190,196,ET196,ST19#..CZ,FZ,TZ,UX

 1
67651H - GRILLE, SPEAKER DOOR, RH
67651-21010C0

CT19#,ET196,ST19#

BLACK,TRIM2#

 1
67651-21010B0

AT191,CT19#,ET196,ST19#

SHADOW GRAY,TRIM1#

 1
67651-20060C1

CT19#,ET196,ST19#

BLACK,TRIM2#

 1
67652C - GRILLE, SPEAKER DOOR, LH
67652-21020B0

AT191,CT190,196,197,ET196,ST19#..CZ,FZ,TZ,TZG,UX

SHADOW GRAY,TRIM1#

 1
67652-20050C1

CT190,196,ET196,ST19#..CZ,FZ,TZ,UX

BLACK,TRIM2#

 1
67652-21020C0

CT190,196,ET196,ST19#..CZ,FZ,TZ,UX

BLACK,TRIM2#

 1
67655 - GARNISH, FRONT DOOR TRIM, RH
67655-20040B0

CT190,196,ET196,ST19#..CZ,FZ,TZ,UX

SHADOW GRAY,TRIM1#

 1
67655-20040C0

CT190,196,ET196,ST19#..CZ,FZ,TZ,UX

BLACK,TRIM2#

 1
67655-20040B0

CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX

SHADOW GRAY,TRIM1#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-20190C0

CT190,196,ET196,ST19#..CZ,FZ,TZ,UX

BLACK,TRIM2#

 1
67777-20190B1

CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX

SHADOW GRAY,TRIM1#

 1
67778 - POCKET, FRONT DOOR TRIM, LH
67778-20120B1

CT190,196,ET196,ST19#..CZ,FZ,TZ,UX

SHADOW GRAY,TRIM1#

 1
67778-20120C0

CT190,196,ET196,ST19#..CZ,FZ,TZ,UX

BLACK,TRIM2#

 1
67778-20120B1

CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX

SHADOW GRAY,TRIM1#

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-20060

AT191,CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX

右側

 1
68172-20050

AT191,CT190,196,ET196,ST19#..CZ,FZ,TZ,TZG,UX

左側

 1
Common parts
67771-22040
90159-40229
90159-50326
90168-40068
90183-03092
90189-04102
90189-05003
90189-05055
90189-06018
90201-04432
90467-10151
93560-15016
Linked diagrams
7401
8202
