AZT246W-DWPVH (2002)

Toyota Caldina

Production Sep 2002 - Jan 2005
Engine 1AZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )

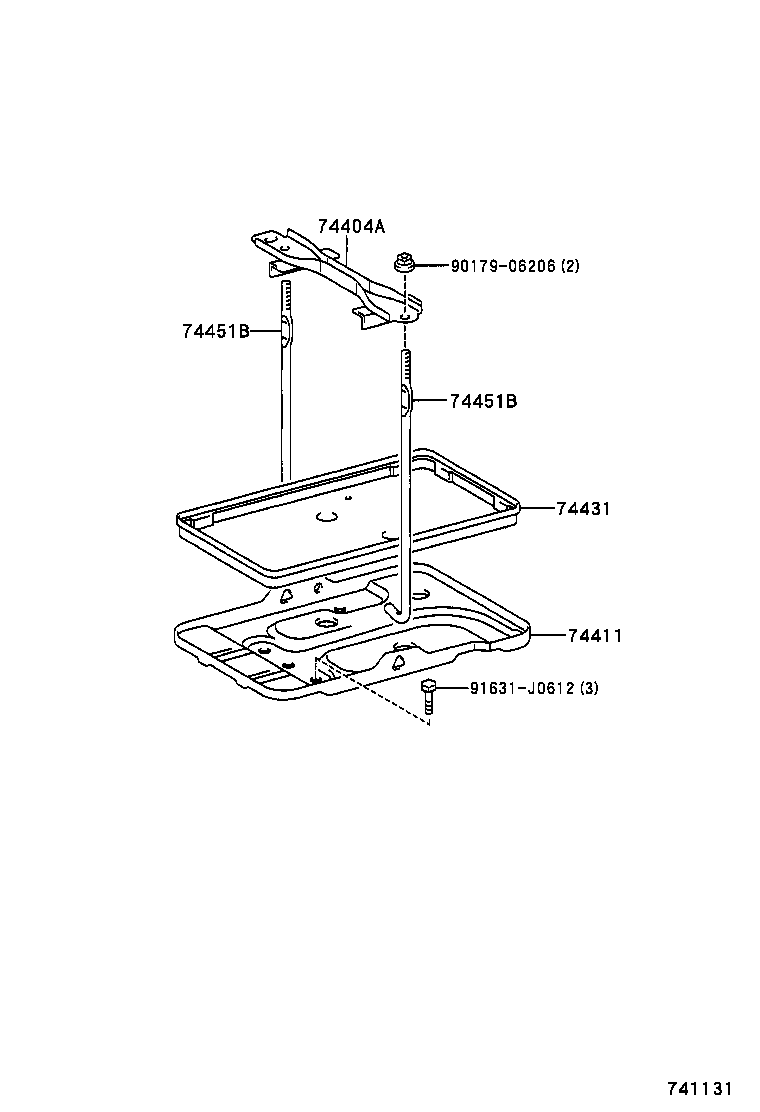

Click highlighted areas on diagram

diagram 74404A 74411 74431 74451B 74451B 9017906206 91631J0612
Part # Description Qty Price
74404A - CLAMP SUB-ASSY, BATTERY
74404-63010

AZT24#,ST246,ZZT241

 1
74411 - CARRIER, BATTERY
74411-63020

AZT24#,ST246,ZZT241

 1
74431 - TRAY, BATTERY
74431-20111

AZT24#,ST246,ZZT241

 1
74431-20110

AZT24#,ST246,ZZT241

 1
74451B - BOLT, BATTERY CLAMP
74451-20060

AZT24#,ST246,ZZT241

 2
74451B - BOLT, BATTERY CLAMP
74451-20060

AZT24#,ST246,ZZT241

 2
Common parts
90179-06206
91631-J0612
