AZT246W-DWPVH (2002)

Toyota Caldina

Production Sep 2002 - Jan 2005
Engine 1AZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )

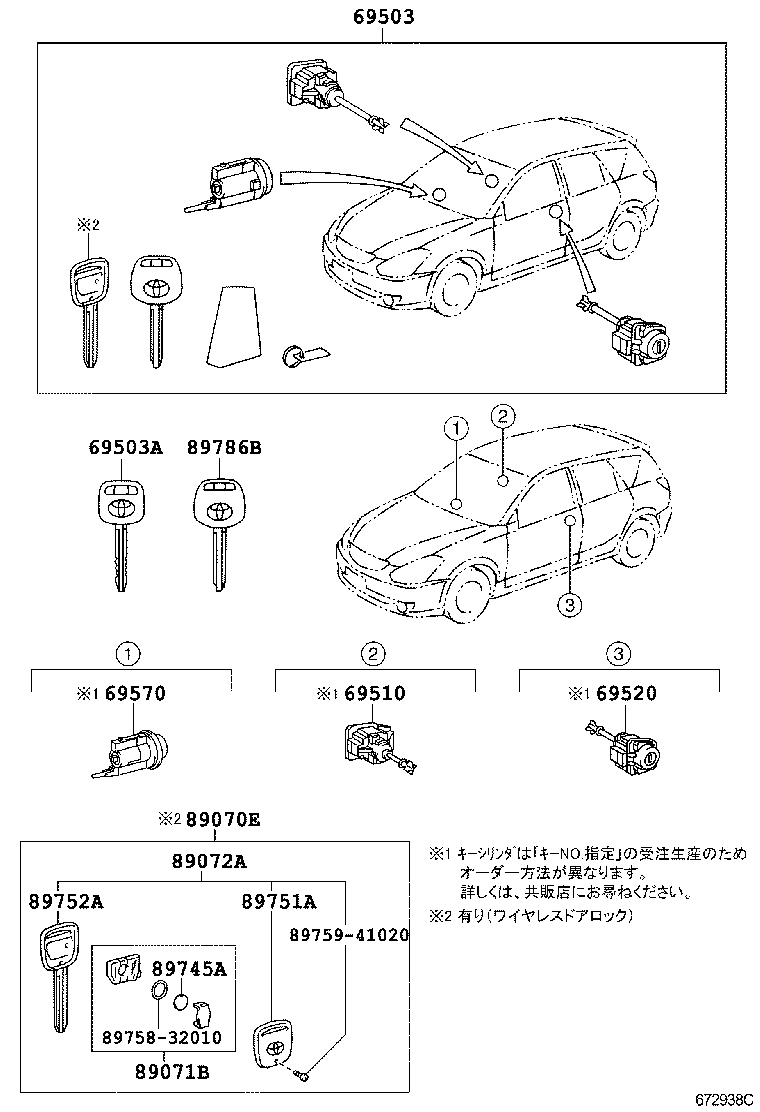

Click highlighted areas on diagram

diagram 69503 69503A 69510 69520 69570 89070E 89071B 89072A 89745A 89751A 89752A 8975832010 8975941020 89786B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-21180

AZT24#,ZZT241

 1
69503A - KEY, BLANK
90999-00199

AZT24#,ZZT241

ﾏｽﾀｰｷｰ,*68付き

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-52100

AZT24#,ST246,ZZT241

 1
69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH
69520-52100

AZT24#,ST246,ZZT241

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-13120

AZT24#,ST246,ZZT241

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-32080

AZT24#,ZZT241

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-32030

AZT24#,ZZT241

 1
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-47020

AZT24#,ST246,ZZT241

 1
89745A - BATTERY, TRANSMITTER
89745-41010

AZT24#,ST246,ZZT241

 2
89751A - COVER, TRANSMITTER HOUSING
89751-44010

AZT24#,ST246,ZZT241

 2
89752A - CASE, TRANSMITTER HOUSING
89752-46020

AZT24#,ST246,ZZT241

 1
Common parts
89758-32010
89759-41020
