AZT246W-DWPVH (2002)
Toyota Caldina

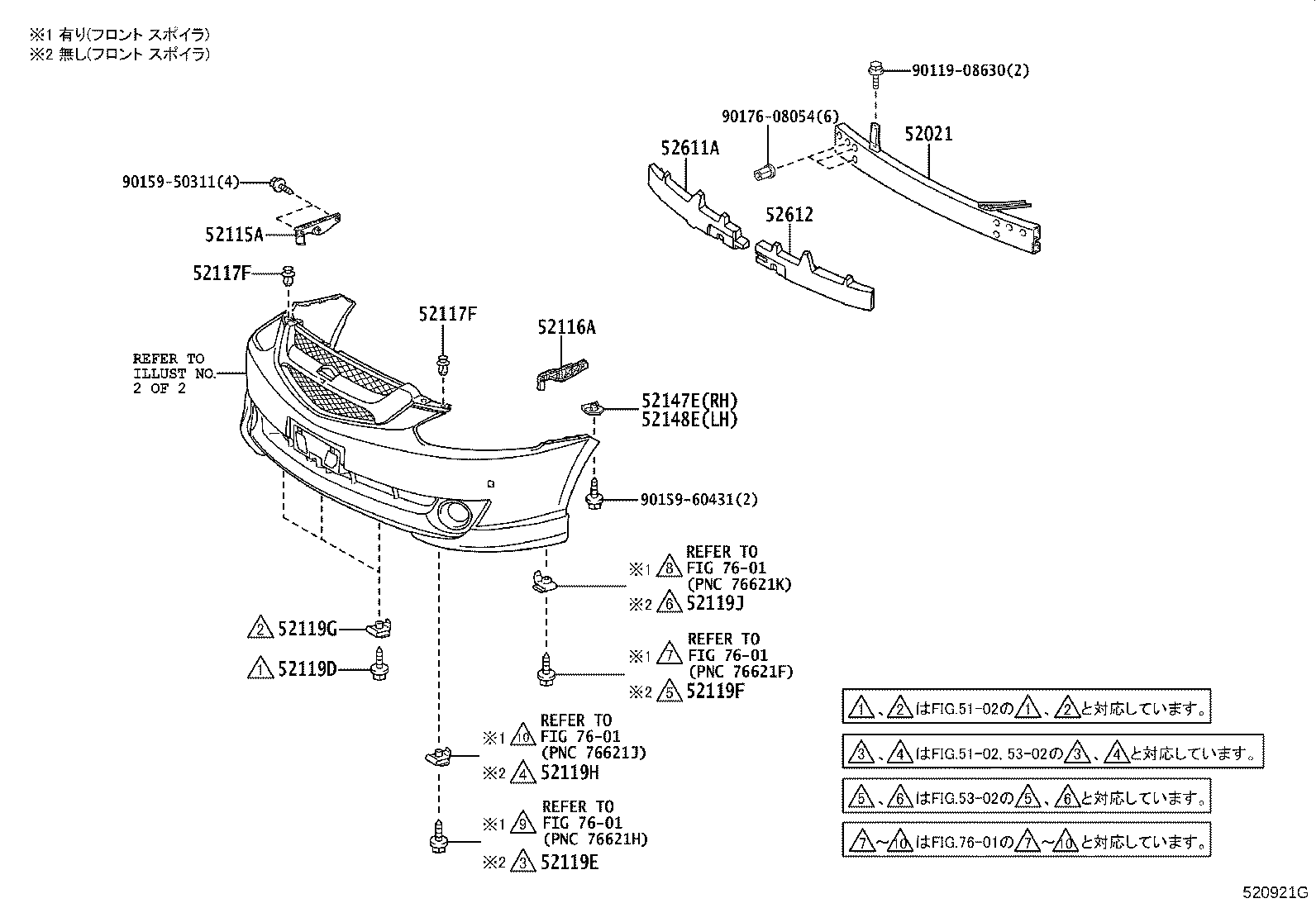

ILLUST NO. 1 OF 2(0209-0501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-20270 |
AZT24#,ST246,ZZT241 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-21010 |
AZT24#,ST246,ZZT241 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-21010 |
AZT24#,ST246,ZZT241 |
1 | ||
| 52117F - SUPPORT, FRONT BUMPER, UPPER | ||||
| 52117-21020 |
AZT24#,ST246,ZZT241 |
2 | ||
| 52117F - SUPPORT, FRONT BUMPER, UPPER | ||||
| 52117-21020 |
AZT24#,ST246,ZZT241 |
2 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60215 |
AZT24#,ST246,ZZT241 |
3 | ||
| 52119E - SCREW, NO.2 | ||||
| 90159-60215 |
AZT24#,ZZT241..X,Z |
2 | ||
| 90159-60215 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
2 | ||
| 90159-60215 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し |
2 | ||
| 52119F - SCREW, NO.3 | ||||
| 90159-60215 |
AZT24#,ZZT241..X,Z |
2 | ||
| 90159-60215 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
2 | ||
| 90159-60215 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し |
2 | ||
| 52119G - CLIP, NO.1 | ||||
| 90467-05138 |
AZT24#,ST246,ZZT241 |
3 | ||
| 52119H - CLIP, NO.2 | ||||
| 90467-05138 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し |
2 | ||
| 90467-05138 |
AZT24#,ZZT241..X,Z |
2 | ||
| 90467-05138 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
2 | ||
| 52119J - CLIP, NO.3 | ||||
| 90467-05138 |
AZT24#,ZZT241..X,Z |
2 | ||
| 90467-05138 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り |
2 | ||
| 90467-05138 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し |
2 | ||
| 52147E - BRACKET, FRONT BUMPER MOUNTING, RH | ||||
| 52147-21010 |
AZT24#,ST246,ZZT241 |
1 | ||
| 52148E - BRACKET, FRONT BUMPER MOUNTING, LH | ||||
| 52147-21010 |
AZT24#,ST246,ZZT241 |
1 | ||
| 52611A - ABSORBER, FRONT BUMPER ENERGY, RH | ||||
| 52611-21010 |
AZT24#,ST246,ZZT241 |
1 | ||
| 52612 - ABSORBER, FRONT BUMPER ENERGY, LH | ||||
| 52612-21010 |
AZT24#,ST246,ZZT241 |
1 | ||
| Common parts | ||||
| 90119-08630 | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90176-08054 | ||||
| Linked diagrams | ||||
| 7601 | ||||

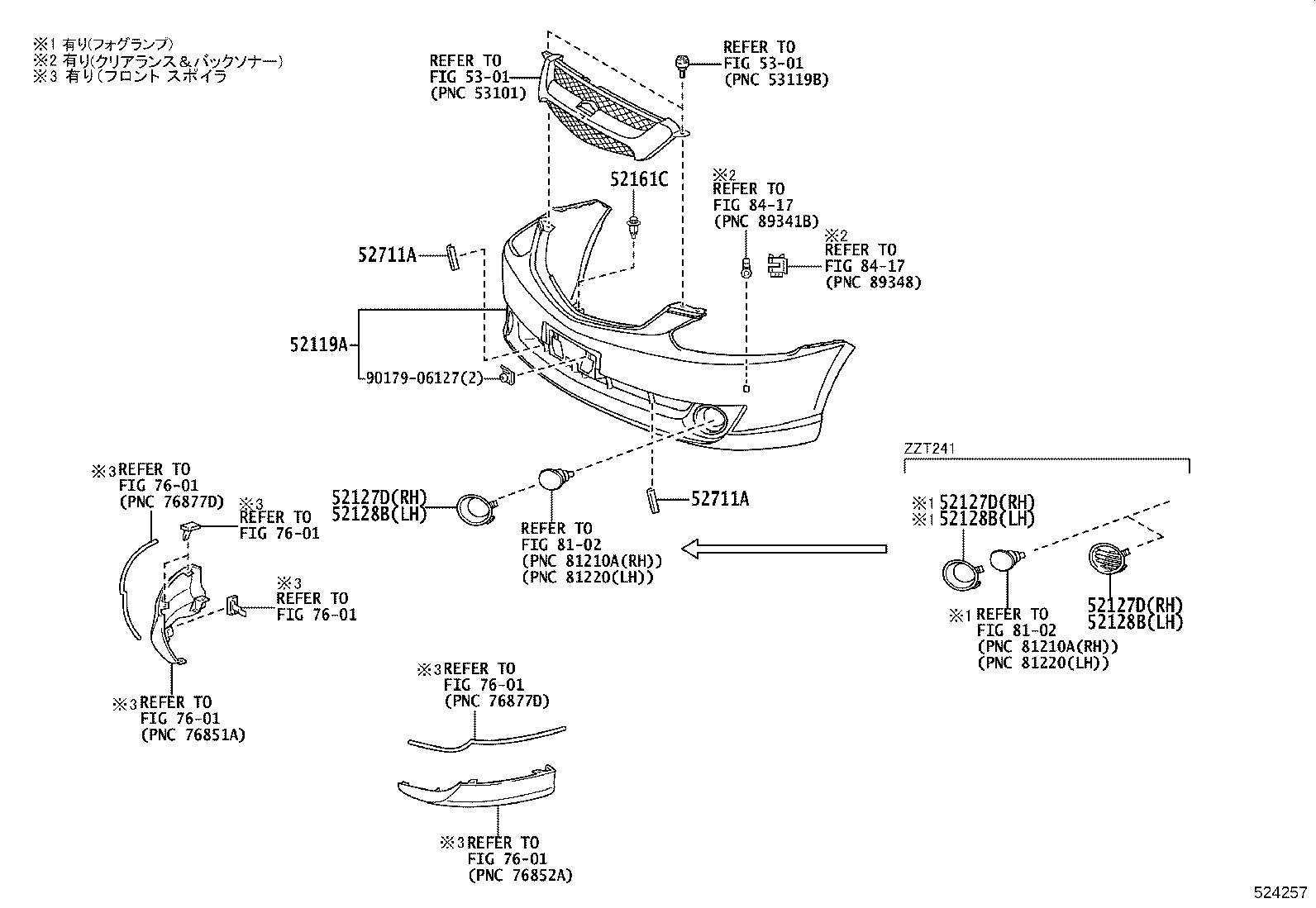

ILLUST NO. 2 OF 2(0209-0501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-21110A0 |
AZT24#,ZZT241..X,Z SUPER WHITE 2,040 |
1 | ||
| 52119-21110B1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,DK.GRAY M.M.,1E9 |
1 | ||
| 52119-21110B1 |
AZT24#,ZZT241..X,Z DK.GRAY M.M.,1E9 |
1 | ||
| 52119-21110B0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,SILVER M.M.,1E7 |
1 | ||
| 52119-21110J0 |
AZT24#,ZZT241..X,Z BLUE M.M.,8Q1 |
1 | ||
| 52119-21110A0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,SUPER WHITE 2,040 |
1 | ||
| 52119-21110J0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,BLUE M.M.,8Q1 |
1 | ||
| 52119-21120A0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,SUPER WHITE 2,040 |
1 | ||
| 52119-21120B0 |
AZT24#,ST246..GT4,ZT SILVER M.M.,1E7 |
1 | ||
| 52119-21110C0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,BLACK MC.,209 |
1 | ||
| 52119-21110C0 |
AZT24#,ZZT241..X,Z BLACK MC.,209 |
1 | ||
| 52119-21120B0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,SILVER M.M.,1E7 |
1 | ||
| 52119-21110E0 |
AZT24#,ZZT241..X,Z ORANGE ME.,4R1 |
1 | ||
| 52119-21120B1 |
AZT24#,ST246..GT4,ZT DK.GRAY M.M.,1E9 |
1 | ||
| 52119-21120E0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,ORANGE ME.,4R1 |
1 | ||
| 52119-21130A0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040 |
1 | ||
| 52119-21120E0 |
AZT24#,ST246..GT4,ZT ORANGE ME.,4R1 |
1 | ||
| 52119-21120B1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,DK.GRAY M.M.,1E9 |
1 | ||
| 52119-21120J0 |
AZT24#,ST246..GT4,ZT BLUE M.M.,8Q1 |
1 | ||
| 52119-21110B0 |
AZT24#,ZZT241..X,Z SILVER M.M.,1E7 |
1 | ||
| 52119-21110E0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,ORANGE ME.,4R1 |
1 | ||
| 52119-21130A0 |
AZT24#..Z ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040 |
1 | ||
| 52119-21120A0 |
AZT24#,ST246..GT4,ZT SUPER WHITE 2,040 |
1 | ||
| 52119-21120C0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,BLACK MC.,209 |
1 | ||
| 52119-21120J0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,BLUE M.M.,8Q1 |
1 | ||
| 52119-21120C0 |
AZT24#,ST246..GT4,ZT BLACK MC.,209 |
1 | ||
| 52119-21130B0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1E7 |
1 | ||
| 52119-21130B1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.GRAY M.M.,1E9 |
1 | ||
| 52119-21130C0 |
AZT24#..Z ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK MC.,209 |
1 | ||
| 52119-21130B1 |
AZT24#..Z ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.GRAY M.M.,1E9 |
1 | ||
| 52119-21130B0 |
AZT24#..Z ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1E7 |
1 | ||
| 52119-21130E0 |
AZT24#..Z ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ORANGE ME.,4R1 |
1 | ||
| 52119-21140A0 |
AZT24#,ST246..GT4,ZT ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040 |
1 | ||
| 52119-21140B0 |
AZT24#..Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1E7 |
1 | ||
| 52119-21130E0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ORANGE ME.,4R1 |
1 | ||
| 52119-21130J0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE M.M.,8Q1 |
1 | ||
| 52119-21140B1 |
AZT24#..Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.GRAY M.M.,1E9 |
1 | ||
| 52119-21140C0 |
AZT24#..Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK MC.,209 |
1 | ||
| 52119-21110A1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,WHITE PEARL CS.,070 |
1 | ||
| 52119-21140B1 |
AZT24#,ST246..GT4,ZT ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,DK.GRAY M.M.,1E9 |
1 | ||
| 52119-21140E0 |
AZT24#..Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ORANGE ME.,4R1 |
1 | ||
| 52119-21130J0 |
AZT24#..Z ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE M.M.,8Q1 |
1 | ||
| 52119-21140J0 |
AZT24#,ST246..GT4,ZT ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE M.M.,8Q1 |
1 | ||
| 52119-21110A1 |
AZT24#,ZZT241..X,Z WHITE PEARL CS.,070 |
1 | ||
| 52119-21120A1 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119-21140E0 |
AZT24#,ST246..GT4,ZT ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,ORANGE ME.,4R1 |
1 | ||
| 52119-21130C0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK MC.,209 |
1 | ||
| 52119-21120A1 |
AZT24#,ST246..GT4,ZT WHITE PEARL CS.,070 |
1 | ||
| 52119-21140B0 |
AZT24#,ST246..GT4,ZT ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SILVER M.M.,1E7 |
1 | ||
| 52119-21140C0 |
AZT24#,ST246..GT4,ZT ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLACK MC.,209 |
1 | ||
| 52119-21140J0 |
AZT24#..Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,BLUE M.M.,8Q1 |
1 | ||
| 52119-21130A1 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119-21140A0 |
AZT24#..Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER WHITE 2,040 |
1 | ||
| 52119-21130A1 |
AZT24#..Z ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119-21130D0 |
AZT24#..Z ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER RED 5,3P0 |
1 | ||
| 52119-21140A1 |
AZT24#,ST246..GT4,ZT ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119-21120D0 |
AZT24#,ST246..GT4,ZT SUPER RED 5,3P0 |
1 | ||
| 52119-21140A1 |
AZT24#..Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119-21110D0 |
AZT24#,ZZT241..X,Z SUPER RED 5,3P0 |
1 | ||
| 52119-21130D0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER RED 5,3P0 |
1 | ||
| 52119-21140D0 |
AZT24#,ST246..GT4,ZT ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER RED 5,3P0 |
1 | ||
| 52119-21110D0 |
AZT24#,ST246..GT4,ZT ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−無し,SUPER RED 5,3P0 |
1 | ||
| 52119-21120D0 |
AZT24#,ZZT241..X,Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り,SUPER RED 5,3P0 |
1 | ||
| 52119-21140D0 |
AZT24#..Z ｻｲﾄﾞﾏｯﾄﾞｶﾞｰﾄﾞ & ﾊﾞﾝﾊﾟ ｽﾎﾟｲﾗ(FR & RR)−有り&ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ−有り,SUPER RED 5,3P0 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-21020A0 |
AZT24#,ST246 SUPER WHITE 2,040 |
1 | ||
| 52127-21020C0 |
AZT24#,ST246 BLACK MC.,209 |
1 | ||
| 52127-21020J0 |
AZT24#,ST246 BLUE M.M.,8Q1 |
1 | ||
| 52127-21020B1 |
AZT24#,ST246 DK.GRAY M.M.,1E9 |
1 | ||
| 52127-21020A1 |
AZT24#,ST246 WHITE PEARL CS.,070 |
1 | ||
| 52127-21020E0 |
AZT24#,ST246 ORANGE ME.,4R1 |
1 | ||
| 52127-21020B0 |
AZT24#,ST246 SILVER M.M.,1E7 |
1 | ||
| 52127-21020D0 |
AZT24#,ST246 SUPER RED 5,3P0 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-21020A0 |
AZT24#,ST246 SUPER WHITE 2,040 |
1 | ||
| 52127-21020C0 |
AZT24#,ST246 BLACK MC.,209 |
1 | ||
| 52127-21020J0 |
AZT24#,ST246 BLUE M.M.,8Q1 |
1 | ||
| 52127-21020B1 |
AZT24#,ST246 DK.GRAY M.M.,1E9 |
1 | ||
| 52127-21020A1 |
AZT24#,ST246 WHITE PEARL CS.,070 |
1 | ||
| 52127-21020E0 |
AZT24#,ST246 ORANGE ME.,4R1 |
1 | ||
| 52127-21020B0 |
AZT24#,ST246 SILVER M.M.,1E7 |
1 | ||
| 52127-21020D0 |
AZT24#,ST246 SUPER RED 5,3P0 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-21020A0 |
AZT24#,ST246 SUPER WHITE 2,040 |
1 | ||
| 52127-21020C0 |
AZT24#,ST246 BLACK MC.,209 |
1 | ||
| 52127-21020J0 |
AZT24#,ST246 BLUE M.M.,8Q1 |
1 | ||
| 52127-21020B1 |
AZT24#,ST246 DK.GRAY M.M.,1E9 |
1 | ||
| 52127-21020A1 |
AZT24#,ST246 WHITE PEARL CS.,070 |
1 | ||
| 52127-21020E0 |
AZT24#,ST246 ORANGE ME.,4R1 |
1 | ||
| 52127-21020B0 |
AZT24#,ST246 SILVER M.M.,1E7 |
1 | ||
| 52127-21020D0 |
AZT24#,ST246 SUPER RED 5,3P0 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-21020E0 |
AZT24#,ST246 ORANGE ME.,4R1 |
1 | ||
| 52128-21020B0 |
AZT24#,ST246 SILVER M.M.,1E7 |
1 | ||
| 52128-21020A0 |
AZT24#,ST246 SUPER WHITE 2,040 |
1 | ||
| 52128-21020C0 |
AZT24#,ST246 BLACK MC.,209 |
1 | ||
| 52128-21020B1 |
AZT24#,ST246 DK.GRAY M.M.,1E9 |
1 | ||
| 52128-21020A1 |
AZT24#,ST246 WHITE PEARL CS.,070 |
1 | ||
| 52128-21020D0 |
AZT24#,ST246 SUPER RED 5,3P0 |
1 | ||
| 52128-21020J0 |
AZT24#,ST246 BLUE M.M.,8Q1 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-21020E0 |
AZT24#,ST246 ORANGE ME.,4R1 |
1 | ||
| 52128-21020B0 |
AZT24#,ST246 SILVER M.M.,1E7 |
1 | ||
| 52128-21020A0 |
AZT24#,ST246 SUPER WHITE 2,040 |
1 | ||
| 52128-21020C0 |
AZT24#,ST246 BLACK MC.,209 |
1 | ||
| 52128-21020B1 |
AZT24#,ST246 DK.GRAY M.M.,1E9 |
1 | ||
| 52128-21020A1 |
AZT24#,ST246 WHITE PEARL CS.,070 |
1 | ||
| 52128-21020D0 |
AZT24#,ST246 SUPER RED 5,3P0 |
1 | ||
| 52128-21020J0 |
AZT24#,ST246 BLUE M.M.,8Q1 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-21020E0 |
AZT24#,ST246 ORANGE ME.,4R1 |
1 | ||
| 52128-21020B0 |
AZT24#,ST246 SILVER M.M.,1E7 |
1 | ||
| 52128-21020A0 |
AZT24#,ST246 SUPER WHITE 2,040 |
1 | ||
| 52128-21020C0 |
AZT24#,ST246 BLACK MC.,209 |
1 | ||
| 52128-21020B1 |
AZT24#,ST246 DK.GRAY M.M.,1E9 |
1 | ||
| 52128-21020A1 |
AZT24#,ST246 WHITE PEARL CS.,070 |
1 | ||
| 52128-21020D0 |
AZT24#,ST246 SUPER RED 5,3P0 |
1 | ||
| 52128-21020J0 |
AZT24#,ST246 BLUE M.M.,8Q1 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AZT24#,ST246,ZZT241 |
1 | ||
| 52711A - GARNISH, FRONT BUMPER | ||||
| 52711-21020 |
AZT24#,ST246,ZZT241 |
2 | ||
| 52711A - GARNISH, FRONT BUMPER | ||||
| 52711-21020 |
AZT24#,ST246,ZZT241 |
2 | ||
| Common parts | ||||
| 90179-06127 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 7601 | ||||
| 8102 | ||||
| 8417 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
