AZT246W-DWPVH (2002)
Toyota Caldina
Production
Sep 2002
-
Jan 2005
Engine
1AZFSE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

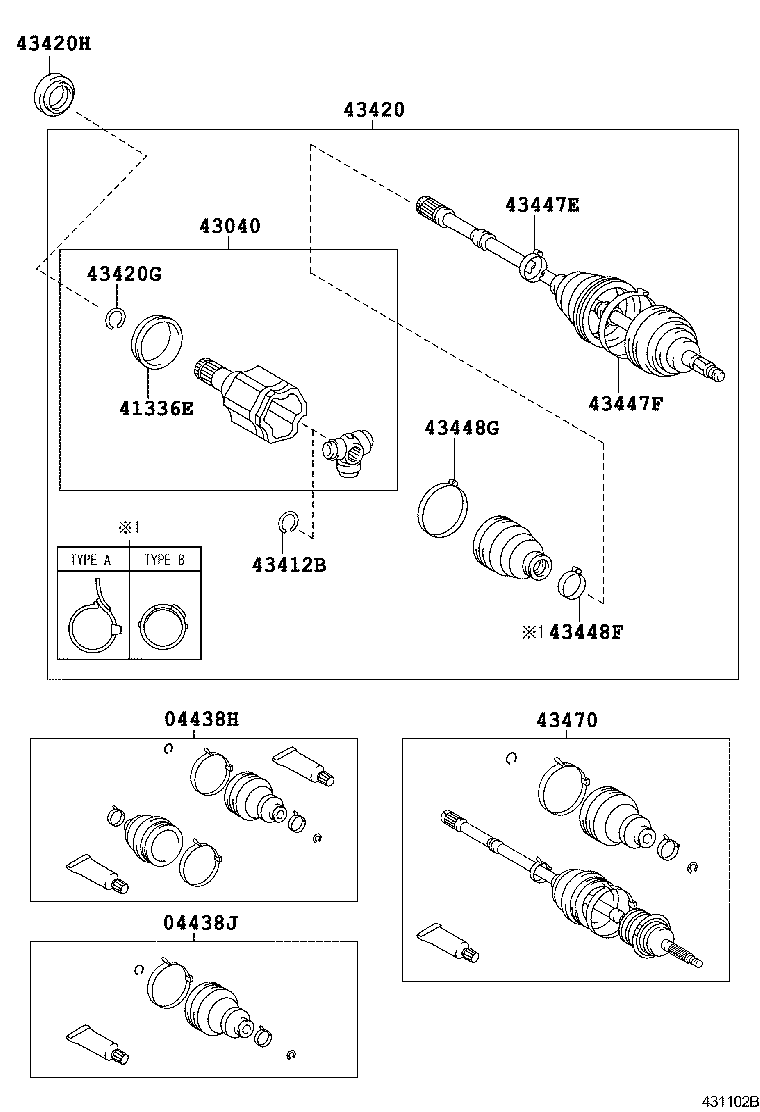

(0209- )AZT24#
Click highlighted areas on diagram
ﾚﾌﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-42102 |
AZT24# |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-42091 |
AZT24# |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-32020 |
AZT24# |
1 | ||
| 43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH | ||||
| 43040-42031 |
AZT24# |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 43425-28010 |
AZT24#,ST246 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-21050 |
AZT24# |
1 | ||
| 43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) | ||||
| 90521-27005 |
AZT24#,ZZT241 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-35047 |
AZT24# |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-20040 |
AZT24#,ST246 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-28020 |
AZT24#,ST246 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01559 |
AZT24#,ST246 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 42345-42010 |
AZT24#,ST246 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-12160 |
AZT24#,ST246,ZZT241 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-49276 |
AZT246 |
1 | ||

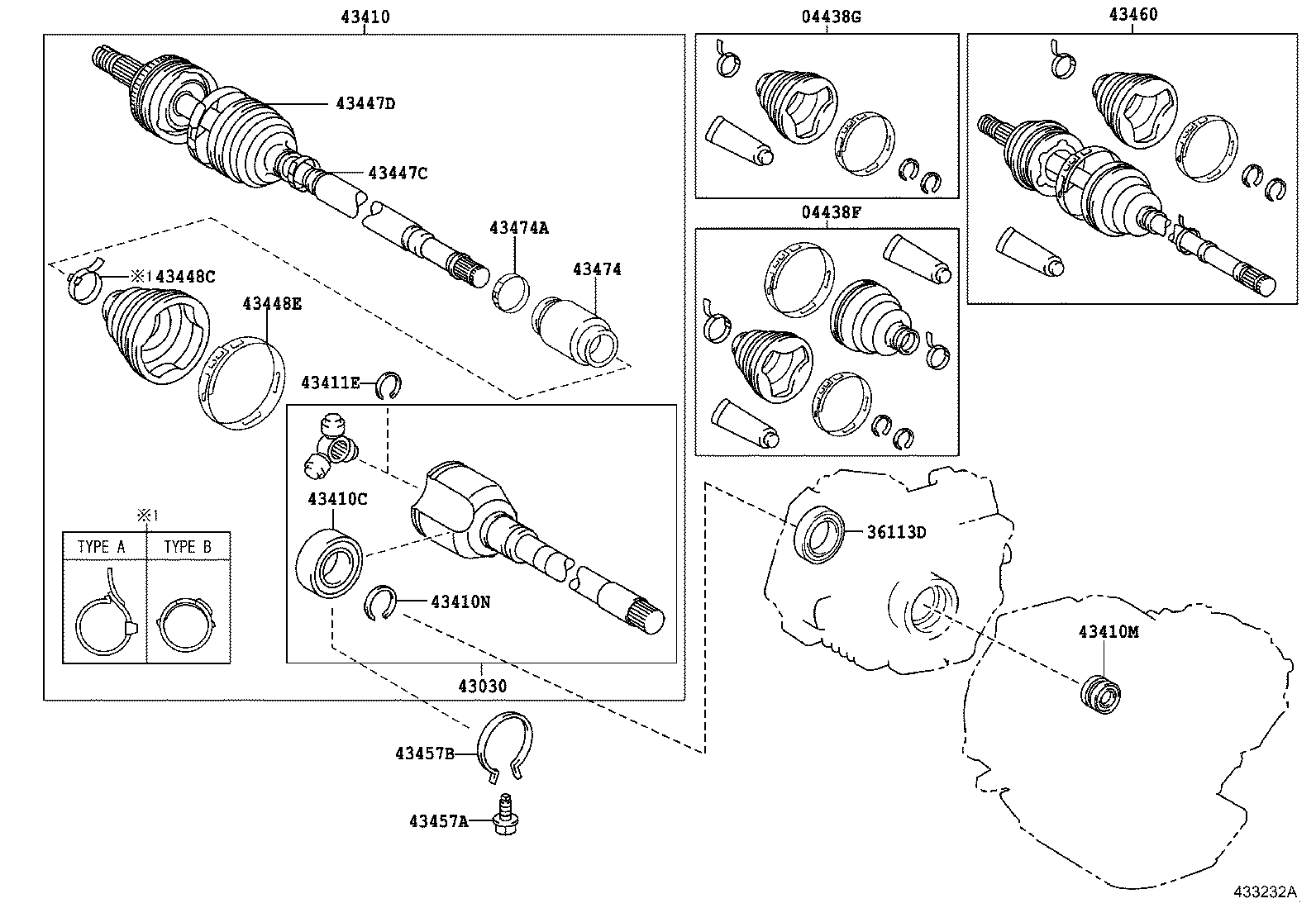

(0209- )AZT246
Click highlighted areas on diagram
ﾗｲﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-42102 |
AZT24# |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-42091 |
AZT24# |
1 | ||
| 36113D - SEAL, OIL (FOR TRANSFER CASE RH) | ||||
| 90311-36006 |
AZT246 |
1 | ||
| 43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH | ||||
| 43030-28031 |
AZT246 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-21080 |
AZT246 |
1 | ||
| 43410C - BEARING (FOR FRONT DRIVE SHAFT) | ||||
| 90363-36006 |
AZT246 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90316-28003 |
AZT246 |
1 | ||
| 43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH) | ||||
| 90520-33008 |
AZT24#,ZZT241 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-28010 |
AZT24#,ST246 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-20040 |
AZT24#,ST246 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-28020 |
AZT24#,ST246 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01559 |
AZT24#,ST246 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 42345-42010 |
AZT24#,ST246 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-12160 |
AZT24#,ST246,ZZT241 |
1 | ||
| 43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1) | ||||
| 90901-19060 |
AZT246 *10−1.25PX28.5−14.8 |
1 | ||
| 43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET) | ||||
| 90521-75002 |
AZT246 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-29486 |
AZT246 |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-48011 |
AZT246,ST246 右側 |
1 | ||
| 43474-48020 |
AZT246,ST246 右側 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-14010 |
AZT246,ST246 |
1 | ||
