AZT246W-DWPGH (2002)

Toyota Caldina

Production Sep 2002 - Jan 2005
Engine 1AZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )

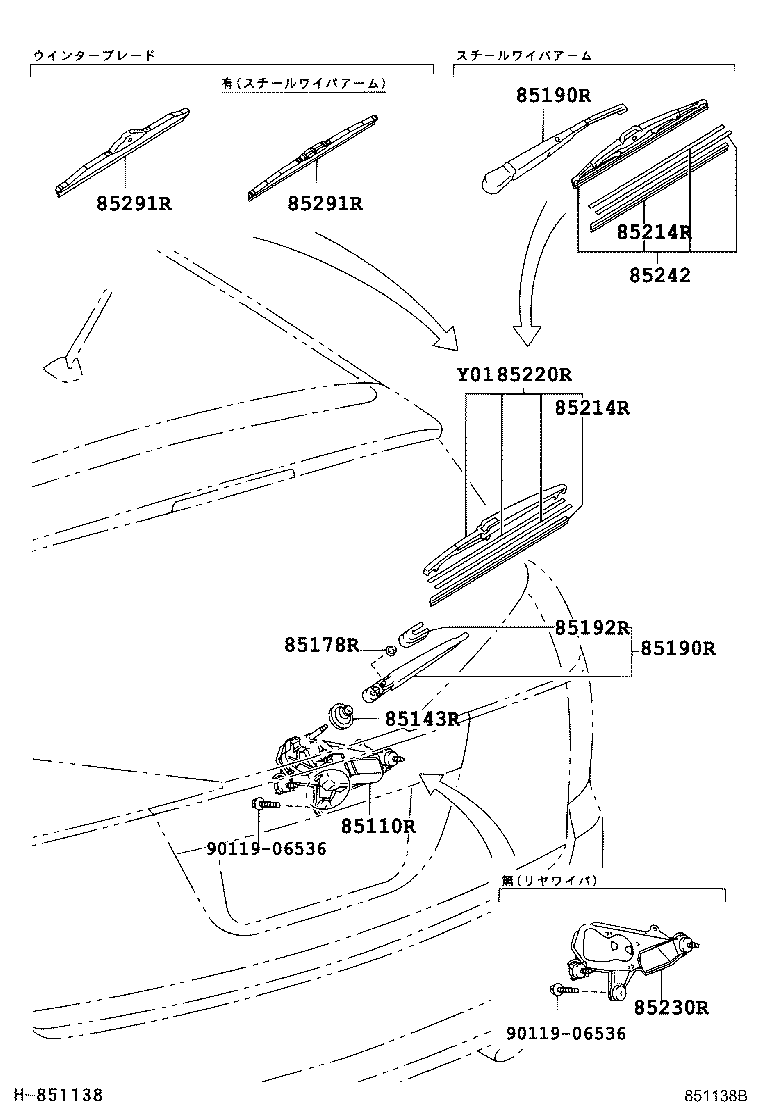

Click highlighted areas on diagram

diagram 85110R 85143R 85178R 85190R 85190R 85192R 85214R 85214R 85220R 85230R 85242 85291R 85291R 9011906536 9011906536
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-21050

AZT24#,ST246,ZZT241..GT4,Z,ZT

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-42030

AZT24#,ST246,ZZT241..GT4,Z,ZT

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

AZT24#,ST246,ZZT241..GT4,Z,ZT

 1
85190R - ARM ASSY, REAR WIPER
85241-42050

AZT24#,ST246,ZZT241..GT4,Z,ZT

寒冷地仕様,ｱﾘ(ｽﾁｰﾙﾜｲﾊﾟｱｰﾑ)

 1
85241-42040

AZT24#,ST246,ZZT241..GT4,Z,ZT

 1
85190R - ARM ASSY, REAR WIPER
85241-42050

AZT24#,ST246,ZZT241..GT4,Z,ZT

寒冷地仕様,ｱﾘ(ｽﾁｰﾙﾜｲﾊﾟｱｰﾑ)

 1
85241-42040

AZT24#,ST246,ZZT241..GT4,Z,ZT

 1
85192R - COVER, REAR WIPER ARM
85292-28030

AZT24#,ST246,ZZT241..GT4,Z,ZT

 1
85214R - RUBBER, REAR WIPER
85214-42040

AZT24#,ST246,ZZT241..GT4,Z,ZT

 1
85214-31010

AZT24#,ST246,ZZT241..GT4,Z,ZT

寒冷地仕様

 1
85214R - RUBBER, REAR WIPER
85214-42040

AZT24#,ST246,ZZT241..GT4,Z,ZT

 1
85214-31010

AZT24#,ST246,ZZT241..GT4,Z,ZT

寒冷地仕様

 1
85220R - BLADE ASSY, REAR WIPER
85242-42020

AZT24#,ST246,ZZT241..GT4,Z,ZT

 1
85242 - BLADE, RR WIPER
85242-31011

AZT24#,ST246,ZZT241..GT4,Z,ZT

寒冷地仕様

 1
85291R - BLADE,REAR WIPER, WINTER
85291-33020

AZT24#,ST246,ZZT241..GT4,Z,ZT

寒冷地仕様

 1
85291-42020

AZT24#,ST246,ZZT241..GT4,Z,ZT

寒冷地仕様

 2
85291-42020

AZT24#,ST246,ZZT241..GT4,Z,ZT

有り(樹脂 ﾜｲﾊﾟ ｱｰﾑ)

 2
85291-33020

AZT24#,ST246,ZZT241..GT4,Z,ZT

有り(ｽﾁｰﾙ ﾜｲﾊﾟ ｱｰﾑ)

 1
85291R - BLADE,REAR WIPER, WINTER
85291-33020

AZT24#,ST246,ZZT241..GT4,Z,ZT

寒冷地仕様

 1
85291-42020

AZT24#,ST246,ZZT241..GT4,Z,ZT

寒冷地仕様

 2
85291-42020

AZT24#,ST246,ZZT241..GT4,Z,ZT

有り(樹脂 ﾜｲﾊﾟ ｱｰﾑ)

 2
85291-33020

AZT24#,ST246,ZZT241..GT4,Z,ZT

有り(ｽﾁｰﾙ ﾜｲﾊﾟ ｱｰﾑ)

 1
Common parts
90119-06536
