AZT246W-DWPGH (2002)

Toyota Caldina

Production Sep 2002 - Jan 2005
Engine 1AZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209-0501)

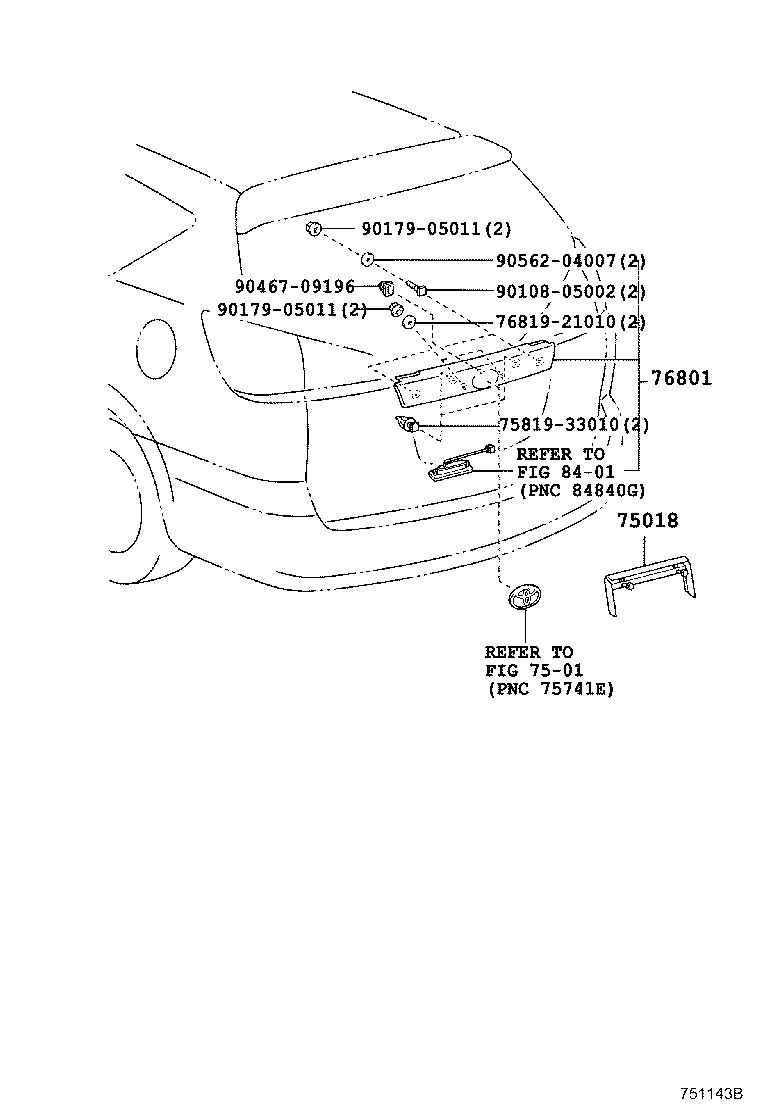

Click highlighted areas on diagram

diagram 7501 75018 7581933010 76801 7681921010 8401 9010805002 9017905011 9017905011 9046709196 9056204007
Part # Description Qty Price
75018 - FRAME SUB-ASSY, REAR LICENSE PLATE
75010-20030

AZT24#,ST246,ZZT241

ﾗｲｾﾝｽﾌﾟﾚｰﾄﾌﾞﾗｹｯﾄ−字光式ﾌﾞﾗｹｯﾄ対応

 1
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-21040B0

AZT24#,ST246,ZZT241

ｵｰﾃﾞｨｵ−ﾅﾋﾞ/TV/AM/FM/MD/CDﾁｪﾝｼﾞｬｰ 7ｽﾋﾟｰｶ,SILVER M.M.,1E7

 1
76801-21040A0

AZT24#,ST246,ZZT241

ｵｰﾃﾞｨｵ−ﾅﾋﾞ/TV/AM/FM/MD/CDﾁｪﾝｼﾞｬｰ 7ｽﾋﾟｰｶ,SUPER WHITE 2,040

 1
76801-21040E0

AZT24#,ST246,ZZT241

ｵｰﾃﾞｨｵ−ﾅﾋﾞ/TV/AM/FM/MD/CDﾁｪﾝｼﾞｬｰ 7ｽﾋﾟｰｶ,ORANGE ME.,4R1

 1
76801-21030A0

AZT24#,ST246,ZZT241

SUPER WHITE 2,040

 1
76801-21040B1

AZT24#,ST246,ZZT241

ｵｰﾃﾞｨｵ−ﾅﾋﾞ/TV/AM/FM/MD/CDﾁｪﾝｼﾞｬｰ 7ｽﾋﾟｰｶ,DK.GRAY M.M.,1E9

 1
76801-21040C0

AZT24#,ST246,ZZT241

ｵｰﾃﾞｨｵ−ﾅﾋﾞ/TV/AM/FM/MD/CDﾁｪﾝｼﾞｬｰ 7ｽﾋﾟｰｶ,BLACK MC.,209

 1
76801-21030B0

AZT24#,ST246,ZZT241

SILVER M.M.,1E7

 1
76801-21030C0

AZT24#,ST246,ZZT241

BLACK MC.,209

 1
76801-21040A1

AZT24#,ST246,ZZT241

ｵｰﾃﾞｨｵ−ﾅﾋﾞ/TV/AM/FM/MD/CDﾁｪﾝｼﾞｬｰ 7ｽﾋﾟｰｶ,WHITE PEARL CS.,070

 1
76801-21040J0

AZT24#,ST246,ZZT241

ｵｰﾃﾞｨｵ−ﾅﾋﾞ/TV/AM/FM/MD/CDﾁｪﾝｼﾞｬｰ 7ｽﾋﾟｰｶ,BLUE M.M.,8Q1

 1
76801-21030A1

AZT24#,ST246,ZZT241

WHITE PEARL CS.,070

 1
76801-21040A0

AZT24#,ST246,ZZT241

ｵｰﾃﾞｨｵ−ﾅﾋﾞ & G−BOOK,SUPER WHITE 2,040

 1
76801-21030J0

AZT24#,ST246,ZZT241

BLUE M.M.,8Q1

 1
76801-21040B0

AZT24#,ST246,ZZT241

ｵｰﾃﾞｨｵ−ﾅﾋﾞ & G−BOOK,SILVER M.M.,1E7

 1
76801-21040J0

AZT24#,ST246,ZZT241

ｵｰﾃﾞｨｵ−ﾅﾋﾞ & G−BOOK,BLUE M.M.,8Q1

 1
76801-21030E0

AZT24#,ST246,ZZT241

ORANGE ME.,4R1

 1
76801-21040D0

AZT24#,ST246,ZZT241

ｵｰﾃﾞｨｵ−ﾅﾋﾞ & G−BOOK,SUPER RED 5,3P0

 1
76801-21030B1

AZT24#,ST246,ZZT241

DK.GRAY M.M.,1E9

 1
76801-21040A1

AZT24#,ST246,ZZT241

ｵｰﾃﾞｨｵ−ﾅﾋﾞ & G−BOOK,WHITE PEARL CS.,070

 1
76801-21030D0

AZT24#,ST246,ZZT241

SUPER RED 5,3P0

 1
76801-21040C0

AZT24#,ST246,ZZT241

ｵｰﾃﾞｨｵ−ﾅﾋﾞ & G−BOOK,BLACK MC.,209

 1
Common parts
75819-33010
76819-21010
90108-05002
90179-05011
90467-09196
90562-04007
Linked diagrams
7501
8401
