AZT246W-DWPGH (2002)
Toyota Caldina
(0209- )

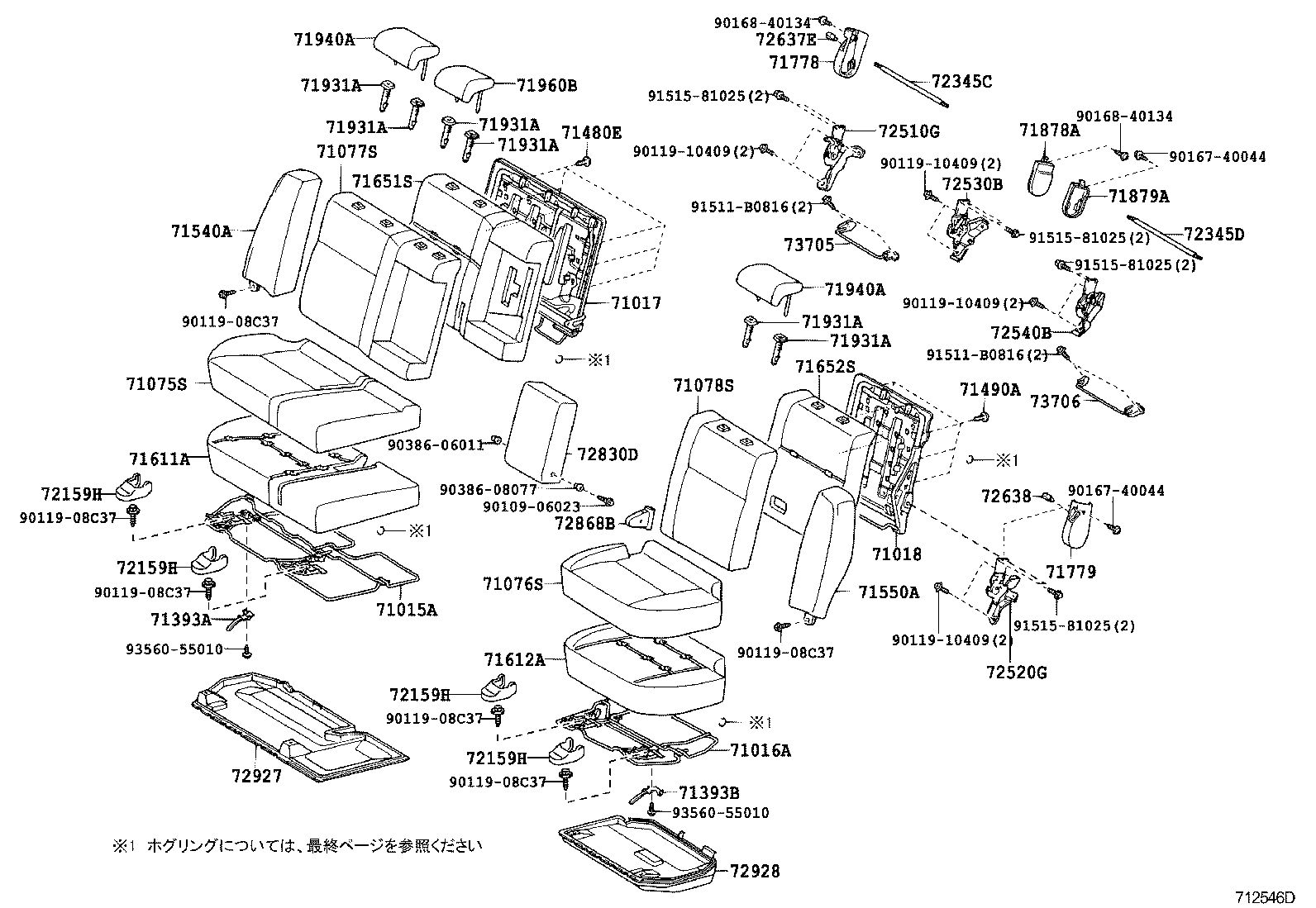

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-21030 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ |
1 | ||
| 71015-21030 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ |
1 | ||
| 71015-21030 |
AZT24#,ST246,ZZT241 |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-21020 |
AZT24#,ST246,ZZT241 |
1 | ||
| 71016-21020 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ |
1 | ||
| 71016-21020 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-21050 |
AZT24#,ST246,ZZT241 |
1 | ||
| 71017-21050 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ |
1 | ||
| 71017-21050 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-21040 |
AZT24#,ST246,ZZT241 |
1 | ||
| 71018-21040 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ |
1 | ||
| 71018-21040 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-21370C0 |
AZT24#,ST246..GT4,ZT BLACK,TRIM2# |
1 | ||
| 71075-21380C0 |
AZT24#,ZZT241..X,Z BLACK,TRIM2# |
1 | ||
| 71075-21370C0 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
1 | ||
| 71075-21400C0 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2# |
1 | ||
| 71075-21420C1 |
AZT24#,ZZT241..X,Z BLACK,TRIM2# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-21160C0 |
AZT24#,ST246..GT4,ZT BLACK,TRIM2# |
1 | ||
| 71076-21170 |
AZT24#,ZZT241..X,Z |
1 | ||
| 71076-21160C0 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
1 | ||
| 71076-21200C1 |
AZT24#,ZZT241..X,Z BLACK,TRIM29 |
1 | ||
| 71076-21190C0 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2# |
1 | ||
| 71076-21170C0 |
AZT24#,ZZT241..X,Z BLACK,TRIM2# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-21390C0 |
AZT24#,ZZT241..X,Z BLACK,TRIM2# |
1 | ||
| 71077-21410C0 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2# |
1 | ||
| 71077-21380C0 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
1 | ||
| 71077-21390 |
AZT24#,ZZT241..X,Z |
1 | ||
| 71077-21380C0 |
AZT24#,ST246..GT4,ZT BLACK,TRIM2# |
1 | ||
| 71077-21430C1 |
AZT24#,ZZT241..X,Z BLACK,TRIM2# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-21200C0 |
AZT24#,ZZT241..X,Z BLACK,TRIM2# |
1 | ||
| 71078-21190C0 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
1 | ||
| 71078-21220C0 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2# |
1 | ||
| 71078-21240C1 |
AZT24#,ZZT241..X,Z BLACK,TRIM29 |
1 | ||
| 71078-21190C0 |
AZT24#,ST246..GT4,ZT BLACK,TRIM2# |
1 | ||
| 71078-21200 |
AZT24#,ZZT241..X,Z |
1 | ||
| 71393A - BAND, REAR SEAT CUSHION, RH | ||||
| 71393-21020C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 71393-21020C0 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2# |
1 | ||
| 71393-21020C0 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
1 | ||
| 71393B - BAND, REAR SEAT CUSHION, LH | ||||
| 71393-21030C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 71393-21030C0 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2# |
1 | ||
| 71393-21030C0 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
1 | ||
| 71480E - CLIP, REAR SEAT BACK, RH | ||||
| 90467-06048C0 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
10 | ||
| 90467-06048C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
10 | ||
| 90467-06048C0 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2# |
10 | ||
| 71490A - CLIP, REAR SEAT BACK, LH | ||||
| 90467-06048C0 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2# |
8 | ||
| 90467-06048C0 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
8 | ||
| 90467-06048C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
8 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-21100C0 |
AZT24#,ST246..GT4,ZT BLACK,TRIM2# |
1 | ||
| 71540-21120C0 |
AZT24#,ZZT241..Z BLACK,TRIM2# |
1 | ||
| 71540-21120C0 |
AZT24#,ZZT241..Z BLACK,TRIM29 |
1 | ||
| 71540-21100C0 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
1 | ||
| 71540-21120C1 |
AZT24#,ZZT241..Z ｼﾙﾌｨｰﾄﾞ,BLACK,TRIM29 |
1 | ||
| 71540-21120C2 |
AZT24#,ZZT241..X,Z BLACK,TRIM29 |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-21120C0 |
AZT24#,ZZT241..Z BLACK,TRIM2# |
1 | ||
| 71550-21100C0 |
AZT24#,ST246..GT4,ZT BLACK,TRIM2# |
1 | ||
| 71550-21100C0 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
1 | ||
| 71550-21120C2 |
AZT24#,ZZT241..X,Z BLACK,TRIM29 |
1 | ||
| 71550-21120C1 |
AZT24#,ZZT241..Z ｼﾙﾌｨｰﾄﾞ,BLACK,TRIM29 |
1 | ||
| 71550-21120C0 |
AZT24#,ZZT241..Z BLACK,TRIM29 |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-21070 |
AZT24#,ST246,ZZT241 |
1 | ||
| 71611-21070 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ |
1 | ||
| 71611-21070 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-21070 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ |
1 | ||
| 71612-21070 |
AZT24#,ST246,ZZT241 |
1 | ||
| 71612-21070 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-21100 |
AZT24#,ST246,ZZT241 |
1 | ||
| 71651-21100 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ |
1 | ||
| 71651-21100 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-21090 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ |
1 | ||
| 71652-21090 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ |
1 | ||
| 71652-21090 |
AZT24#,ST246,ZZT241 |
1 | ||
| 71778 - COVER, REAR SEAT SIDE HINGE MALE, RH | ||||
| 71778-63010C0 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
1 | ||
| 71778-63010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 71778-63010C0 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2# |
1 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-63010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 71779-63010C0 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
1 | ||
| 71779-63010C0 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-63010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 71878-63010C0 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
1 | ||
| 71878-63010C0 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2# |
1 | ||
| 71879A - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-63010C0 |
AZT24#,ST246,ZZT241 BLACK,TRIM2# |
1 | ||
| 71879-63010C0 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2# |
1 | ||
| 71879-63010C0 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ無,L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2#,ｾﾝﾀ |
1 | ||
| 71930-47010C0 |
AZT24#,ST246,ZZT241 ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71931-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ D席のみ(Pﾈﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71930-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ D席のみ(Pﾈﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
AZT24#,ST246,ZZT241 ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71930-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ Dﾈのみ(P席ﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ Dﾈのみ(P席ﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
AZT24#,ZZT241..X,Z ﾛｯｸ無,ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
3 | ||
| 71930-47010C0 |
AZT24#,ZZT241..X,Z ﾛｯｸ付,ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
3 | ||
| 71930-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ付,L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2#,ｾﾝﾀ |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ無,L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2#,ｾﾝﾀ |
1 | ||
| 71930-47010C0 |
AZT24#,ST246,ZZT241 ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71931-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ D席のみ(Pﾈﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71930-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ D席のみ(Pﾈﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
AZT24#,ST246,ZZT241 ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71930-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ Dﾈのみ(P席ﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ Dﾈのみ(P席ﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
AZT24#,ZZT241..X,Z ﾛｯｸ無,ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
3 | ||
| 71930-47010C0 |
AZT24#,ZZT241..X,Z ﾛｯｸ付,ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
3 | ||
| 71930-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ付,L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2#,ｾﾝﾀ |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ無,L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2#,ｾﾝﾀ |
1 | ||
| 71930-47010C0 |
AZT24#,ST246,ZZT241 ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71931-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ D席のみ(Pﾈﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71930-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ D席のみ(Pﾈﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
AZT24#,ST246,ZZT241 ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71930-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ Dﾈのみ(P席ﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ Dﾈのみ(P席ﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
AZT24#,ZZT241..X,Z ﾛｯｸ無,ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
3 | ||
| 71930-47010C0 |
AZT24#,ZZT241..X,Z ﾛｯｸ付,ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
3 | ||
| 71930-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ付,L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2#,ｾﾝﾀ |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
AZT24#,ZZT241..X,Z ﾛｯｸ無,ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
3 | ||
| 71931-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ無,L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2#,ｾﾝﾀ |
1 | ||
| 71930-47010C0 |
AZT24#,ST246,ZZT241 ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71931-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ D席のみ(Pﾈﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71930-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ D席のみ(Pﾈﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
AZT24#,ST246,ZZT241 ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71930-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ Dﾈのみ(P席ﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ Dﾈのみ(P席ﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71930-47010C0 |
AZT24#,ZZT241..X,Z ﾛｯｸ付,ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
3 | ||
| 71930-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ付,L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2#,ｾﾝﾀ |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ無,L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2#,ｾﾝﾀ |
1 | ||
| 71930-47010C0 |
AZT24#,ST246,ZZT241 ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71931-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ D席のみ(Pﾈﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71930-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ D席のみ(Pﾈﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
AZT24#,ST246,ZZT241 ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71930-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ Dﾈのみ(P席ﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ Dﾈのみ(P席ﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
AZT24#,ZZT241..X,Z ﾛｯｸ無,ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
3 | ||
| 71930-47010C0 |
AZT24#,ZZT241..X,Z ﾛｯｸ付,ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
3 | ||
| 71930-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ付,L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2#,ｾﾝﾀ |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ無,L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2#,ｾﾝﾀ |
1 | ||
| 71930-47010C0 |
AZT24#,ST246,ZZT241 ﾛｯｸ付,BLACK,TRIM2# |
3 | ||
| 71931-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ D席のみ(Pﾈﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71930-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ D席のみ(Pﾈﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
AZT24#,ST246,ZZT241 ﾛｯｸ無,BLACK,TRIM2# |
3 | ||
| 71930-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ Dﾈのみ(P席ﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ+ｸﾚｰﾝ)&ﾌﾛﾝﾄｼｰﾄ−ﾉｰﾏﾙ Dﾈのみ(P席ﾀﾞﾐｰ),BLACK,TRIM2# |
2 | ||
| 71931-47010C0 |
AZT24#,ZZT241..X,Z ﾛｯｸ無,ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
3 | ||
| 71930-47010C0 |
AZT24#,ZZT241..X,Z ﾛｯｸ付,ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
3 | ||
| 71930-47010C0 |
AZT24#,ZZT241..Z ﾛｯｸ付,L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2#,ｾﾝﾀ |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-21120C0 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM29 |
2 | ||
| 71940-21120C0 |
AZT24#,ZZT241..X,Z BLACK,TRIM29 |
2 | ||
| 71940-21110C0 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
2 | ||
| 71940-21110C0 |
AZT24#,ST246..GT4,ZT BLACK,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-21120C0 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM29 |
2 | ||
| 71940-21120C0 |
AZT24#,ZZT241..X,Z BLACK,TRIM29 |
2 | ||
| 71940-21110C0 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
2 | ||
| 71940-21110C0 |
AZT24#,ST246..GT4,ZT BLACK,TRIM2# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-21050C0 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM29 |
1 | ||
| 71960-21050C0 |
AZT24#,ZZT241..X,Z BLACK,TRIM29 |
1 | ||
| 71960-21040C0 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ,BLACK,TRIM2# |
1 | ||
| 71960-21040C0 |
AZT24#,ST246..GT4,ZT BLACK,TRIM2# |
1 | ||
| 72159H - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-21010 |
AZT24#,ST246,ZZT241 |
4 | ||
| 72159-21020 |
AZT24#,ST246,ZZT241 ﾙｰﾑ ｾﾊﾟﾚｰﾀｰ−有り(ﾊﾟｰﾃｨｼｮﾝﾈｯﾄ) |
2 | ||
| 72159H - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-21010 |
AZT24#,ST246,ZZT241 |
4 | ||
| 72159-21020 |
AZT24#,ST246,ZZT241 ﾙｰﾑ ｾﾊﾟﾚｰﾀｰ−有り(ﾊﾟｰﾃｨｼｮﾝﾈｯﾄ) |
2 | ||
| 72159H - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-21010 |
AZT24#,ST246,ZZT241 |
4 | ||
| 72159-21020 |
AZT24#,ST246,ZZT241 ﾙｰﾑ ｾﾊﾟﾚｰﾀｰ−有り(ﾊﾟｰﾃｨｼｮﾝﾈｯﾄ) |
2 | ||
| 72159H - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-21010 |
AZT24#,ST246,ZZT241 |
4 | ||
| 72159-21020 |
AZT24#,ST246,ZZT241 ﾙｰﾑ ｾﾊﾟﾚｰﾀｰ−有り(ﾊﾟｰﾃｨｼｮﾝﾈｯﾄ) |
2 | ||
| 72345C - PIPE,RECLINING CONNECTING, RH | ||||
| 72345-13050 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ |
1 | ||
| 72345-13050 |
AZT24#,ST246,ZZT241 |
1 | ||
| 72345-13050 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ |
1 | ||
| 72345D - PIPE, RECLINING CONNECTING, LH | ||||
| 72345-13050 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ |
1 | ||
| 72345-13050 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ |
1 | ||
| 72345-13050 |
AZT24#,ST246,ZZT241 |
1 | ||
| 72510G - ADJUSTER ASSY, REAR RECLINING SEAT, OUTER RH | ||||
| 72510-21050 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ |
1 | ||
| 72510-21050 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ |
1 | ||
| 72510-21050 |
AZT24#,ST246,ZZT241 |
1 | ||
| 72520G - ADJUSTER ASSY, REAR RECLINING SEAT, OUTER LH | ||||
| 72520-21050 |
AZT24#,ST246,ZZT241 |
1 | ||
| 72520-21050 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ |
1 | ||
| 72520-21050 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ |
1 | ||
| 72530B - ADJUSTER ASSY, RECLINING SEAT, INNER RH | ||||
| 72530-21020 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ |
1 | ||
| 72530-21020 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ |
1 | ||
| 72530-21020 |
AZT24#,ST246,ZZT241 |
1 | ||
| 72540B - ADJUSTER ASSY, RECLINING SEAT, INNER LH | ||||
| 72540-21020 |
AZT24#,ST246,ZZT241 |
1 | ||
| 72540-21020 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ |
1 | ||
| 72540-21020 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ |
1 | ||
| 72637E - HANDLE, REAR SEAT LOCK, RH | ||||
| 72637-20030C0 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2# |
1 | ||
| 72637-20030C0 |
AZT24#,ZZT241..X,Z BLACK,TRIM2# |
1 | ||
| 72638 - HANDLE, REAR SEAT LOCK, LH | ||||
| 72638-20020C0 |
AZT24#,ZZT241..X,Z BLACK,TRIM2# |
1 | ||
| 72638-20020C0 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ,BLACK,TRIM2# |
1 | ||
| 72830D - ARMREST ASSY, REAR SEAT, RH | ||||
| 72830-21060C0 |
AZT24#,ST246..GT4,ZT BLACK |
1 | ||
| 72830-21070B0 |
AZT24#,ZZT241..X,Z DARK GRAY,TRIM2# |
1 | ||
| 72868B - COVER, CENTER ARMREST HINGE | ||||
| 72868-20050 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ |
1 | ||
| 72868-20050 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ |
1 | ||
| 72868-20050 |
AZT24#,ST246,ZZT241 |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-21010 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ |
1 | ||
| 72927-21010 |
AZT24#,ST246,ZZT241 |
1 | ||
| 72927-21010 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-21010 |
AZT24#,ST246,ZZT241 |
1 | ||
| 72928-21010 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ |
1 | ||
| 72928-21010 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-20010 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ |
1 | ||
| 73705-20010 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ |
1 | ||
| 73705-20010 |
AZT24#,ST246,ZZT241 |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-20010 |
AZT24#,ZZT241..Z L ｴﾃﾞｲｼｮﾝ |
1 | ||
| 73706-20010 |
AZT24#,ZZT241..X,Z ﾌﾛﾝﾄｼｰﾄ−ｽﾎﾟｰﾂﾀｲﾌﾟ |
1 | ||
| 73706-20010 |
AZT24#,ST246,ZZT241 |
1 | ||
| Common parts | ||||
| 90109-06023 | ||||
| 90119-08C37 | ||||
| 90119-10409 | ||||
| 90167-40044 | ||||
| 90168-40134 | ||||
| 90386-06011 | ||||
| 90386-08077 | ||||
| 91511-B0816 | ||||
| 91515-81025 | ||||
| 93560-55010 | ||||
(0209- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
