AZT241W-DWPVH (2002)

Toyota Caldina

Production Sep 2002 - Jan 2005
Engine 1AZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )

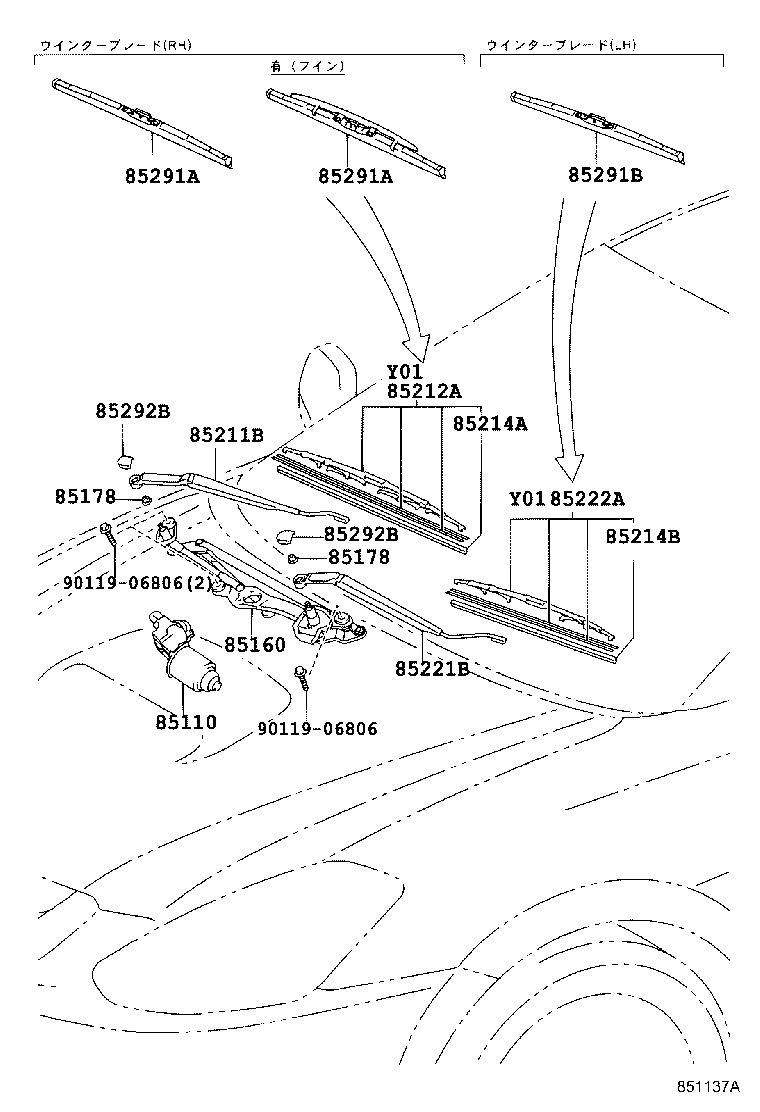

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291A 85291B 85292B 85292B 9011906806 9011906806
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-21070

AZT24#,ST246,ZZT241

寒冷地仕様

 1
85110-21060

AZT24#,ST246,ZZT241

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-21050

AZT24#,ST246,ZZT241

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-10223

AZT24#,ST246,ZZT241

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90179-10223

AZT24#,ST246,ZZT241

 2
85211B - ARM, FRONT WIPER, RH
85211-21020

AZT24#,ST246,ZZT241

 1
85212A - BLADE, FR WIPER, RH
85212-21010

AZT24#,ST246,ZZT241

 1
85214A - RUBBER, WIPER, RH
85214-50120

AZT24#,ST246,ZZT241

 1
85214-50100

AZT24#,ST246,ZZT241

 1
85214B - RUBBER, WIPER, LH
85214-50130

AZT24#,ST246,ZZT241

 1
85214-50060

AZT24#,ST246,ZZT241

 1
85221B - ARM, FRONT WIPER, LH
85221-21020

AZT24#,ST246,ZZT241

 1
85222A - BLADE, FR WIPER, LH
85222-58020

AZT24#,ST246,ZZT241

 1
85222-13040

AZT24#,ST246,ZZT241

 1
85222-21020

AZT24#,ST246,ZZT241

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-24090

AZT24#,ST246,ZZT241

 1
85291-24090

AZT24#,ST246,ZZT241

寒冷地仕様

 1
85291-24100

AZT24#,ST246,ZZT241

寒冷地仕様

 1
85291-24100

AZT24#,ST246,ZZT241

有り(ﾌｨﾝ)

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-24090

AZT24#,ST246,ZZT241

 1
85291-24090

AZT24#,ST246,ZZT241

寒冷地仕様

 1
85291-24100

AZT24#,ST246,ZZT241

寒冷地仕様

 1
85291-24100

AZT24#,ST246,ZZT241

有り(ﾌｨﾝ)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-44080

AZT24#,ST246,ZZT241

寒冷地仕様

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

AZT24#,ST246,ZZT241

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

AZT24#,ST246,ZZT241

 2
Common parts
90119-06806
