AZT241W-DWPVH (2002)

Toyota Caldina

Production Sep 2002 - Jan 2005
Engine 1AZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )

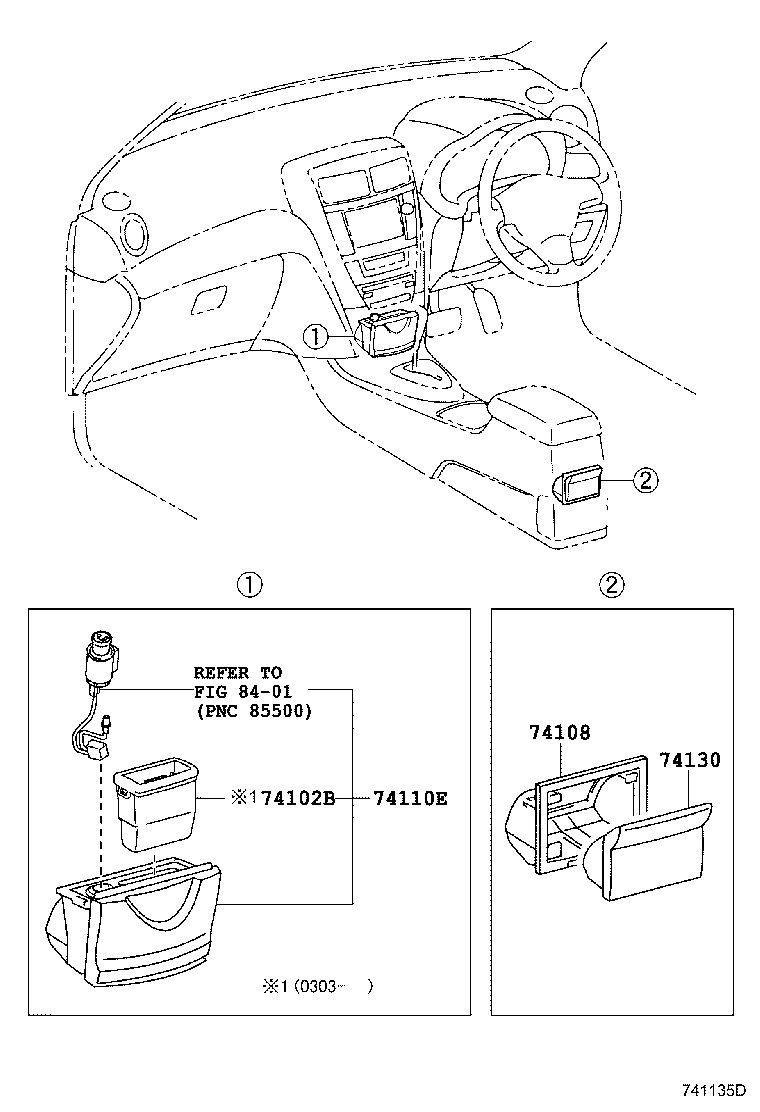

Click highlighted areas on diagram

diagram 74102B 74108 74110E 74130 8401
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-21020

AZT24#,ST246,ZZT241

 1
74108 - RETAINER SUB-ASSY, REAR ASH RECEPTACLE
74135-20090

AZT24#,ST246,ZZT241

 1
74110E - RECEPTACLE ASSY, FRONT ASH
74110-21050

AZT24#,ST246..GT4,ZT

ﾌﾞﾙｰ

 1
74110-21040

AZT24#,ZZT241..X,Z

ｼﾙﾊﾞｰ

 1
74110-21070

AZT24#,ST246..GT4,ZT

ｼﾙﾊﾞｰ

 1
74110-21060

AZT24#,ZZT241..Z

L ｴﾃﾞｲｼｮﾝ,黒木目

 1
74130 - RECEPTACLE ASSY, REAR ASH
74109-20100C0

AZT24#,ST246,ZZT241

BLACK,TRIM2#

 1
Linked diagrams
8401
