AZT241W-DWPVH (2002)

Toyota Caldina

Production Sep 2002 - Jan 2005
Engine 1AZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0209- )AZT24#,ZZT241

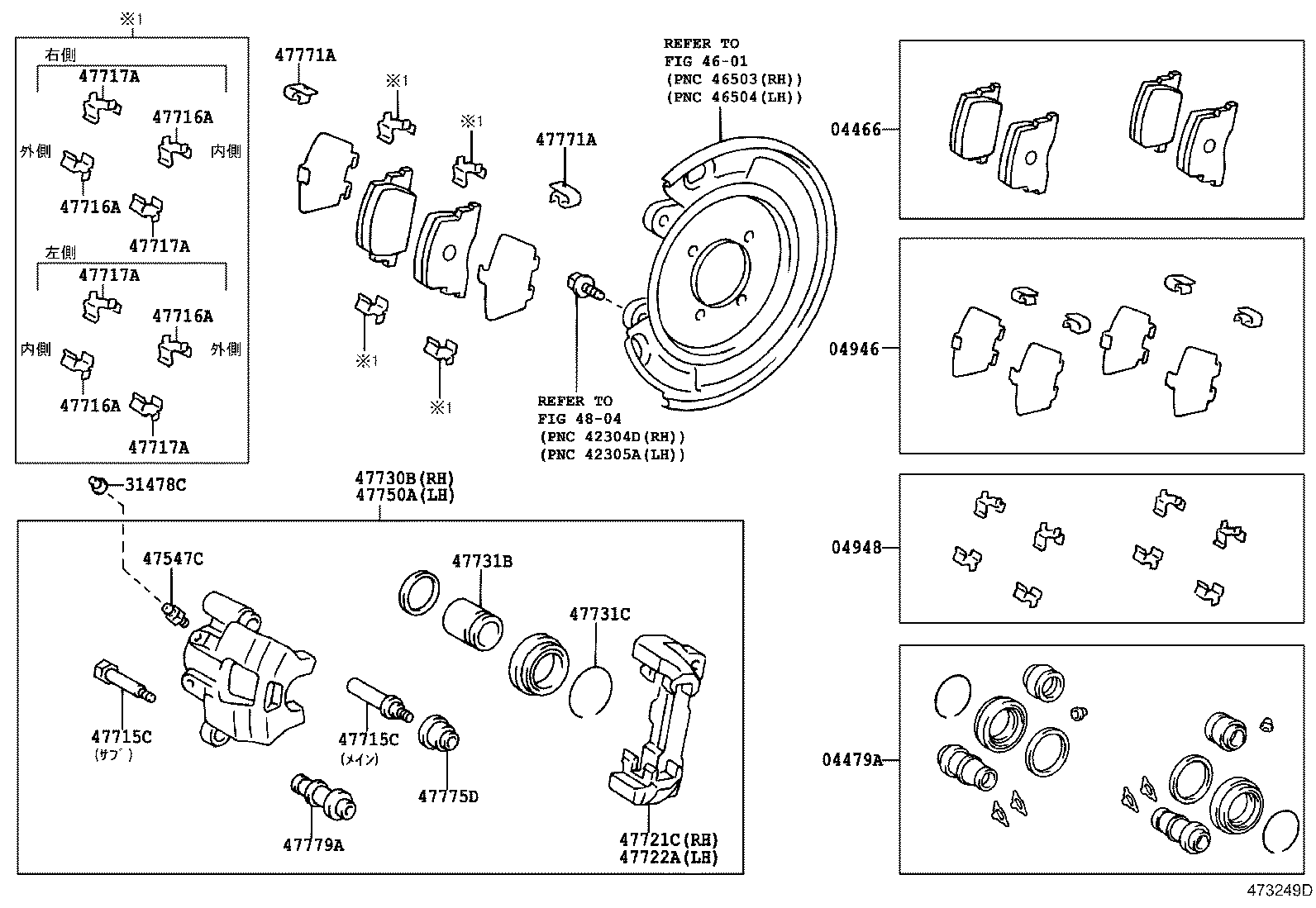

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 4601 47547C 47715C 47715C 47716A 47716A 47716A 47716A 47717A 47717A 47717A 47717A 47721C 47722A 47730B 47731B 47731C 47750A 47771A 47771A 47775D 47779A 4804
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-32040

AZT24#,ZZT241

ﾏｰｸ SUMITOMO PS549

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-33110

AZT24#,ZZT241

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-32080

AZT24#,ZZT241

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-32040

AZT24#,ZZT241

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-30010

AZT24#,ST246,ZZT241

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47547-20010

AZT24#,ST246,ZZT241

 2
47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47715-32030

AZT24#,ST246,ZZT241

ﾒｲﾝ

 2
47715-32020

AZT24#,ST246,ZZT241

ｻﾌﾞ

 2
47715C - PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)
47715-32030

AZT24#,ST246,ZZT241

ﾒｲﾝ

 2
47715-32020

AZT24#,ST246,ZZT241

ｻﾌﾞ

 2
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-32060

AZT24#,ZZT241

 4
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-32060

AZT24#,ZZT241

 4
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-32060

AZT24#,ZZT241

 4
47716A - PLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47716-32060

AZT24#,ZZT241

 4
47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47717-32060

AZT24#,ZZT241

 4
47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47717-32060

AZT24#,ZZT241

 4
47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47717-32060

AZT24#,ZZT241

 4
47717A - PLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)
47717-32060

AZT24#,ZZT241

 4
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47721-32150

AZT24#,ZZT241

 1
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47722-32150

AZT24#,ZZT241

 1
47730B - CYLINDER ASSY, REAR DISC BRAKE, RH
47730-21030

AZT24#,ZZT241

 1
47731B - PISTON, REAR DISC BRAKE
47731-33040

AZT24#,ZZT241

 2
47731C - RING, SET(FOR REAR DISC BRAKE PISTON)
90522-43003

AZT24#,ZZT241

 2
47750A - CYLINDER ASSY, DISC BRAKE, REAR LH
47750-21030

AZT24#,ZZT241

 1
47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47771-32030

AZT24#,ZZT241

 2
47771A - PLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47771-32030

AZT24#,ZZT241

 2
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47775-32050

AZT24#,ST246,ZZT241

 2
47779A - BUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47779-32030

AZT24#,ST246,ZZT241

 2
Linked diagrams
4601
4804
